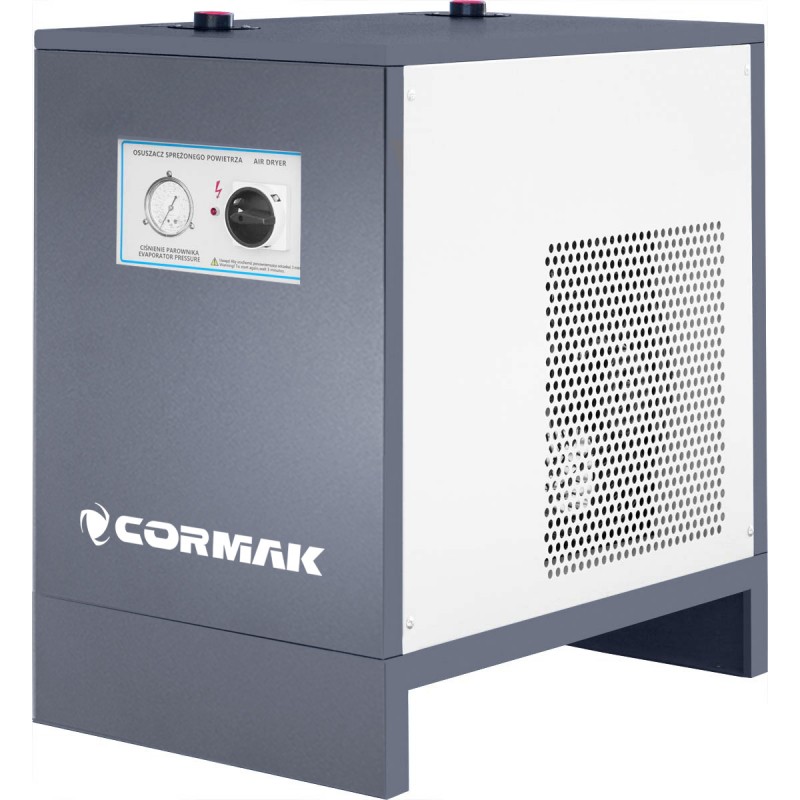

Main advantages of the CORMAK air dryer
- Advanced refrigeration system — a two-stage cooling process down to the dew point ensures effective separation of moisture and oil particles.
- Stable operation up to 10 bar — suitable for standard industrial compressed air systems.
- High efficiency — up to 3800 L/min, providing excellent performance for medium and large air installations.
- Energy-efficient design — the variable-speed fan reduces power consumption to just 0.9 kW.
- Automatic condensate drain valve — ensures reliable condensate removal without operator supervision.
- Compact size and easy installation — ideal for both new and existing pneumatic systems.
Design and technology
The refrigeration air dryer has been engineered for maximum efficiency and durability. Its main components include:
1. Air-to-air heat exchanger
In the first stage, incoming air passes through a heat exchanger where it is pre-cooled by the colder outgoing air from the evaporator. The counterflow system increases energy efficiency across the entire process.
2. Refrigeration evaporator
In the second stage, compressed air enters the evaporator, where it is cooled to a dew point temperature of 3°C. This causes condensation of water vapour and oil mist contained in the air.
3. Condensate separator
After cooling, the air–condensate mixture flows through a high-efficiency separator, where condensate is removed automatically and reliably.
4. Fan speed control system
The variable-speed fan technology adjusts cooling performance to current operating conditions, reducing energy consumption and extending component life.
Precision and performance
Thanks to refrigeration technology, the CORMAK air dryer efficiently removes water and oil, protecting pneumatic systems from corrosion, actuator damage and tool failures. The constant dew point temperature ensures consistent air quality and high system reliability.
Applications
The CORMAK air dryer is ideal for a wide range of industrial sectors where clean and dry air is critical for machine operation and product quality. Typical applications include:
- Mechanical workshops
- Production plants
- Food industry (with appropriate filtration)
- Electronics manufacturing
- Industrial automation
- Paint booths and finishing systems
- Pneumatic CNC machines
Equipment
- Automatic condensate drain valve
- Built-in water and oil separator
- Variable-speed fan — automatic adjustment to working conditions
- Electronic control system — ensures stable operation
- Compact and durable industrial housing
Technical specifications
| Parameter | Value |
|---|
| Inlet/outlet pipe diameter (BSP) |
1 1/2" |
| Maximum working pressure |
10 bar |
| Maximum inlet air temperature |
≤ 38°C |
| Dew point temperature |
3°C |
| Air flow capacity |
3800 L/min |
| Power consumption |
0.9 kW |
| Power supply voltage |
230 V |
| Dimensions (L × W × H) |
850 × 480 × 480 mm |
| Weight |
95 kg |
| Refrigerant type and quantity |
R410a, 650 g |
Choose professional air treatment
By choosing the CORMAK refrigeration air dryer, you invest in the reliability and efficiency of your pneumatic system. This device is an essential part of any professional compressed air installation — especially where high air purity and corrosion protection are crucial for maintaining productivity.
Eliminate moisture-related downtime — choose the CORMAK air dryer and take full control of your air quality!
Contact us and order a model tailored to your needs!
