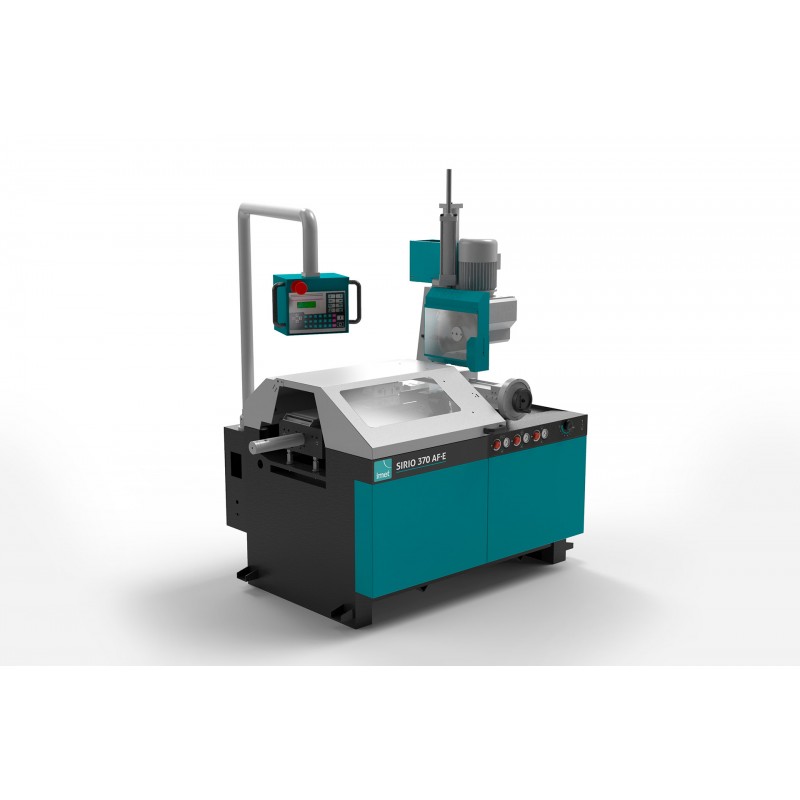

Machine description:

• All SIRIO circular saws have a rigid, solid structure with a dovetail groove, which provides high stability during cutting, reducing vibrations and jamming, which allows you to save the blade and achieve the highest precision and cutting accuracy. The SIRIO AF-E also has a hydraulic control of the head lowering speed.

• The SIRIO 370 AF-E uses a manual selection system to set one cutting length at a time. The manual selector has a knob and a digital readout.

• The feeder has a pneumatic cylinder with a maximum single stroke of 520 mm and a minimum cutting length of 4 mm, with a minimum cutting length of 170 mm. It is possible to select the number of cycles (1-9999) and the number of feed repetitions using the keyboard. Manual cutting length positioning with digital readout.

• The feeder provides a better support roller to move and support the bars on the same plane.

• The user can control and manage all the machine settings from the panel: rapid blade feed to the material, first and last cutting point, blade life control, rotation speed, cycle time, power consumption and total number of cuts and pieces.

• Clamping vice on adjustable guides, sliding on the work table with a quick locking system managed manually.

• Perfect positioning and high cutting precision ensured by the adjustable angle setting system at 0° and 45° with scale angular and adjustable length stop.

Cutting ranges:
