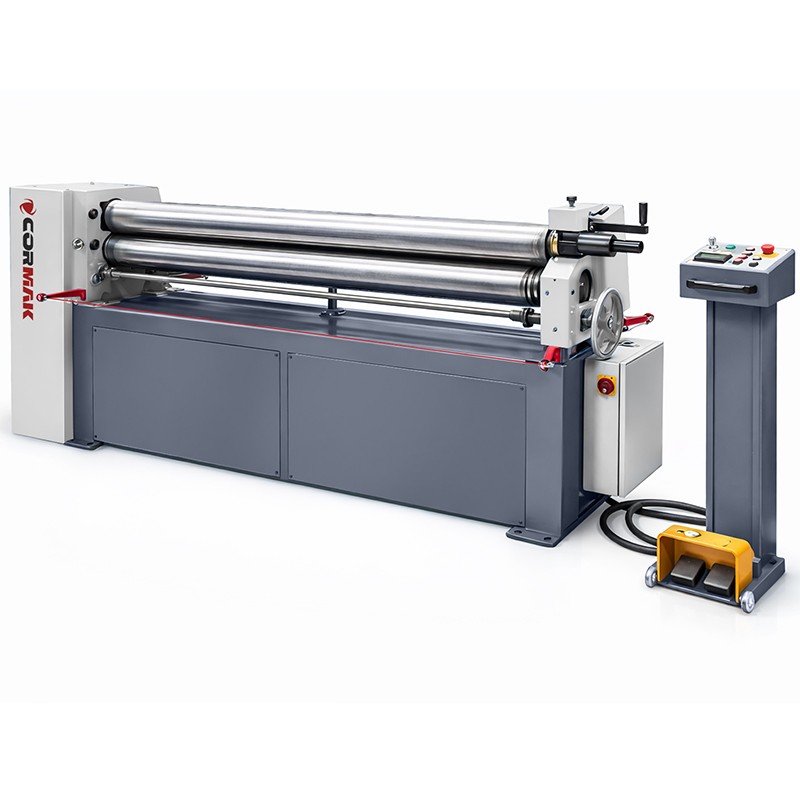

Motorised Sheet Metal Rolling Machine CORMAK RM2050x150

Sheet metal rolling machine CORMAK RM 2050x4 is a professional, three-roll machine designed for precise rolling of steel sheets up to 2050 mm in length and up to 4.0 mm in thickness (S235JR+AR). This model combines a stable construction with an efficient electric drive, ensuring process repeatability and high bending quality in production conditions.

The machine has been designed for metalworking shops, steel structure manufacturing and companies producing cylindrical and conical elements. Thanks to solid rolls of large diameter and an independent rear roll drive, the rolling machine guarantees stable operation even under maximum load.

Why is the CORMAK RM 2050/150 sheet metal rolling machine the right choice for batch and single production?

Sheet metal rolling machines used in industry must ensure not only an appropriate working range, but also structural rigidity and repeatability of parameters. The MRC 2050x4 model meets these requirements thanks to its well-thought-out design and carefully selected components.

• Working length 2050 mm – processing of sheets in standard industrial formats.
• Maximum thickness 4.0 mm (S235JR+AR) – efficient operation with typical structural steel.
• Pre-bending capacity 3.0 mm – reduction of the flat section at the beginning of the sheet.
• Roll diameter 150 mm – high rigidity and bending process stability.
• Minimum bending diameter 230 mm – capability to produce compact cylinders.
• Electric drive 2.2 kW + 1.5 kW – smooth and even operation without overload.

Construction and technology

Stable supporting structure

The machine body with a weight of approx. 1680 kg ensures adequate rigidity during rolling. This reduces vibration and directly affects the accuracy of the bending radius.

Working roll system

The machine is equipped with three precision-made rolls with a diameter of 150 mm. The upper roll is tilting, which facilitates removal of the finished workpiece. Adjustment of the upper and rear rolls is manual using a handwheel, allowing precise pressure setting.

Drive and control

The main motor with a power of 2.2 kW and an additional rear roll drive of 1.5 kW provide stable torque at a speed of 6 rpm. A mobile foot pedal enables left and right rotation control, increasing operator ergonomics.

Precision and performance

The large roll diameter and appropriately selected rotational speed allow controlled material forming without edge waviness. Cone bending capability (device included as standard) extends the machine’s range of applications to non-standard components.

Three grooves for wire bending in the lower and rear rolls with a limiter enable additional processing of round profiles, increasing the machine’s functionality in daily production.

Applications

• production of tanks, pipes and cylindrical casings,
• manufacture of ventilation and chimney components,
• steel structure workshops,
• metalworking companies and production workshops,
• short and medium production runs.

Standard equipment

• tilting upper roll,
• cone bending device,
• mobile foot pedal (left/right),
• 3 wire bending grooves with limiter,
• manual adjustment of upper and rear rolls.

Technical specifications

Sheet metal rolling machine CORMAK RM 2050x150 is a solution for companies expecting a stable structure, precise operating parameters and repeatable bending results. Contact us to receive a detailed offer and select a configuration tailored to your production.
