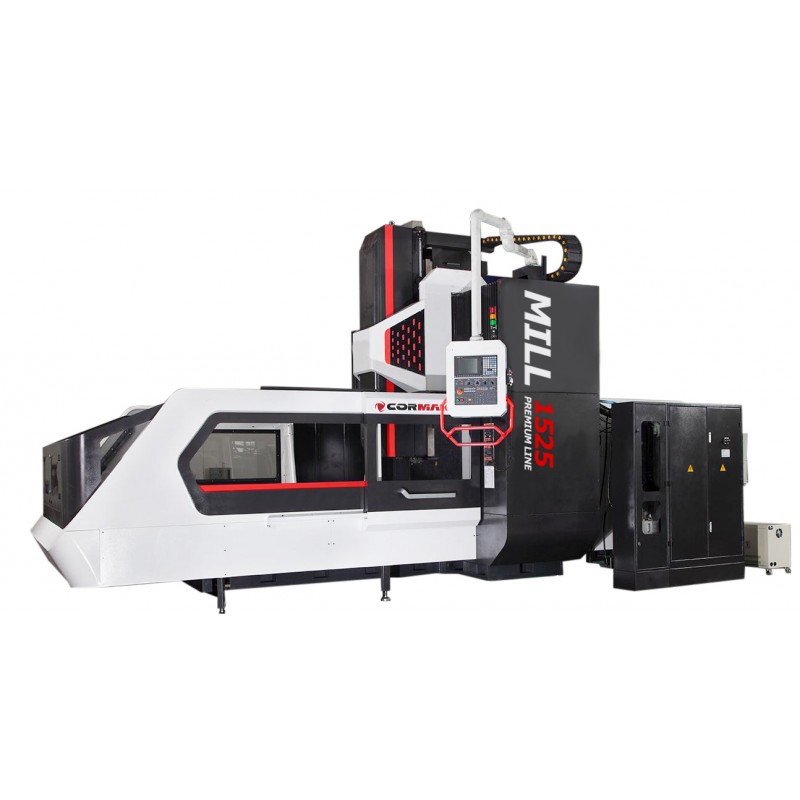

MILL 1525 Gantry Machining Centre – performance and precision in large-scale machining

The CORMAK MILL 1525 Gantry Machining Centre is an advanced CNC machine designed for precise machining of large metal components in demanding industrial environments. Thanks to its solid gantry construction, modern CNC control and large working area, this metal machining centre ensures unmatched efficiency and reliability.

Main advantages of the MILL 1525 Gantry Machining Centre

The MILL 1525 machining centre combines a spacious working area, advanced technology and a robust structure, which translates into significant benefits for the user. Key features include:

• Large working area: Table size 2500x1500 mm and travel range 2700x1700x1000 mm allow machining of large and heavy parts up to 6000 kg.
• High precision: Positioning accuracy ±0.005 mm and repeatability 0.003 mm (JIS) ensure excellent surface quality.
• Performance: Spindle speed 30–3200 rpm and power 15/18.5 kW enable efficient machining of hard materials such as steel and titanium alloys.
• Structural stability: A heavy-duty 25,000 kg frame with 1750 mm column spacing minimises vibration and ensures rigidity during operation.
• Versatility: Option to add a 4th axis and through-spindle cooling (20/40 bar) increases flexibility for complex parts.
• Easy operation: Advanced Siemens or Fanuc CNC control systems allow intuitive programming and full CAD/CAM compatibility.

The CORMAK MILL 1525 CNC machining centre is an excellent solution for production plants specialising in large-scale machining, where precision and productivity are crucial.

Design and technology of the MILL 1525 Gantry Machining Centre

The MILL 1525 machining centre is designed for maximum durability and efficiency in large workpiece machining. Key components include:

Gantry construction and table

The rigid gantry structure made of high-quality cast iron ensures perfect stiffness and vibration damping. The table 2500x1500 mm with T-slots (7-28-160 mm) and a maximum load of 6000 kg allows machining of heavy parts.

Spindle and drive

The spindle with 15/18.5 kW power and 30–3200 rpm (BT50 taper) ensures high cutting efficiency. Optional through-spindle cooling (20/40 bar) improves machining of hard materials.

Guideways and drives

Linear guideways and Siemens servo drives provide smooth motion on the X, Y and Z axes (2700x1700x1000 mm travel) with rapid feed of 8/12/8 m/min, reducing positioning errors.

Control system

Advanced Siemens or Fanuc CNC systems allow precise programming and process optimisation, offering high CAD/CAM compatibility.

Precision and machining performance

The MILL 1525 CNC centre offers exceptional precision thanks to positioning accuracy of ±0.005 mm and repeatability of 0.003 mm. Rapid feed (1–4000 mm/min X,Y and 1–2000 mm/min Z) and advanced CNC controls optimise tool paths, shortening machining time and improving efficiency. Its solid construction and large workspace make it perfect for large-scale part production, both serial and single-piece.

Applications of the MILL 1525 Gantry Machining Centre

The MILL 1525 metal milling centre is used in demanding industries such as:

• Heavy industry: Production of large machine components, frames and housings.
• Aerospace industry: Machining of large aluminium, titanium and stainless steel elements.
• Mould and die making: Manufacturing precise injection moulds and dies for automotive and plastics industries.
• Energy sector: Machining of turbine parts, heat exchangers and other large-scale components.

Thanks to its large workspace and flexibility, the CNC machining centre is the perfect choice for production plants requiring reliable and efficient large-format machining.

CNC controls – Siemens Sinumerik 808D, SINUMERIK 828D and Fanuc Oi-TF

The MILL 1525 Gantry Machining Centre features professional CNC control systems from Siemens and Fanuc, offering precision, performance and user-friendliness.

Siemens Sinumerik 808D – compact control for standard applications

Siemens Sinumerik 808D is an economical CNC control for metal milling machines, offering:

• Intuitive interface: Simple graphical display for quick programming and operation.
• High reliability: Durable design resistant to harsh workshop conditions.
• Compatibility: Ideal for machines with standard machining requirements.

Siemens Sinumerik 828D – advanced control for demanding processes

Sinumerik 828D is a professional CNC control for metalworking machines, offering:

• High computing power: Fast data processing for dynamic machining.
• Advanced features: Machining cycles, interpolation and tool path optimisation.
• CAD/CAM integration: Seamless cooperation with CAD/CAM software.

Fanuc Oi-TF – stability and precision

Fanuc Oi-TF is a reliable CNC system for machining centres, offering:

• Operational stability: Ensures precision during long-term serial production.
• Advanced functions: Supports complex machining operations.
• User-friendly interface: Easy programming and simple operation.

Choose the CNC control best suited to your production needs to increase efficiency and precision!

Technical data

Standard equipment

• SIEMENS 808D control
• Siemens – 2-year warranty
• Spindle 8000 rpm
• Linear guideways
• 3-colour alarm lights
• Machine lighting
• Fully enclosed guarding
• Automatic lubrication system
• Pneumatic system

Optional equipment*

• Siemens 828 / Heidenhain / FANUC control
• Spindle speed 10000 / 12000 rpm
• Through-spindle cooling 20 bar / 40 bar
• 4th axis
• Chip conveyor with container
• Oil separator
• Automatic doors
• Renishaw TS-27 tool measuring probe
• Renishaw OMP60 workpiece measuring probe

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Why choose CORMAK?

As an experienced manufacturer of CNC machines, CORMAK has been delivering reliable industrial solutions for over 20 years. Our CNC machines meet the highest quality standards, hold European safety certifications and are supported by professional technical service. With an extensive logistics base and a team of specialists, we provide full technical support and advice.

• Experience: 16 years in Siemens CNC service.
• Quality: Machines compliant with European safety standards.
• Support: Professional consultancy and fast warranty and post-warranty service.

By choosing CORMAK machining centres, you invest in precision, reliability and long-term production efficiency.

Order your MILL 1525 Gantry Machining Centre today!

Increase your production efficiency and machining precision with the CORMAK MILL 1525. Contact our team for detailed information, a personalised offer or to arrange a machine presentation.

Contact us!
