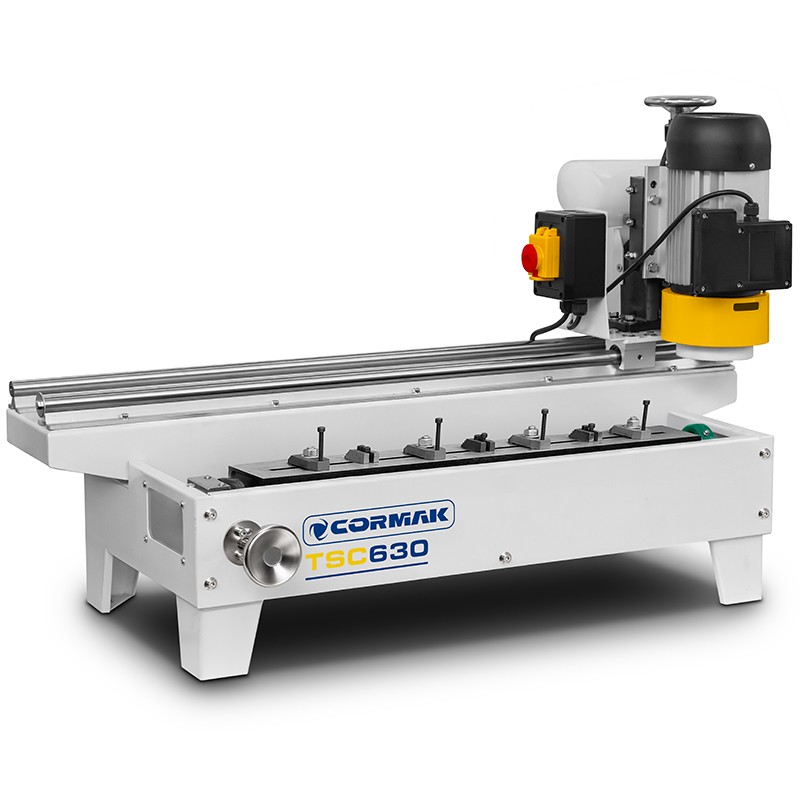

Planer Knife Sharpener CORMAK TSC630

The CORMAK TSC630 planer knife sharpener is a precise and efficient device designed for sharpening planer knives, chipper knives, shredder knives and other machine knives used in joinery, sawmills and production plants. Thanks to the ability to sharpen knives up to 630 mm long, this model is ideal wherever accuracy, repeatability and quick restoration of tools for operation are important.

Blunt knives mean poorer machining quality, greater machine load and unnecessary downtime. The CORMAK TSC630 allows machine knives to be quickly restored to ideal sharpness, ensuring high grinding quality and full control over the sharpening process.

Main advantages of the machine

• Sharpening knives up to 630 mm – the device is suitable for most typical planer knives and machine knives within this length range.
• Liquid cooling system – effectively removes heat generated during grinding, protecting the blade against overheating.
• Adjustable sharpening angle 0–90° – allows the setting to be adapted to the specific knife type and required blade geometry.
• Smooth manual feed – guides with linear bearings ensure stable guidance of the grinding unit.
• Adjustable clamps and stops – make it easier to set the knife quickly and repeatably in the correct position.
• Possibility of sharpening several thin knives at once – blocks allow 3 mm thick planer knives to be stacked.
• Smooth grinding wheel height adjustment – allows the working position of the stone to be set precisely in relation to the knife being sharpened.
• Collection tray with drain opening – enables coolant to be collected and reused.

Design and technology

The CORMAK TSC630 sharpener has been designed for users who need a stable, accurate and easy-to-use machine for everyday knife sharpening. The grinding unit moves along precise guides equipped with linear bearings, ensuring smooth grinding wheel movement along the full length of the blade.

This solution allows an even grind to be achieved without the risk of irregularities and makes it easier to maintain full control over the sharpening process, even with longer knives.

Perfectly sharp knives without overheating the cutting edge

Temperature control of the blade is the most important aspect during sharpening. The built-in liquid cooling system effectively removes heat generated during grinding, protecting the material against overheating and loss of cutting properties.

Thanks to cooling, the sharpened knives retain the correct geometry, hold their sharpness for longer and guarantee high work quality after installation in the machine.

Precision and work efficiency

The TSC630 model enables sharpening of knives up to 630 mm long, up to 150 mm wide and up to 30 mm thick. The adjustable holder allows the sharpening angle to be set from 0° to 90°, making it easy to adapt the device to different blade geometries and technological requirements.

Smooth manual feed on linear bearings, adjustable clamps and stops make it easier to set knives quickly and maintain repeatability during subsequent work cycles.

Possibility of sharpening several knives at once

The sharpener is equipped with special blocks enabling several thin planer knives to be sharpened simultaneously. The possibility of stacking knives with a thickness of 3 mm shortens the time required to prepare tools for operation and increases the efficiency of the sharpening process.

Application

The CORMAK TSC630 sharpener is suitable for sharpening:

• HSS planer knives,
• planer knives made from tool steel,
• chipper knives,
• shredder knives,
• knives used in woodworking machines,
• industrial knives used in production plants.

Standard equipment

• CORMAK TSC630 sharpener
• Corundum grinding wheel
• Built-in cooling system
• Coolant collection tray with drain opening
• Blocks for simultaneous sharpening of several thin knives
• Adjustable clamps and stops
• Mounting elements
• User manual

Technical data

Why choose the CORMAK TSC630?

The CORMAK TSC630 is a practical sharpener for joinery workshops, sawmills and production plants that need precise sharpening of machine knives without overheating the cutting edge.

By choosing CORMAK devices, you receive not only a machine, but also technical support, access to servicing and the possibility of adapting the device to the real needs of the workshop or plant. It is a solid solution for users who expect accuracy, repeatability and a good ratio of parameters to price.

Do you need a reliable planer knife sharpener? Choose the CORMAK TSC630 sharpener with cooling – a professional solution for precise sharpening of knives up to 630 mm long. Contact us and receive a technical offer tailored to your needs.
