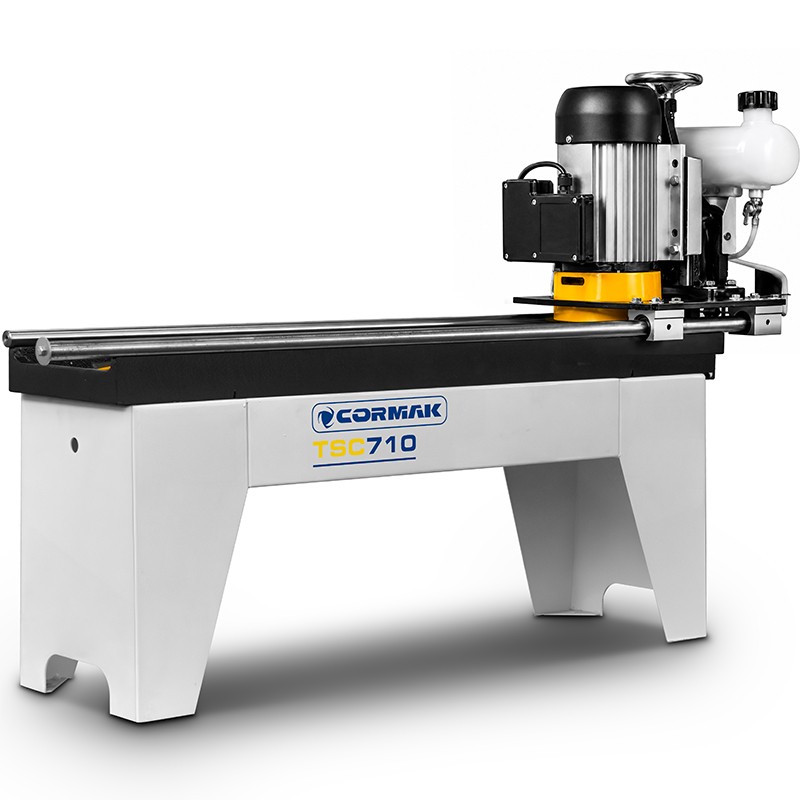

The CORMAK TSC710 planer knife sharpener is an efficient and precise device designed for sharpening planer knives, chipper knives, shredder knives and other machine knives used in the timber industry and production plants. Thanks to the ability to sharpen knives up to 800 mm long, this model is ideal wherever accuracy, repeatability and reliable operation are important.
The machine has been designed for professional users who expect perfectly sharpened tools, shorter machine downtime and full control over the sharpening process.
Main advantages of the machine
- Sharpener for planer and machine knives – enables precise sharpening of knives used in planers, thicknessers, surface planers, chippers and shredders.
- Sharpening knives up to 800 mm – the large working range allows most knives used in joinery workshops and production plants to be handled.
- Efficient liquid cooling system – protects the blade against overheating and helps preserve the material properties during grinding.
- Precise guidance of the grinding unit – the motor with the grinding unit moves on stable guides with linear bearings.
- Possibility of sharpening several knives simultaneously – special mounting blocks allow up to 4 thin planer knives to be sharpened in one cycle.
- Compact and rigid construction – the 65 kg weight and stable build reduce vibrations and increase operator comfort.
Design and technology
The CORMAK TSC710 sharpener is equipped with a grinding unit moving on linear guides. This solution ensures smooth, even movement of the grinding wheel along the full length of the knife being sharpened, which translates into high sharpening accuracy and repeatability.
The built-in liquid cooling system effectively removes heat generated during grinding. As a result, the cutting edge is protected against overheating, and the knife retains the correct geometry and material properties.
Sharpening without overheating the blade
One of the most important elements of the TSC710 sharpener is its efficient cooling system. During operation, the cooling liquid limits heating of the cutting edge, which is crucial when sharpening knives made from tool steel and HSS.
Cooling allows a high-quality ground surface to be achieved, extends knife service life and reduces the risk of losing material properties as a result of excessive temperature.
Precision and work efficiency
The TSC710 model enables sharpening of knives up to 800 mm long, up to 150 mm wide and up to 30 mm thick.
Smooth grinding wheel height adjustment enables precise setting of the grinding parameters, while manual feed on linear guides gives the operator full control over the sharpening process.
Possibility of sharpening several knives simultaneously
The sharpener is equipped with special mounting blocks that allow up to four thin planer knives to be sharpened simultaneously. This solution increases work efficiency, shortens tool preparation time and enables a larger number of knives to be handled more efficiently.
Application
The CORMAK TSC710 sharpener is suitable for sharpening:
- planer knives,
- thicknesser knives,
- surface planer knives,
- chipper knives,
- shredder knives,
- industrial knives,
- knives made from tool steel,
- HSS knives.
Standard equipment
- CORMAK TSC710 sharpener
- Grinding wheel
- Built-in cooling system
- Coolant tray
- Blocks for simultaneous sharpening of several knives
- Mounting elements
- User manual
Technical data
| Motor power |
1.1kW |
| Power supply |
230V |
| Maximum length of sharpened knives |
800 mm |
| Maximum knife width |
150 mm |
| Maximum knife thickness |
30 mm |
| Rotational speed |
2800 rpm |
| Grinding wheel diameter |
100 mm |
| Grinding wheel height |
51 mm |
| Grinding wheel thickness |
13 mm |
| Cooling |
yes |
| Feed type |
manual on linear guides |
| Possibility of sharpening several knives simultaneously |
yes, up to 4 knives |
| Machine dimensions |
1170 × 465 × 610 mm |
| Weight |
65 kg |
Why choose the CORMAK TSC710?
The CORMAK TSC710 is a professional sharpener for joinery workshops, sawmills, tool service centres and production plants that need accurate, repeatable and efficient sharpening of machine knives.
When buying a CORMAK device, you receive access to technical support, servicing and spare parts. It is a practical solution for everyday work that helps reduce machine downtime and keep tools in the correct technical condition.
Do you need a reliable sharpener for planer and machine knives? Choose the CORMAK TSC710 sharpener with cooling – a professional solution for precise sharpening of knives up to 800 mm long. Contact us and receive a technical offer tailored to your needs.
