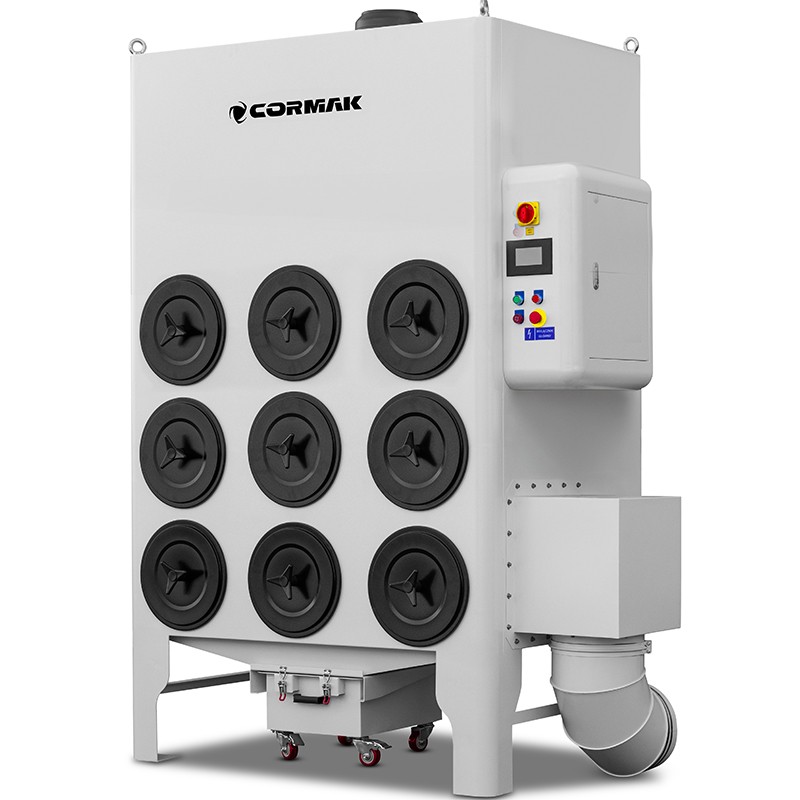

ODL6K Extraction System – a new standard of safety and performance
During laser cutting, harmful fumes and dust are generated, which may negatively affect operator health, work quality and machine lifespan. The modern ODL6K extraction system provides efficient filtration of pollutants and protection of key laser system components.
ODL6K combines automatic filter cleaning using compressed air, a high-performance fan generating strong negative pressure and 99.9% filtration efficiency for particles as small as 0.3 μm thanks to the use of advanced filters.
The system is equipped with an ergonomic dust drawer that enables quick and convenient removal of accumulated dust without dismantling. In addition, the modular construction allows extraction ports to be installed on either the left or right side of the unit, providing flexibility for installation in various workshop layouts.
ODL6K is a compact, efficient and reliable solution for every laser cutting system – increasing safety, comfort and work efficiency.
Main functions of the fume and dust extraction and filtration system during laser cutting:
- Removal and neutralisation of laser fumes.
- Ensuring safe working conditions at and around the laser workstation.
- Extending the lifespan of laser systems by maintaining cleanliness and protecting key components from contamination.
Main advantages of the CORMAK ODL6K extraction unit:
The extractor features automatic filter cleaning using compressed air. The air pressure pulses shake the filter, effectively cleaning the cartridge and extending its service life, keeping the system efficient for longer.
The filtration element used in the system is imported and made of high-quality material. The fire-resistant Nano-type filter provides excellent filtration efficiency, capturing 0.3 μm particles with over 99.9% effectiveness.
The large dust collection drawer enables convenient collection and removal of dust, simplifying system maintenance.
The motors used in the system are equipped with overload protection, ensuring a high level of safety and reliable operation.
The specially designed high-efficiency fan wheel generates strong negative pressure, enabling effective removal of laser fumes and ensuring a high airflow rate.
The total purification efficiency of the system is 0.3 μm, with over 99.9% effectiveness, confirming its outstanding performance in removing harmful airborne particles. Additionally, its compact design makes operation and maintenance easy.
Technical parameters
|
|
| Number of filter cartridges |
6 |
| Airflow rate |
6000 m³/h |
| Air pressure |
3000 Pa |
| Filtration efficiency |
99.99% |
| Filter size |
350x660 mm |
| Fan motor power |
7.5 kW |
| Inlet diameter |
300 mm |
| Weight |
590 kg |
| Dimensions (L x W x H) |
1150 x 1950 x 2250 mm |
