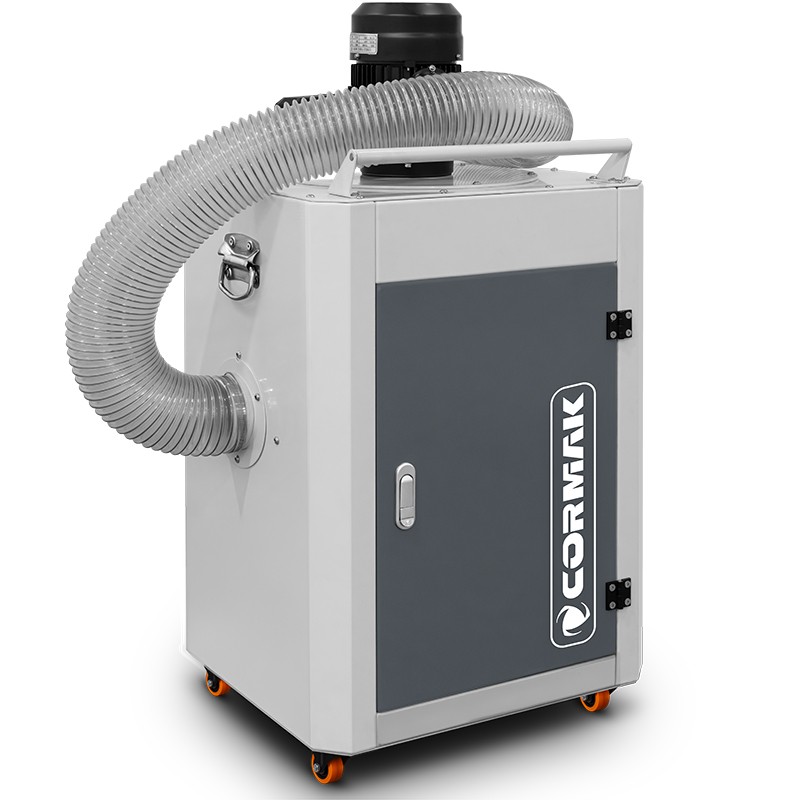

Metal Chip and Swarf Extractor MDC800 230V
Metal extractor MDC800 is a professional device designed for effective extraction of chips, swarf and metal dust generated during metalworking processes. High efficiency, stable construction and ease of operation make this model reliable equipment for grinding and production workstations requiring constant cleanliness control.
Main advantages of the machine
- High extraction performance – air flow up to 1800 m³/h ensures effective removal of even large volumes of chips.
- Universal application – ideal as a chip extractor, extractor for grinders, polishers and other metalworking machines.
- Compact and stable design – rigid housing ensures safe operation and minimises vibrations.
- Quick access to the container – facilitates emptying and reduces downtime.
- Easy filter replacement – simple and convenient access.
Design and technology
MDC800 has been designed for intensive and continuous industrial operation. A robust motor with a power output of 0.75 kW operates at a speed of 2800 rpm, ensuring a constant and stable airflow. The dual suction inlet system 2 × 100 mm allows simultaneous connection of two workstations, significantly increasing productivity.
The large impeller diameter of 325 mm increases the aerodynamic efficiency of the entire system and enables extraction of larger metal chip fractions without the risk of clogging the installation. A large collection container guarantees long operating cycles without frequent emptying.
Precision and operating efficiency
The MDC800 metal chip extractor provides even and stable airflow with both single and dual inlets. Performance of 1800 m³/h (single inlet) and 1520 m³/h (dual inlet) enables effective capture of most contaminants generated during grinding, drilling, milling and other machining operations.
Applications
The device is perfectly suited as:
- extractor for bench and belt grinders,
- extractor for metal chips and swarf in metalworking shops,
- metal dust extraction system in tool workshops,
- component of extraction installations for polishing and deburring processes.
Standard equipment
- large-capacity chip container,
- replaceable filter,
- dual suction inlet 2 × 100 mm,
- stable, compact steel housing.
Technical data
| Motor |
0.75 kW 230V |
| Rotational speed |
2800 rpm |
| Suction inlets |
2 × 100 mm |
| Single inlet capacity |
1800 m³/h |
| Dual inlet capacity |
1520 m³/h |
| Impeller diameter |
325 mm |
| Chip bag size |
330 × 500 mm |
| Dimensions |
580 × 480 × 1016 mm |
| Weight |
55 kg |
Choose an efficient and reliable metal extraction system
By choosing MDC800, you invest in a stable, durable and efficient extraction system that improves workplace safety and machining quality. Add the product to your basket or contact our sales department to receive an offer tailored to your facility.
