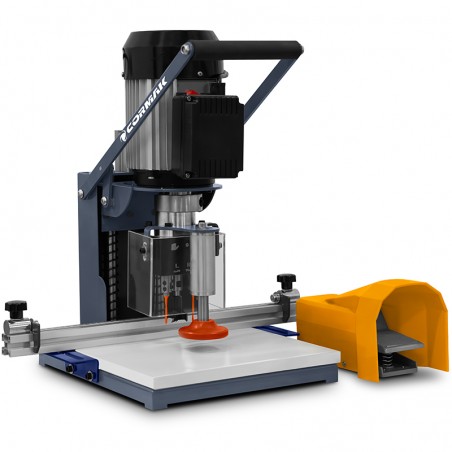

Manual Hinge Boring Machine CORMAK BBM40MAN

CORMAK BBM40MAN Hinge Boring Machine – precision hinge and fitting drilling

CORMAK BBM40MAN is a compact, efficient, and easy-to-use woodworking hinge drilling machine designed for precise drilling of hinge and fitting holes. Ideal for furniture manufacturing, it ensures repeatability and stability in operation. Thanks to its intuitive design and robust components, the BBM40MAN offers excellent performance with simple operation and maintenance.

Main features

• Precise hinge drilling – the adjustable depth stop located at the rear of the machine allows full control over drilling depth, reducing the risk of material damage.
• Compact and rigid design – the sturdy base with a large working table (350 × 300 mm) ensures operator comfort and safety.
• Powerful 1.1 kW motor – unmatched in its class, it provides sufficient torque for BLUM-type hinges and similar fitting systems.
• Triple-spindle drilling head – enables simultaneous drilling of the main hinge hole and side pilot holes.

Construction and technology

The CORMAK BBM40MAN model is designed for simplicity and durability. Its mechanical head feed with 110 mm travel and manual control provide full operational precision. The 10 mm tool shank diameter fits standard hinge drill bits. Compact overall dimensions (370 × 500 × 600 mm) and a weight of 21.5 kg make this hinge boring machine ideal for both workshop and on-site use.

Precision and performance

With an optimal spindle speed of 3000 rpm and manual feed adjustment, the operator can quickly and accurately drill holes for all standard hinge types. Adjustable drilling depth makes it easy to adapt to different panel thicknesses and hinge systems. Stable material clamping and precise control significantly reduce assembly errors and improve efficiency.

Applications

The CORMAK BBM40MAN hinge drilling machine is ideal for:

• kitchen, bathroom, and office furniture production,
• carpentry and woodworking workshops,
• assembly and fitting services,
• training centres and woodworking schools.

Standard equipment

• Triple-spindle hinge drilling head,
• Mechanical feed with 110 mm travel,
• Adjustable depth stop,
• Working table 350 × 300 mm,
• Powerful 1.1 kW motor (230 V),
• Manual clamping and operation,
• 35 mm hinge cutter + two 2 mm drill bits for BLUM hinges.

Technical specifications

Invest in precision and reliability. Choose the CORMAK BBM40MAN hinge boring machine and gain full control over your furniture hinge installation process, both in your workshop and on-site.
