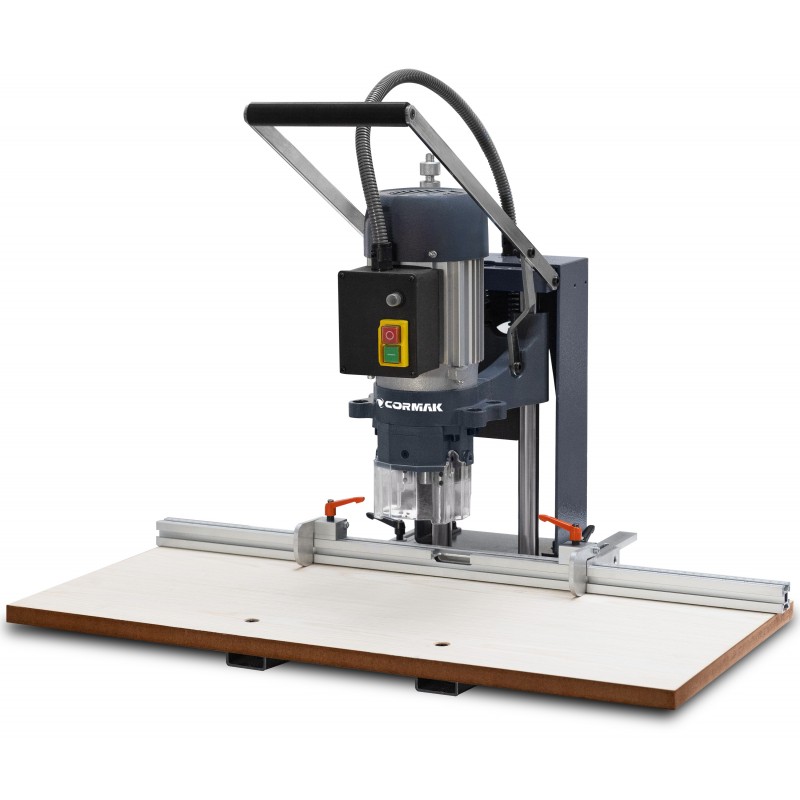

Hinge Borer Drilling Machine CORMAK BH40M

Hinge Drilling Machine CORMAK BH40M – precise furniture fitting processing

Hinge Drilling Machine CORMAK BH40M is a compact, efficient and easy-to-use horizontal wood drilling machine designed for precise drilling of holes for furniture hinges. The machine performs perfectly in joinery workshops and furniture production, offering repeatable drilling and stable tool guidance. Thanks to its intuitive design and robust components, BH40M ensures high work quality while maintaining simple operation.

Main advantages of the machine without compressed air system

• Precise drilling for furniture hinges – the adjustable depth stop allows drilling with full control over parameters, minimising the risk of material damage.
• Compact and stable construction – a rigid base with a large worktable (790 x 390 mm) ensures comfort and safety at work.
• Without compressed air system – the absence of pneumatic systems ensures reliability and low operating and maintenance costs.
• 0.75 kW motor – the head drive provides adequate torque for working with Blum-type hinges and other fitting systems.
• 3 working spindles – allow simultaneous drilling of the main hinge hole and side guide holes.

Design and technology

The CORMAK BH40M model has been designed for ease of use and durability. The mechanical feed of the drilling head with a 110 mm range and manual operation guarantee full control of the working cycle. The 10 mm tool shank diameter allows the use of standard hinge drill bits. Compact overall dimensions (800 x 630 x 780 mm) and a weight of 45 kg make this furniture fitting drilling machine also ideal for on-site installation work.

Precision and performance

With an optimally selected spindle speed (2,800 rpm) and the possibility of manual setting adjustment, the operator can quickly and accurately drill holes for any standard hinge type. The adjustable drilling depth (up to 20 mm) makes it easy to adapt to different panel thicknesses and hinge types. Stable workpiece clamping and control of parameters minimise assembly errors and increase overall productivity.

Applications

The Hinge Drilling Machine CORMAK BH40M is suitable for:

• kitchen, bathroom and office furniture production,
• joinery workshops and maintenance departments,
• service workshops specialising in fittings assembly,
• schools and training centres related to wood processing.

Standard equipment

• 3-spindle head for hinge drilling,
• mechanical fence feed (110 mm),
• adjustable depth stop,
• worktable 790 x 390 mm,
• 0.75 kW motor (230 V),
• manual control and workpiece clamping.

Optional equipment

• drill bits for Blum and other hinge systems,
• positioning templates for various fittings,
• sets of guides and side stops.

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Technical data

Invest in quality and reliability. Choose the CORMAK BH40M furniture fitting drilling machine and gain full control over hinge assembly in your production facility or workshop.
