Transport Fan FM230N is a professional solution for local sawdust extraction, as well as for the removal of chips and dust generated during wood processing. Its compact design, durable motor and high efficiency make this sawdust blower ideal as part of dust extraction systems in joinery shops, workshops and single- or multi-spindle woodworking machines.
The CORMAK FM230N transport fan is a professional solution for local sawdust and chip extraction as well as the removal of fine dust generated during wood processing. Its compact design, solid motor and high performance make this sawdust blower an excellent component of dust extraction systems in carpentry workshops, joinery plants and single- or multi-spindle woodworking machines.

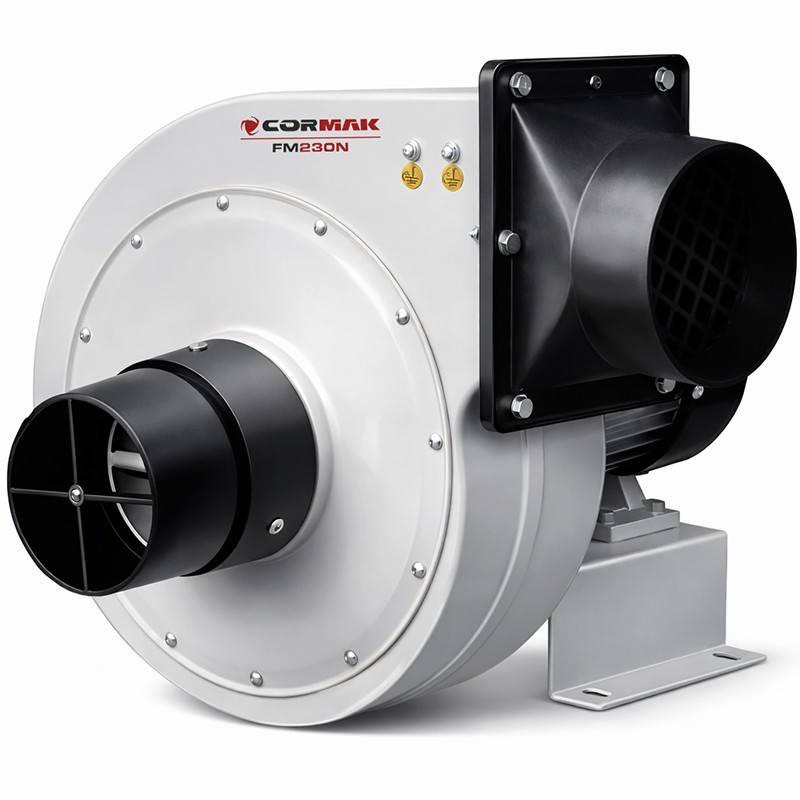

The FM230N fan features a closed, welded steel housing with an impeller mounted directly on the motor shaft. This construction eliminates power losses associated with belt drives and minimises vibration. The housing is aerodynamically optimised for maximum airflow, providing stable performance even during continuous operation.
The single-phase 230 V motor operates at a standard frequency of 50 Hz, making it suitable for most workshops without the need for a three-phase power supply.
The FM230N fan is engineered for high-efficiency air transport containing light wood particles. Thanks to its optimised impeller and airflow channel, the unit minimises air resistance, enabling continuous operation even with high chip and sawdust loads. It is ideal for use both as a transport fan for sawdust and as a local blower supporting woodworking machines.
The FM230N fan is ideal for woodworking shops, furniture manufacturing facilities and production lines generating wood dust and chips. It can operate independently or as part of a larger dust extraction system. Especially recommended as a sawdust extractor for:
| Motor power | 0.75 kW |
| Speed | 2950 rpm |
| Extraction capacity | 1000 m³/h |
| Suction inlet diameter | 100 mm |
| Outlet diameter | 110 mm |
| Voltage / frequency | 230 V / 50 Hz |
| Dimensions (L × W × H) | 430 × 400 × 340 mm |
| Weight | 15 kg |
Order the CORMAK FM230N transport fan today and increase dust extraction efficiency in your workshop. Contact our technical department for assistance with system configuration or component selection.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
