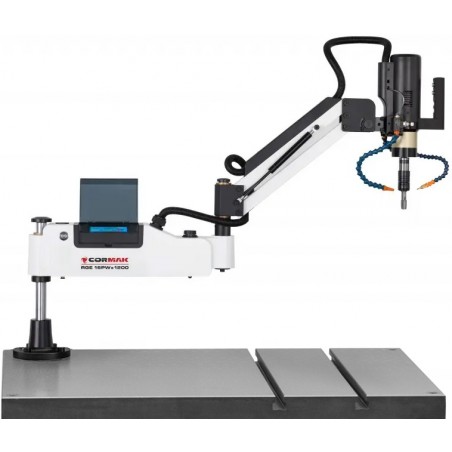

The CORMAK RGE36PWx1200 electric tapping machine is an advanced tool designed for efficient and precise threading in industrial conditions. It performs excellently in both large production plants and small workshops. Thanks to its innovative construction and modern technologies, this tapping machine delivers exceptional reliability and speed while minimising the risk of errors and inaccuracies during threading operations.
Main Advantages of the CORMAK RGE36PWx1200 Electric Tapping Machine
- Precise threading: The combination of a servomotor and tapping arm guarantees high precision and repeatability when threading various materials.
- Efficiency: The tapping arm enables fast and effective threading, significantly reducing operation time compared to traditional manual methods.
- Modern control panel: The touchscreen panel allows easy configuration of parameters such as rotation speed, thread depth, and threading direction. The panel interface is available in English.
- Tool cooling: The integrated micro-spraying system effectively cools the taps, minimising lubricant use and extending tool life.
- Work efficiency: The chip-blowing system removes chips efficiently, ensuring better visibility of the workpiece and improved operator comfort.
- Universal use: With a wide threading range from M6 to M36, this tapping arm is ideal for a variety of industrial applications.
Construction and Technology of the CORMAK RGE36PWx1200 Tapping Machine
The CORMAK RGE36PWx1200 has been designed for heavy-duty operation in demanding industrial environments. Its construction provides excellent wear resistance and long service life. Driven by a servo motor, the threading mechanism operates smoothly and consistently. The tapping arm allows precise positioning of the tool, while the rotatable motor assembly enables threading at various angles, increasing the versatility of the machine.
Key structural features of the CORMAK RGE36PWx1200 include:
- Tapping arm with a quick-release holder for fast and secure tap changes.
- Adjustable overload clutches to protect against excessive load.
- Durable machine frame with an integrated micro-spraying system for effective tool cooling, reduced lubricant loss, and extended tool life.
- Efficient chip blower providing optimal visibility during threading.
Precision and Work Efficiency of the CORMAK RGE36PWx1200
The CORMAK RGE36PWx1200 delivers outstanding precision thanks to its advanced servo drive and rotating tapping arm. These technologies allow quick setting of parameters such as spindle speed, thread depth, and threading direction. The machine ensures not only accurate but also faster threading compared to conventional manual methods.
The working efficiency of the CORMAK RGE36PWx1200 is enhanced by cooling systems that prevent overheating and reduce tool wear. These technologies allow continuous operation while maintaining consistent quality and performance. The adjustable tapping arm provides precise positioning, which is crucial for threading large series of components.
Applications of the CORMAK RGE36PWx1200 Tapping Machine
The CORMAK RGE36PWx1200 is designed for a wide range of industrial applications, including:
- Serial production: Threading large quantities of components in a short time.
- Metal industry: Ideal for threading parts made of steel, stainless steel, aluminium, and non-ferrous metals.
- Automotive industry: Used in the production of precision car parts.
- Precision manufacturing: Threading in high-accuracy devices such as electronic components and precision machine parts.
- Craft workshops: Excellent for small-series production and prototypes.
Standard Equipment of the CORMAK RGE36PWx1200 Tapping Machine
- Touch control panel: Enables easy programming of threading parameters such as spindle speed, direction, and depth.
- Rotating tapping arm: Allows threading at any angle.
- Tap holders with overload clutches: Protect the device from overload, ensuring long-term durability.
- Micro-spraying system: Provides continuous cooling with minimal coolant consumption.
- Chip blower: Removes chips efficiently for improved visibility during threading.
Technical Specifications of the CORMAK RGE36PWx1200 Tapping Machine
| Power |
2kW |
| Power supply |
230V |
| Weight |
56kg |
| Maximum arm reach |
1,200mm |
| Maximum rotation speed |
125rpm |
Included: Tap holders for M5–M36.
*The machine is supplied without worktable, vice or taps.
