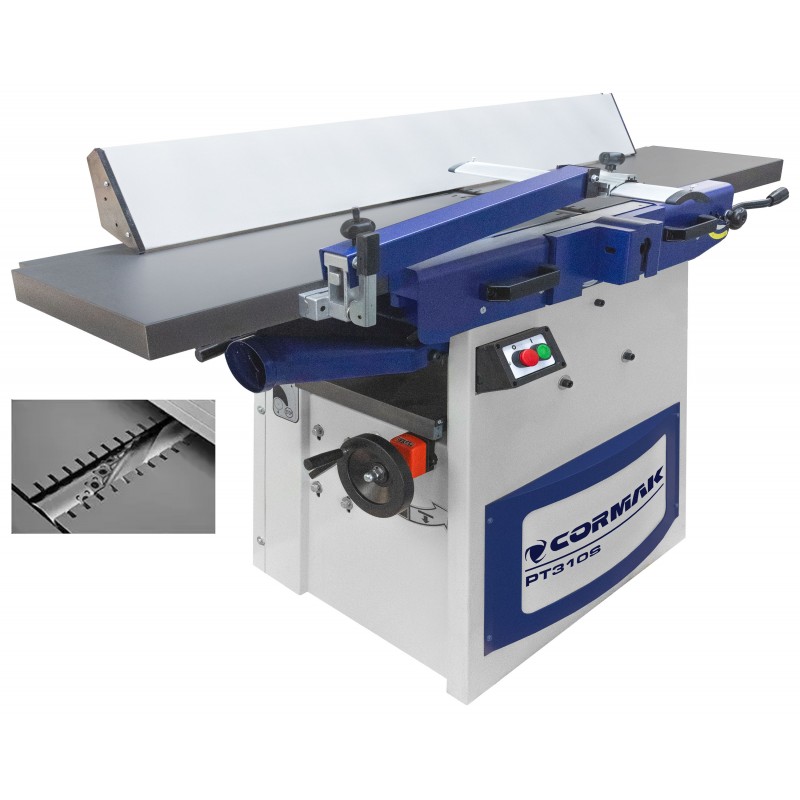

Planer-Thicknesser CORMAK PT310S with Spiral Cutterhead

Planer Thicknesser CORMAK PT310S with Spiral Cutterhead – precision and high performance

The CORMAK PT310S is a professional planer thicknesser designed for precise, quiet and efficient wood processing. This machine combines the features of a surface planer and a thicknesser, offering exceptional versatility and reliability in daily operations. Its key feature is the spiral cutterhead with 24 replaceable carbide inserts, which ensures a fine, smooth finish and significantly reduces noise compared to conventional cutter blocks.

Main features

• Spiral cutterhead – 24 carbide inserts (15 × 15 × 2.5 mm) provide long service life and exceptionally quiet, accurate operation.
• Heavy-duty cast-iron construction – absorbs vibrations and improves cutting accuracy.
• Powerful motor – 3.0 kW (S1) / 4.0 kW (S6) motor delivers consistent power under heavy load.
• Large working capacity – handles workpieces up to 310 mm wide and 180 mm thick.
• Efficient chip extraction – Ø100 mm port enables easy connection to dust extraction systems.

Construction and technology

The CORMAK PT310S Planer Thicknesser is equipped with a 75 mm diameter spiral cutterhead, ensuring smooth material feed and extended tool life — each insert can be rotated four times. The cast-iron tables measure 1280 × 310 mm (planer) and 600 × 310 mm (thicknesser), providing long-lasting rigidity and resistance to deformation. The adjustable fence (90–45°) allows accurate bevel planing for angled surfaces.

Precision and performance

The machine operates at a cutterhead speed of 4000 rpm, enabling a maximum cutting depth of 5 mm in planer mode and 2.5 mm in thicknesser mode. With these parameters, the PT310S provides superior surface finish ready for gluing, varnishing or further machining. It performs equally well in custom craftsmanship and serial production thanks to its durable construction and stable performance.

Applications

The CORMAK PT310S Planer Thicknesser is suitable for use in:

• Carpentry and furniture workshops
• Woodworking and joinery shops
• Prototype facilities and training centres
• Maintenance departments and educational institutions

Standard equipment

• Spiral cutterhead with 24 inserts
• Cast-iron planer and thicknesser tables
• Cutterhead guard
• Dust extraction port Ø100 mm
• Feed and emergency stop switches

Optional equipment

• Mobile transport trolley
• Spiral insert setting jig
• Mortising and drilling unit

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Technical data

Invest in precision, durability and comfort. Choose the CORMAK PT310S Planer Thicknesser with Spiral Cutterhead and boost the productivity of your woodworking operations. Contact our technical department for more details.
