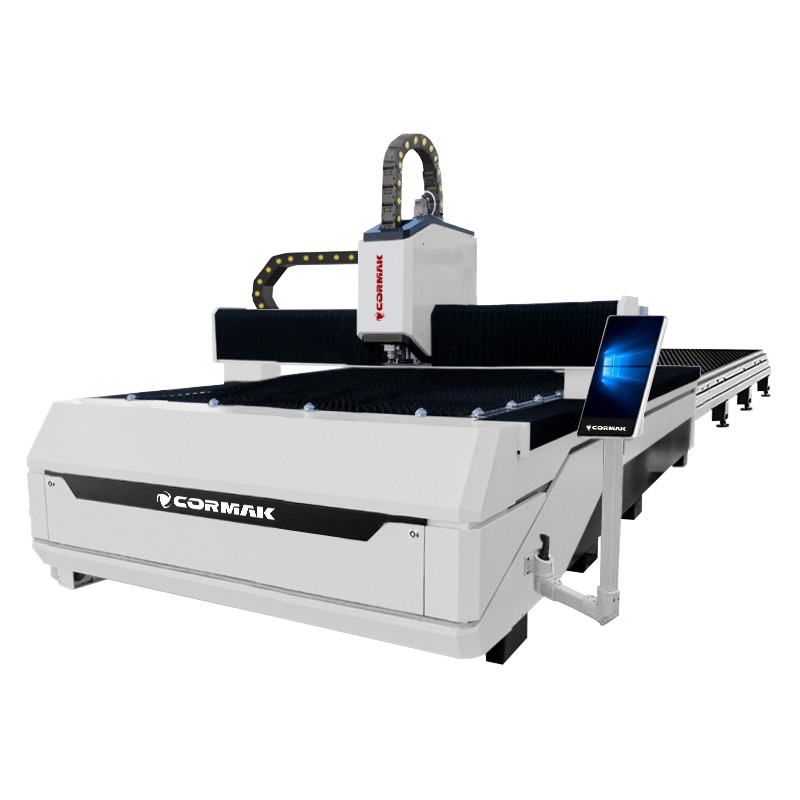

Fibre laser cutting machines are modern devices that stand out with numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology but also offer many features that allow production growth of up to 70% and improved quality. FIBER technology enables cutting of sheets and other materials of varying thicknesses, from very thin to very thick. The wavelength of the FIBER laser is 1.064 micrometres. These properties result in an intensity 100 times higher than CO2 systems of comparable power.
MAIN ADVANTAGES OF THE LASER
- maintenance-free optical fibre
- no consumable components
- the fibre laser source occupies about one-third less space
- high energy efficiency – 100,000 h of operation
- versatile use (special steels, mild and stainless steel, copper, brass, aluminium, titanium)
Fibre laser advantages
- increases work efficiency by 80%
- reduces service costs by 70%
- saves 80% of energy
- minimises gas consumption
- saves 30% of floor space
Gantry made of aged aerospace aluminium
The gantry structure is made of aged aerospace aluminium, formed with a pressure of 4,300 tons, ensuring exceptional rigidity. Aerospace aluminium offers many benefits: high stiffness (greater than cast iron), low weight, corrosion and oxidation resistance, and excellent machinability.
- Long service life. The collimating and focusing lenses feature a water-cooling radiator that lowers the temperature of the cutting head, extending its service life.
- Wider adjustment range. Adjustment range -10 mm ~ +10 mm, precision 0.01 mm, suitable for various plate types 0 ~ 20 mm.
- Automatic focus adjustment (above 1500W) – Autofocus – The software automatically adjusts the focusing lens while cutting sheets of different thicknesses. The autofocus speed is ten times faster than manual adjustment.
Design Screen
The screen has a vertical display with fast response time, higher contrast, a wide viewing angle, low energy consumption, and high resolution. It also provides high brightness, lower reflectivity, and excellent durability.
Welded Bed Frame Made of Rectangular Profiles
The bed structure features an internal honeycomb-like design made of welded rectangular tubes. Internal reinforcements enhance the bed’s strength, rigidity, and guide rail stability, effectively preventing deformation. High strength, stability, and tensile resistance ensure 20 years of use without distortion.
Exchange Work Table
The exchange work table consists of upper and lower platforms whose movement and exchange are controlled by the CNC system. The machine can perform the platform exchange within 15 seconds.
Technical Specifications
| WORKING AREA |
1500x3000 mm
|
| POWER |
3000W |
| REPEAT POSITIONING ACCURACY |
±0.02 mm/m |
| MAXIMUM SPEED |
40 m/min |
| DIMENSIONS |
4780x2350x2000 mm |
| POWER SUPPLY |
400V 50Hz |
Cutting Parameters
Actual parameters may vary depending on technical conditions and materials used.
1. RAYTOOLS head
2. Linear guides: HIWIN
3. Gears and racks: YYC
4. DELTA servomotors
5. MOTOREDUCER gearbox
6. Pneumatic components: SMC
7. Electrical components such as contactors, relays, sensors from: Schneider, OMRON, IDEM
8. CypCut software
9. Chiller (water cooler): S&A
10. Voltage stabiliser: TNS
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
