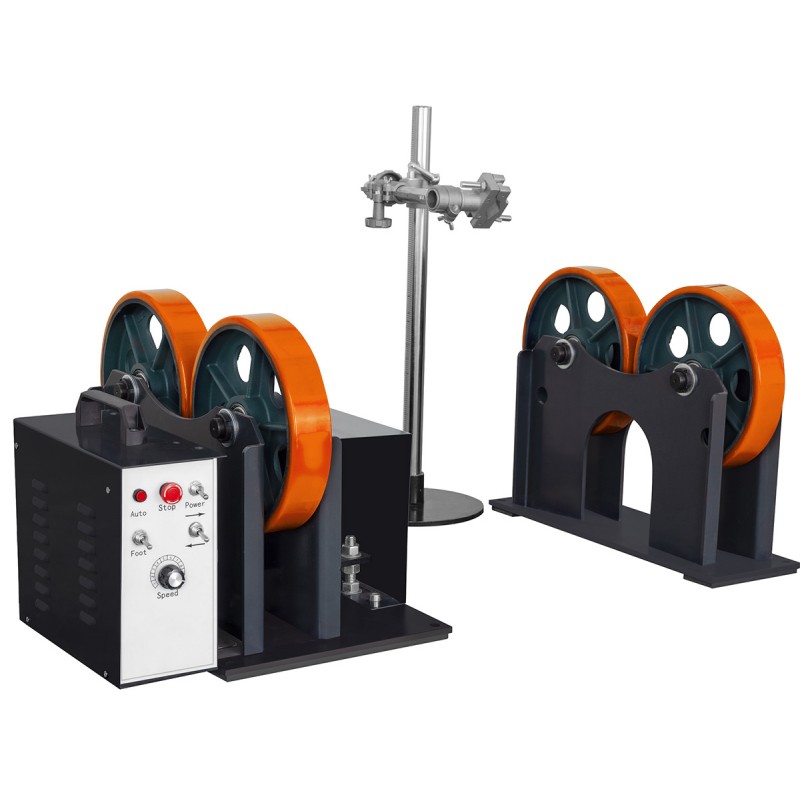

The CORMAK OS-1 welding roller rotator is a professional device for welding and processing cylindrical components. The unit combines robust construction with high precision, providing optimal conditions for welded joints. It performs excellently in both serial and single-piece production, offering reliability and consistent results.
Main advantages of the machine
- High load capacity up to 1000 kg horizontally – allows working with various pipe components
- Adjustable rotation speed from 80 to 1500 mm/min – adapts to welding process requirements
- Remote foot control – full control over the process without interrupting work
- 5 cm wide rollers made of durable polymer – ensure stable guidance of the workpiece
- Compact design – easy installation in production facilities with limited space
Construction and technology
The CORMAK OS-1 rotator is based on a twin-roller design with durable, noise-damped guiding rollers. The body is made of thick-walled steel, ensuring rigidity and vibration resistance during operation. The drive motor provides smooth start-up and precise maintenance of the set linear speed.
Structural elements:
- High-quality electric motor with a high-torque gearbox
- Steel rollers with protective coating for extended service life
- Adjustable spacing mechanism for handling components of different diameters
- Protective housing shielding the drive and control systems
Precision and work efficiency
Thanks to the precision drive and adjustable rotation speed, the CORMAK OS-1 rotator enables high-quality welds with repeatable results. The device minimises operator fatigue and eliminates the need for manual rotation of heavy components.
Applications
The CORMAK OS-1 welding rotator is used in:
- Welding of pipes and pressure vessels
- Manufacture of boilers and cylindrical structures
- Petrochemical and chemical industries
- Locksmith and repair workshops
- Serial and single-piece production
Standard equipment
- Foot pedal remote control
- Welding torch holder support
- Set of guiding rollers
- User manual
Technical data
| Power supply |
AC 230V 50Hz |
| Horizontal load capacity |
1000 kg |
| Workpiece diameter range |
25–1400 mm |
| Linear speed range |
80–1500 mm/min |
| Roller dimensions |
Ø 250×50 mm |
| Gross weight |
80 kg |
| Overall dimensions |
600 × 550 × 380 mm |
Summary
The CORMAK OS-1 welding rotator is a reliable tool that significantly enhances the quality and efficiency of welding processes. Its compact construction, high load capacity and precise drive make it the perfect choice for professional workshops and production facilities. Invest in a solution that guarantees safe and effective handling of cylindrical components.
