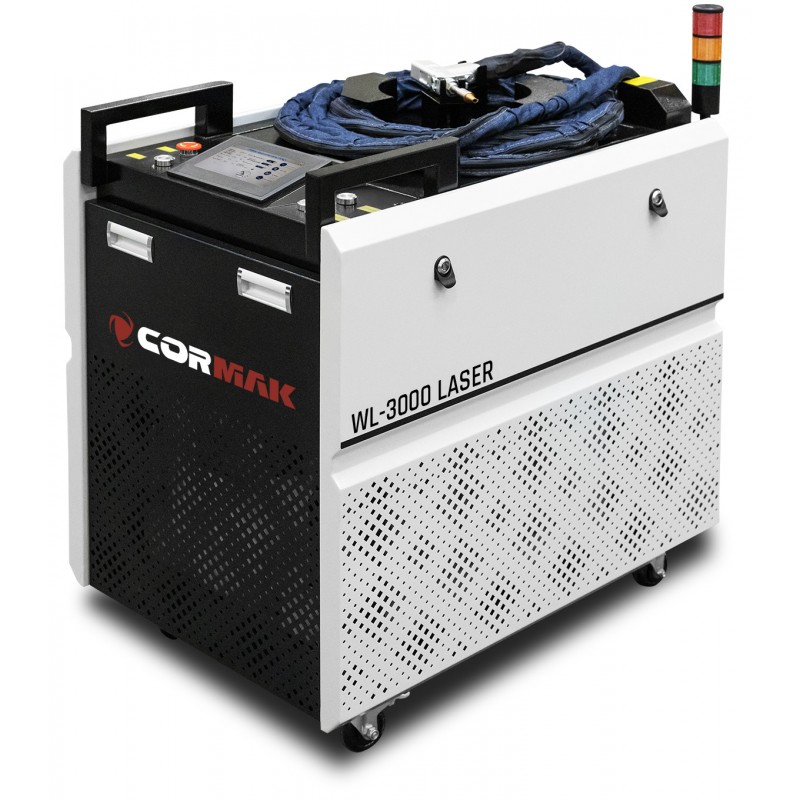

Why choose CORMAK WL3000?
The CORMAK WL3000 laser welding machine is the perfect solution for professionals looking for reliability, precision and efficiency. Its innovative design and advanced cooling system make it a future-proof device that will meet even the most demanding welding tasks. Pre-order now and take advantage of this unique offer!
Key Features and Benefits
- Advanced cooling system : A new, more efficient water cooling system ensures optimal operating temperatures, allowing you to work longer without interruption and increasing the lifespan of your device.
- Innovative design : The ergonomic and lightweight design of the welding head allows for welding even in hard-to-reach places. Thanks to the adjustable spot size (0-5 mm) and replaceable nozzles, the operator has full control over the welding process.
- Easy to use - thanks to the solutions used and the well-thought-out design, the operator can start working after a short training
- Low indirect radiation, just wear protective glasses to filter strong light when working
- Much faster welding than traditional methods, productivity can increase by 3 to 10 times
- Concentrated beam: slight change in structure due to small heat-affected area,
- Repeatability of welds, the weld seam is nice, the welds are of high strength.
- Very thin materials such as 0.5 mm stainless steel can be welded.
- Welding option with or without wire.
- The integrated laser cleaning function increases the range of applications of the device.
- Possibility of using the cutting option - ensures excellent cutting quality, without mechanical processing.
Technical parameters
| Maximum power |
3000 W |
| Laser wavelength |
1070nm |
| Fiber optic length |
10m |
| Working modes |
Continuous / Modulated |
| Air pressure |
10 - 15 L/min |
| Welding speed |
0-215mm/s |
| Automatic wire feeder |
Ø 0.8 - 2.0 mm |
| Maximum power consumption |
≤11.0kW |
| Focal length |
150mm |
| Cooling system |
water |
| Operating voltage |
400V |
| Shielding gas consumption |
20L/min |
| Dimensions |
600x1100x1100mm |
| Weight approx. |
207 kg |
THICKNESSES OF WELDED MATERIALS
|
Material
|
WELDING MACHINE POWER
|
| 1000 W |
1500 W |
2000 W |
3000 W |
| Stainless steel |
0.5-3.0mm |
0.5-4.0mm |
0.5-5.0mm |
0.5-8.0mm |
| Black steel |
0.5-2.5mm |
0.5-3.5mm |
0.5-4.5mm |
0.5-8.0mm |
| Galvanized steel |
0.5-1.2mm |
1.5-1.8mm |
1.5-4.0mm |
1.5-7.0mm |
| Aluminum |
0.5-1.2mm |
1.5-1.8mm |
1.5-4.0mm |
1.5-7.0mm |
| Brass |
0.5-1.2mm |
1.5-1.8mm |
1.5-2.5mm |
1.5-4.0mm |
WELDING HEAD OF THE LATEST GENERATION
Automatic, dual wire feeder included;
Adjustable spot size 0-5mm;
High-power welding head
Integrated connections for shielding gases and cooling system,
Interchangeable nozzles allow welding at different angles,
7 m of optical fiber that connects the head with
Full ergonomics - thanks to the lightweight and flexible design, the head can perform welds even in hard-to-reach places;
Easy to service - quick and easy replacement of the protective lens.
Automatic wire feeder included
The wire feed system is synchronized with the welding machine software. The feeder's task is to feed the filler, thanks to which the operator can focus 100% on working with the head.
The set includes
- laser welder with built-in cooling system
- welding gun with focus adjustment and a set of accessories
- Fiber laser source
- automatic wire feeder
- complete set of cables
- starter kit of welding nozzles and protective glasses
|
*Optical laser cleaning kit available at 375 € net. Not part of the standard equipment.
The appearance of the device housing is a matter of design and may vary depending on the date of order. However, the technical specification remains unchanged, guaranteeing constant quality and performance of the device. Additionally, the WL and SL designations are used interchangeably depending on the series of machines and devices, which does not affect their functionality or technical parameters.
