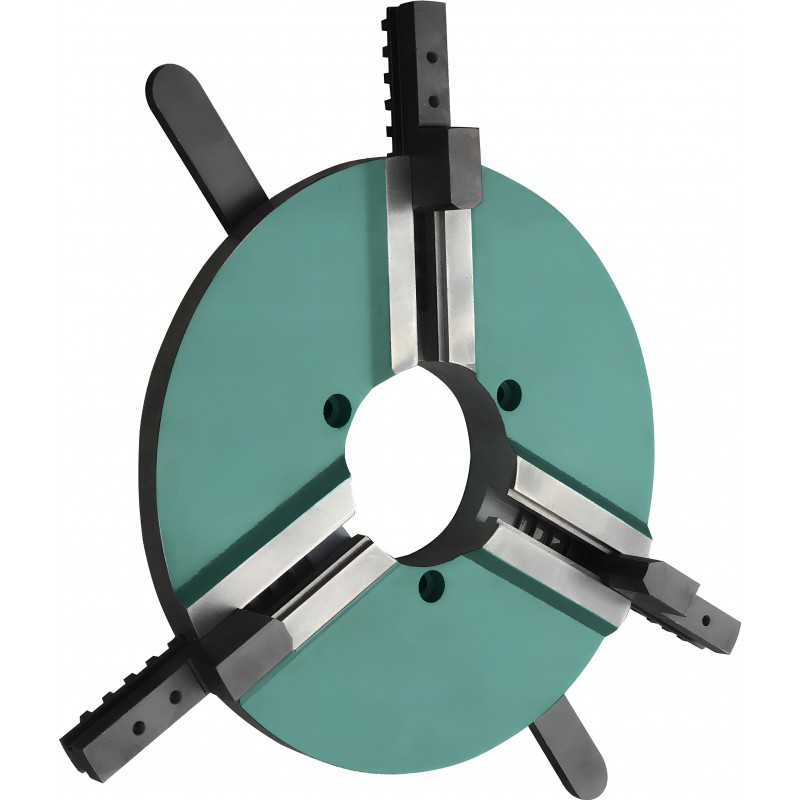

WP300 self-centring 3-jaw chuck is specialised equipment designed for clamping pipes and workpieces with a cylindrical or hexagonal cross-section in welding positioners and welding rotators. Thanks to its precise self-centring clamping mechanism, it ensures secure and accurate positioning of the workpiece during rotation, resulting in higher quality and repeatability of the welding process.
Main advantages of the WP300 chuck
- Precise self-centring mechanism – enables quick and accurate centring of pipes and workpieces, eliminating the need for manual positioning.
- High versatility – works with many welding rotators and positioners, including PS310, PS320 and PS360 models.
- Clamping stability – thanks to three independent jaws, the workpiece remains securely clamped even at high rotational speeds.
- Solid construction – made of high-grade materials resistant to vibration, loads and working conditions in welding environments.
- Optimal working diameter – the ability to clamp pipes with a diameter of up to 270 mm allows a wide range of applications.
Construction and technology
The WP300 model has a compact and durable steel construction, adapted to intensive operation. The 3-jaw mechanism works synchronously, automatically positioning the workpiece in the axis of rotation. The large external diameter (300 mm) and through-hole (100 mm) allow work with a wide dimensional range of components. The mounting holes have been designed so that the chuck is fully compatible with welding positioners offered by CORMAK.
Precision and work efficiency
The WP300 chuck ensures high clamping repeatability, which translates into circumferential weld precision. It shortens the time needed to prepare the workpiece for welding and reduces setting errors, increasing production efficiency and improving operator safety. The solid construction of the chuck guarantees stable operation even under dynamic loads.
Application
The WP300 chuck is intended for use in circumferential welding processes, especially in production plants, metalworking workshops and companies involved in the prefabrication of steel components. It is used in welding rotators and welding positioners, increasing their functionality and versatility.
Technical data
| Max. pipe diameter: |
270 mm |
| External diameter: |
300 mm |
| Internal diameter: |
100 mm |
| Mounting hole spacing: |
105 mm |
| Bolt hole diameter: |
9 mm |
| For welding positioner: |
PS310, PS320, PS360 |
| Weight: |
14 kg |
Summary
WP300 self-centring 3-jaw chuck is an indispensable tool in any modern welding workstation. It enables precise and quick clamping of workpieces in positioners and welding rotators, improving the quality and repeatability of the welds produced. It is an ideal solution for plants that value efficiency, reliability and safety. Choose WP300 and increase the efficiency of your welding processes.
