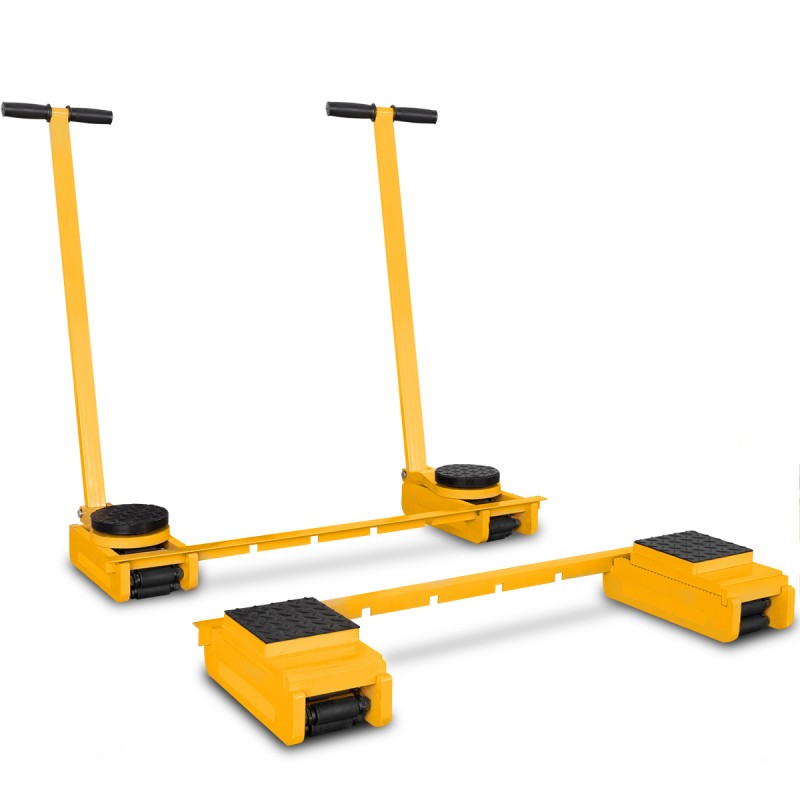

60-tonne machine moving skate set – professional solution for moving extremely heavy loads

Machine moving skate set with a 60-tonne load capacity is an industrial-grade tool designed for efficient and safe movement of massive objects such as production machines, structural elements and technological equipment. It consists of a transport platform and steering bar, creating a system that enables precise manoeuvring even in difficult operating conditions. The set’s construction meets high standards of strength and stability, making it indispensable in the industrial, logistics and construction sectors.

Main advantages of the 60-tonne machine moving skate set

• Working load capacity up to 60,000 kg – enables exceptionally heavy machines to be moved safely and in a controlled manner.
• Solid steel construction – provides resistance to heavy loads, impacts and intensive operation in industrial conditions.
• 30×65 mm transport rollers – made from abrasion-resistant material that does not leave marks on the surface, operating in crawler mode.
• Anti-slip pads – increase friction between the load and the platform, eliminating the risk of movement during transport.
• Compact dimensions and low loading height (140 mm) – make manoeuvring easier in tight spaces and technical corridors.
• Drawbar with ±90° steering angle – guarantees precise guidance of the set even where manoeuvring space is limited.

Construction and technology – design optimised for the heaviest loads

The set has been designed with durability, safety and operating ergonomics in mind. The main components are made from thick steel sections, resulting in a long service life and resistance to bending and torsion under heavy loads. The transport rollers provide low rolling resistance, while their precise mounting in the load-bearing system minimises vibration and ensures smooth movement of the load.

Key components:

• Transport platform – integrated with a Ø150 mm load-bearing surface, equipped with 30×65 mm rollers, ensuring optimum pressure distribution.
• Guide drawbar (880 mm) – enables direction control and precise manoeuvring of the load even with a limited movement range.
• Connector – 1000 mm long, allows the trolley spacing width to be configured, adapting to the load width.

Precise manoeuvring and maximum transport safety

Thanks to precise workmanship, the machine moving skate set enables stable, smooth and safe movement of even the most demanding loads. The anti-slip surface reduces the risk of the transported object shifting, while the compact geometry of the set makes movement in tight spaces easier. The integrated steering system allows the operator to control every movement of the set, even in conditions with limited visibility and difficult surfaces.

Application – an indispensable solution in heavy industry and logistics

Due to its technical parameters and functionality, the 60-tonne machine moving skate set is used in many branches of industry:

• Heavy industry – for transporting machine tools, units, production lines and large machine subassemblies,
• Construction – moving prefabricated steel components, load-bearing beams and structural elements,
• Logistics and warehousing – relocation of heavy goods in halls, terminals and distribution centres,
• Specialist transport – in close-range transport or during loading and unloading operations involving large objects.

Standard equipment

• 2 × transport platform with 16 rollers 30×65 mm
• 2 × steering drawbar with a length of 880 mm
• 2 × connector with a length of 1000 mm

Technical data of the 60-tonne machine moving skate set

Order now and increase the efficiency of heavy-load transport

60-tonne machine moving skate set is a solution for professionals who expect the highest performance and reliability. Thanks to its solid construction, compact dimensions and easy operation, this set is ideal support for everyday transport operations in industry and logistics.

Contact us or order online – secure a proven tool for relocating the largest loads!
