CNC milling machine 1325 ATC (automatic tool change)

Machine description

1. Work table

• Sectioning table with FOUR independent vacuum sections, made of stiff and durable HPL plates,
• Each section has holes to which negative pressure from a vacuum pump is supplied through a pipe system,
• The main holes in the vacuum table have caps that allow you to attach various formats of materials,
• The surface of the worktable is covered with a network of channels that allows for even distribution of the vacuum over its entire area,
• It has grooves that also enable manual attachment of the material

2. HQD spindle

• Brushless spindle from a renowned high-class manufacturer with a power of 9 kW , powered by an inverter, with overload protection.
• Milling electrospindle equipped with an innovative AIR cooling system .
• Designed for automatic tool change, which shortens machining time by eliminating downtime associated with manual cutter change.
• Automation allows the use of all tools in the production process without the need for calibration and stopping the production cycle

3.Drive

• Energy-saving high-class drives  Leadshine servo drives with 1500W power and high holding torque (Dual on the Y axis)
• controlled by the NK-105 G3 digital controller ensure excellent quality machining while maintaining high working speeds in individual directions.
• Brushless servo motors driving the X and Y axes transmit power through high-class planetary gears.
• The Z axis, where positioning precision is crucial, is driven by a reinforced ball screw.
• The gate is moved along the X and Y axes using HIWIN guide strips and helical toothed gears, which guarantee many years of failure-free operation and are made of high-quality, hardened and tempered steel.
• The professional HIWIN trapezoidal rails used in all axes are subject to compliance control, and test procedures are carried out at every stage of assembly.
• Central, maintenance-free lubrication system for the most important moving elements: carriages and ball screw. This saves time and protects the most important moving components.

4. Construction

• The structure of the sliding gate is made of cast iron, which achieves incredible stiffness and absorbs vibrations generated during processing very well.
• The rigid structure of the table, made of ribbed steel, prevents vibrations during the production process.

5. Magazine for 4 tools + tool measurement sensor

• The machine is equipped with a 4-position linear tool magazine, a set of ISO30 cones and ER32 bushings
• The set includes holders: ISO30 and sleeves for mounting tools with dimensions:
  1/2" - 6 pcs.; 1/8" - 2 pcs.; 3-4mm - 2 pcs; 5-6mm - 4 pcs; 7-8mm - 2 pcs; 9-10mm - 2 pcs.
• Each CNC milling machine is equipped with a precise Z-axis tool height sensor, which eliminates time for measurement corrections after each tool change.

The machine is equipped with the function of remembering the last G-code path. In the event of a power failure or interruption, it starts working from the last point without losing time or material.

Equipment

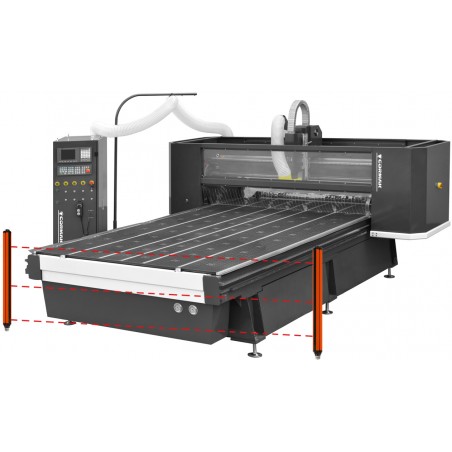

Top-class protective barriers:

• Top quality light barriers available as an option
• The safety zone designated by the sensors does not allow entering the machine's operating area
• A set of barriers ensures the operator's safety

• Air-cooled spindle, Premium version
• Leadshine servo drives with a power of 1500W

• Raised gate in the Z axis by 300mm
• Vacuum table - 4 independent vacuum sections + T-groove table for manual material clamping (handles included)
• Tool measurement sensor included
• Tools, bushing set, leveling feet, extraction foot and other accessories
• NK-105 G3 control
• The machine is equipped with the function of remembering the last G-code path (In the event of a failure or power interruption, it starts working from the last point without loss of time and material.

• The latest UCanCAM V12 software  in Polish


• Tool set:  cutters, drills, holders
