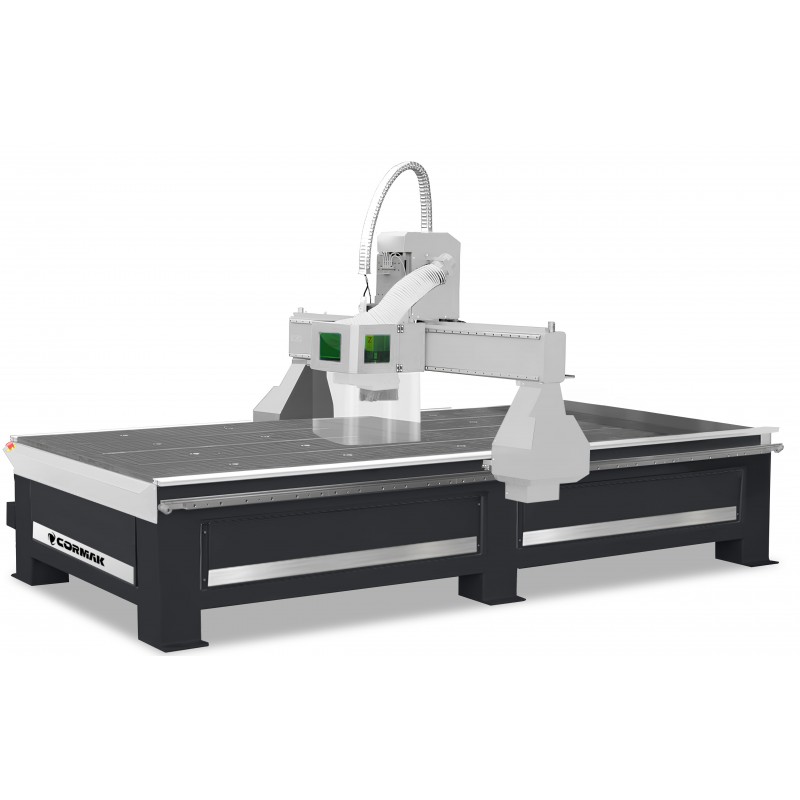

Construction

• Welded steel rigid structure,
• The gate arms are made of hardened, thick, powder-coated sheet metal, which has increased stiffness, which translates into the quality of the processed detail.

Working table

• It has T-slots enabling manual fastening of material with dimensions of 1500 x 3000 mm,

Drive

• SERVO motors used to drive high-power machine tools, provide appropriate acceleration and speed in particular directions.
• The X and Y axes use high-quality toothed racks, praised by users, which ensure high durability and precision,
• The Z axis is driven by a high-quality ball screw.
• All axes move on rail guides.
• The machine is equipped with a tool height sensor
• Linear bearing: trapezoidal rails, Hiwin carriages

Spindle

• High-quality brushless spindle that is durable.
• Additionally equipped with an innovative AIR / not liquid cooling system!
• The spindle construction uses high-quality cartridge bearings, which operate very quietly and guarantee increased durability.
• Tool height measurement sensor - included.
• The spindle speed range is from 4,500 to 18,000 rpm
• Mounting tools with 3 pcs. ER32 collets, diameters 1/8", 1/2" and 5-6 mm

Software

• The latest softwareUCanCAM V12  (the software provides the ability to import files from Corel, Autocad, etc. . File import/export, text editor and input and many other functions)
• The software enables quick and easy design of elements, which the program then converts into the so-called G-code. It is also possible to import ready-made files from other programs.

DSP control

• Digital Signal Processing Digital Signal Processing
• The DSP controller of the machine has its own processor and memory, which ensures failure-free operation and simple operation of the machine.
• The controller ensures smooth operation of the device and accuracy during processing.
• After a power loss, there is no need to initialize the program again.
• The memory built into the controller allows the machine to operate without the need to load the program each time.



We offer machines with real CE EU DTR - certified by the best in the EU.

By choosing the CORMAK brand, you choose precision of machining and long service life, peace of mind and safety for yourself or employees.

We are not looking for external companies, we have our own service (warranty/post-warranty services)

Technical parameters

ATTENTION!

The machine is equipped with the function of remembering the last G-code path. In the event of a power failure or interruption, it starts working from the last point without losing time or material.

Equipment

• Air-cooled spindle, Premium version
• Hybrid servo drives
• Raised gate in the Z axis at 350mm
• T-slot table for manual clamping of material (handles included)
• Tool measurement sensor included
• The latest softwareUCanCAM V12

• Tools, bushing set, leveling feet and other accessories
• DSP control - Digital data processing
• The machine is equipped with the function of remembering the last G-code path (In the event of a failure or power interruption, it starts working from the last point without loss of time and material.)

*Unloading and positioning of the machine on the client's side.

** Customer side power plug due to different 16a / 32a sockets
