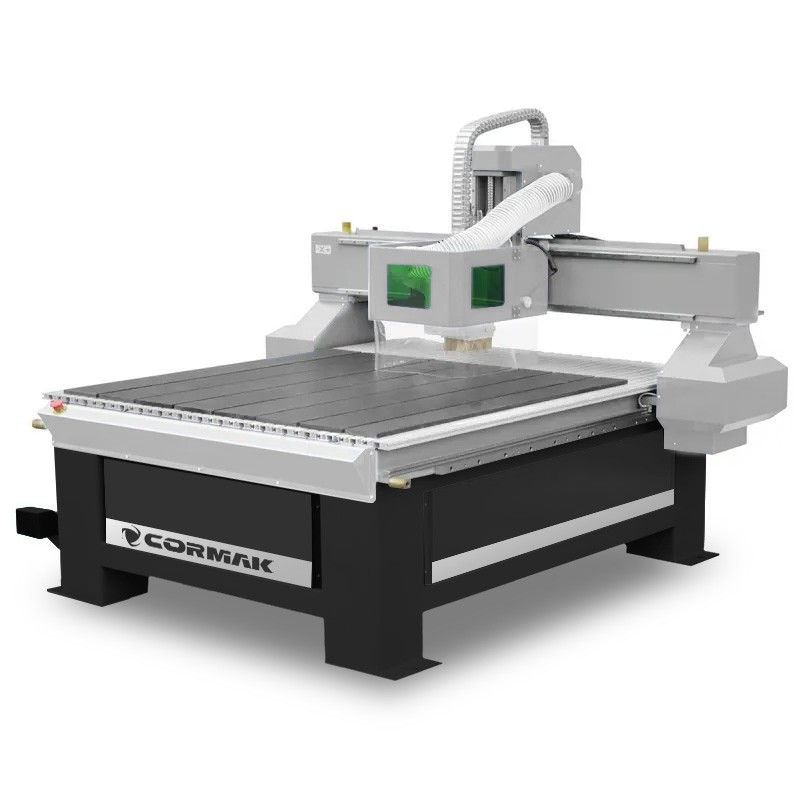

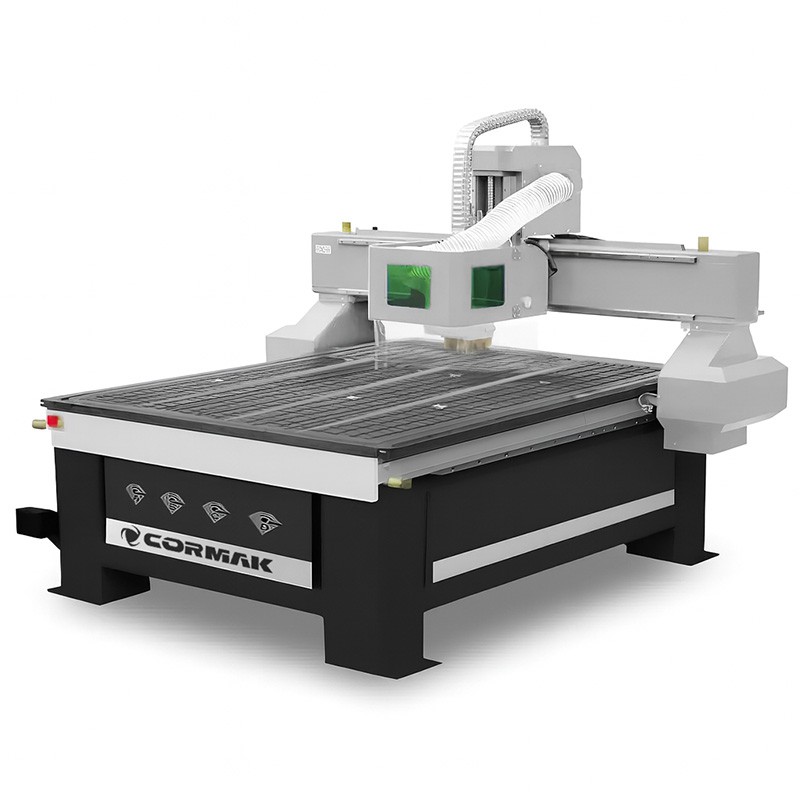

C1212 Premium CNC Milling Machine (1200x1200)

Construction

• Welded steel rigid structure,
• The arms of the gate are made of thick, powder-coated sheet metal, which has increased stiffness, which translates into the quality of the processed detail.

Workbench

• The work table was made in hybrid technology,
• It has T-slots for manual fastening of material with dimensions of 1200 x 1200mm,

Drive

• Engines used to drive high-power machine tools provide appropriate acceleration and speed in individual directions.
• The X and Y axes feature high-quality toothed bars praised by users, which ensure high durability and precision,
• The Z axis is driven by a high quality ball screw.
• All axes move on rail guides.
• Machine equipped with tool height sensor

Spindle

• The construction of the spindle uses high-quality sealed bearings, characterized by very quiet operation and guaranteeing increased durability.
• Tool height measurement sensor - included.
• Spindle speed range is 4,500 to 18,000 rpm.

Software

• Software included in the price of the machine (the software provides the ability to import files from Corel, Autocad, etc. File import/export, text editor and input, and many other functions)
• The software enables quick and easy design of elements, which the program then converts into the so-called. G-code. It is also possible to import ready-made files from other programs.

DSP control

• Digital Signal ProcessingDigital Signal Processing
• The DSP controller of the machine has its own processor and operating memory, which ensures trouble-free operation and simple operation of the machine.
• The driver ensures smooth operation of the device and accuracy in machining.
• There is no need to reinitialize the program after a power loss.
• The memory built into the controller allows the machine to work without having to load the program each time.

Technical parameters

ATTENTION!

The machine is equipped with the function of remembering the last track of the G-code. In the event of a power failure or interruption, it restarts from the last point without losing time or material.

Equipment

• Leveling Feet,
• snake,
• clamps,
• screws,
• keys,
• 2 boxes of cutters,
• 1/8, 1/2 and 5-6 mm collets

*Unloading and positioning of the machine by the customer.
