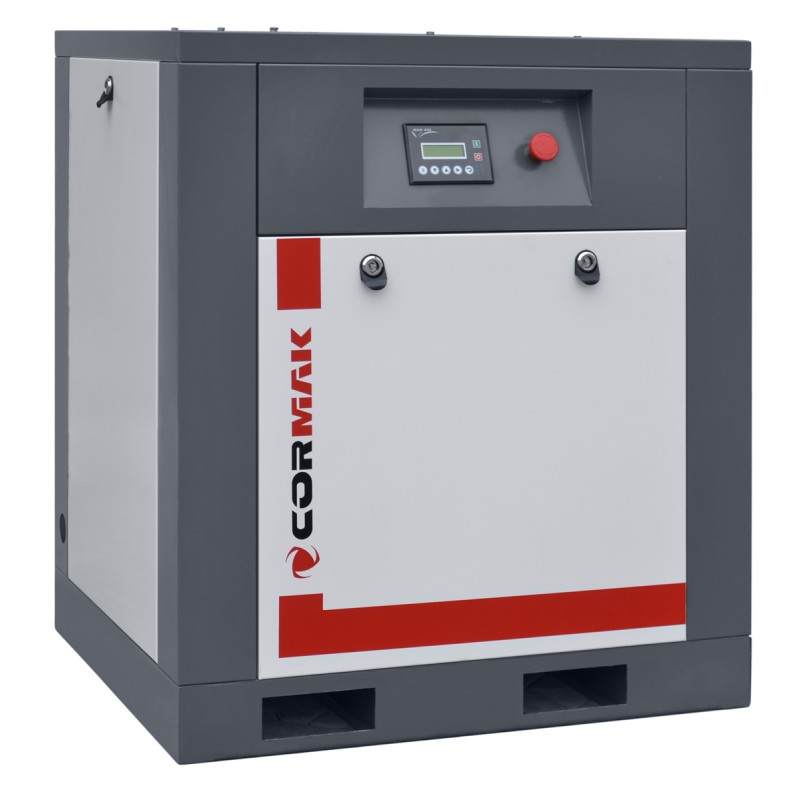

The CORMAK THEOR series screw air compressor combines the latest solutions used in pneumatics with high-quality materials and components. Low operating costs, ease of operation, ergonomic and solid construction, as well as high performance, ensure efficient and trouble-free work.
Version equipped with an INVERTER – The stepless compressor speed control system is the most economical method of regulation. The main advantage is lower power consumption compared to compressors with traditional control and maintaining constant set pressure.
Main advantages
- a strong, compact construction of the screw compressor from a European manufacturer
- automation based on modern and proven high-quality components to ensure safe and efficient operation
- a specially designed cooler ensures optimal working conditions even under heavy load
- connection of the cooler with the module through high-quality hydraulic hoses
- the applied technology enables significant energy savings
- a specially designed air outlet for more efficient operation
- a powerful and durable pump installed in the compressor
- a unique filtration system with triple separation to ensure efficient operation
- a reliable and solid drive transmission system using a belt drive, ensuring high effective performance
- low noise level of the screw compressor thanks to the specially designed sound-insulated housing (sound-absorbing panels)
- MAM series electronic control allows setting parameters such as: intervals between service inspections, power failure alarms, phase reversal, phase loss, overheating, other functions, Master/Slave operation mode, connection of up to 16 devices in a pneumatic network, remote control by computer and more
|
Technical parameters
|
|---|
|
| Motor power |
7.5 kW |
| Voltage |
400V/50Hz |
| Output at 0–6 bar |
790 L/min |
| Output at 6 bar |
750 L/min |
| Output at 8 bar |
750 L/min |
| Output at 10 bar |
730 L/min |
| Outlet |
1/2" |
| Dimensions |
800 x 700 x 930 mm |
| Weight |
185 kg |
