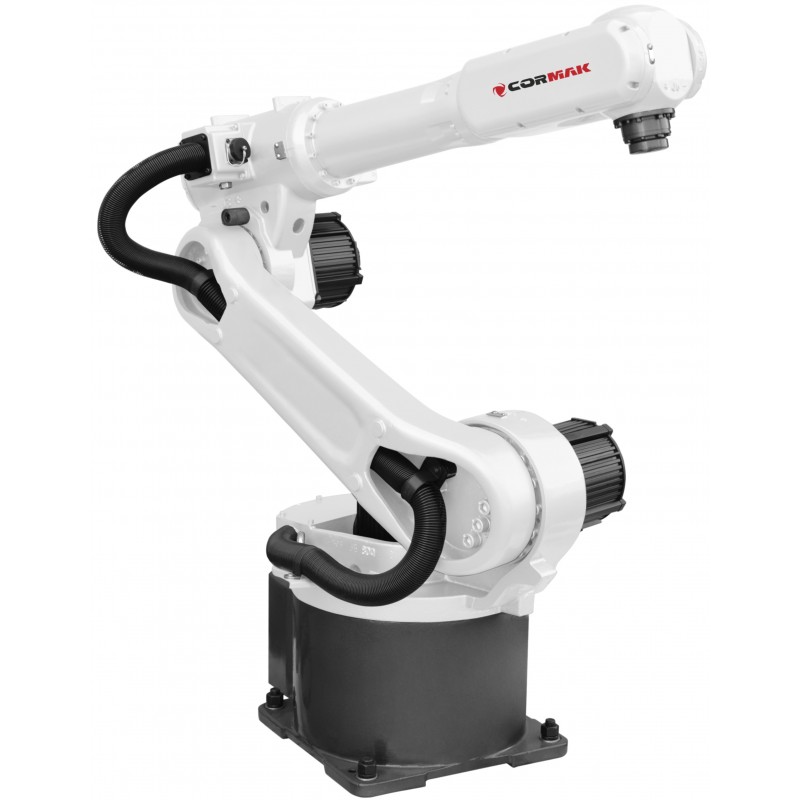

6-Axis Industrial Robot for CNC Machines and Machining Centres
Industrial robots are used with production machines such as CNC lathes and machining centres. They replace operators by loading and unloading parts, especially during long production runs where work is repetitive and monotonous.
Are you a member of the VIES group?
To use the VIES group, you must have a VAT number.
VAT included
€23,749.75
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine Features
Industrial robots are used with production machines such as CNC lathes and machining centres. They replace operators by loading and unloading parts, especially during long production runs where work is repetitive and monotonous.
- Industrial robots do not tire, fall ill, or take holidays
- Reduced production costs by increasing speed and efficiency
- Three-shift operation without additional labour costs
- Elimination of human errors (e.g. operator fatigue)
- Improved competitiveness and prestige of your enterprise
Technical Specifications
|
NUMBER OF AXES |
6 |
|
DRIVE SYSTEM |
AC servomotor |
|
MAXIMUM PAYLOAD |
8 kg |
|
MAXIMUM REACH |
1490 mm |
|
POSITIONING REPEATABILITY |
±0.05 mm |
|
RANGE OF MOTION |
|
|
AXIS J1 |
±170º |
|
AXIS J2 |
+120º~-85º |
|
AXIS J3 |
+85º~-150º |
|
AXIS J4 |
±180º |
|
AXIS J5 |
±135º |
|
AXIS J6 |
±360º |
|
NOMINAL SPEED |
|
|
AXIS J1 |
200º/s |
|
AXIS J2 |
200º/s |
|
AXIS J3 |
200º/s |
|
AXIS J4 |
400º/s |
|
AXIS J5 |
356º/s |
|
AXIS J6 |
600º/s |
|
WEIGHT |
185 kg |
Optional Equipment
- GRIPPER-MANIPULATOR*
- MACHINE TECHNOLOGICAL PREPARATION
- SIEMENS SOFTWARE
*The price quoted applies to the robot only, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
Brzeska 120, 08-110 Siedlce, Poland
