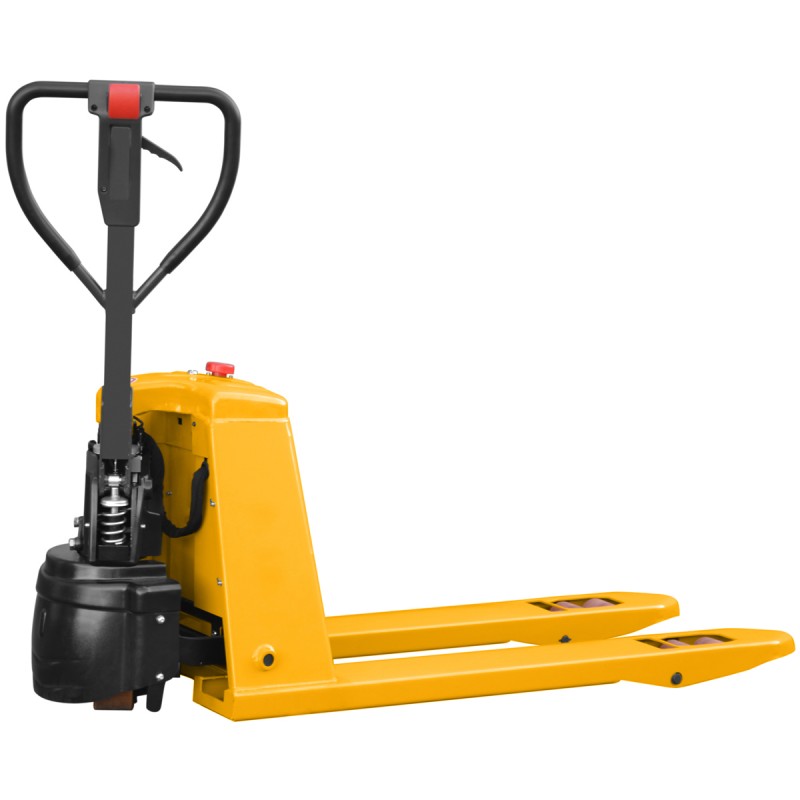

Electric Pallet Truck Q20 – an advanced solution for heavy load transport
Electric pallet truck Q20 is a unique device designed for efficient handling of pallets and loads exceeding 350 kg, with a maximum capacity of 2 tonnes. It is an indispensable tool in warehouses, production halls, and other logistics environments where fast, safe, and efficient material handling is required.
Main advantages of the Q20 truck
- Load capacity 2 tonnes – allows for transport of heavy loads under various working conditions, making it ideal for industries requiring high lifting capacity.
- Ergonomic control handle – ensures operator comfort with an intuitive control panel and a slow-speed mode button.
- Maintenance-free 50Ah AGM battery – provides reliability, long operating time, and easy charging anywhere thanks to a built-in charger.
- Brushless motor – delivers high efficiency, quiet operation, and long service life without the need for maintenance during the warranty period.
- Variable speed control – allows smooth adjustment of travel speed to match working conditions.
- Polyurethane wheels – offer excellent resistance to abrasion and mechanical damage, ensuring quiet and stable movement.
Design and technology
The Q20 truck features a modern brushless motor providing not only excellent performance but also quiet and reliable operation. The maintenance-free 50Ah AGM battery ensures long life and minimal downtime. The integrated charger allows for convenient charging anywhere, which is especially valuable in intensive work environments.
The truck’s turning radius of 1350 mm enables smooth manoeuvring in tight warehouse spaces, offering full operator control when handling loads.
Precision and work efficiency
The Q20 electric truck enables smooth lifting of loads thanks to its powerful 0.8 kW lifting motor. The maximum fork height of 200 mm ensures sufficient clearance for handling large pallets. With the integrated speed control potentiometer, the operator can precisely adjust the travel speed to the working environment, reducing collision risk and improving operational efficiency.
The “turtle mode” allows for slower, controlled movement — particularly useful in narrow warehouse aisles and on loading platforms. This feature gives the operator full control, significantly enhancing workplace safety.
Applications
The Q20 electric pallet truck is suitable for a wide range of industries, including:
- Warehouses and distribution centres where transporting heavy loads is part of daily operations.
- Production plants where precise movement of materials between sections is required.
- Wholesale and retail facilities where efficiency and manoeuvrability in narrow aisles are crucial.
- Transporting heavy goods in demanding environments requiring high capacity and agility.
Standard equipment
- Maintenance-free 50Ah AGM battery
- Built-in charger for charging anywhere
- Ergonomic control handle with slow-speed button
- Polyurethane wheels (Ø210 mm)
- High-performance brushless motor
Technical data
| Load capacity |
2,000 kg |
| Turning radius |
1350 mm |
| Wheel size |
210 x 70 mm |
| Outer fork width |
560 mm |
| Inner fork width |
240 mm |
| Lowered fork height |
85 mm |
| Raised fork height |
200 mm |
| Fork length |
1150 mm |
| Drive motor |
0.75 kW |
| Lifting pump motor |
0.8 kW |
| Battery voltage/capacity |
24/50 V/Ah |
| Travel speed (with/without load) |
3.5 / 4 km/h |
| Maximum gradient (with/without load) |
2 / 6 % |
| Weight |
180 kg |
| Dimensions |
1700 x 560 x 1220 mm |
Order the electric pallet truck Q20 now and optimise your company’s internal transport processes. Contact our sales department for more information and a personalised offer!
