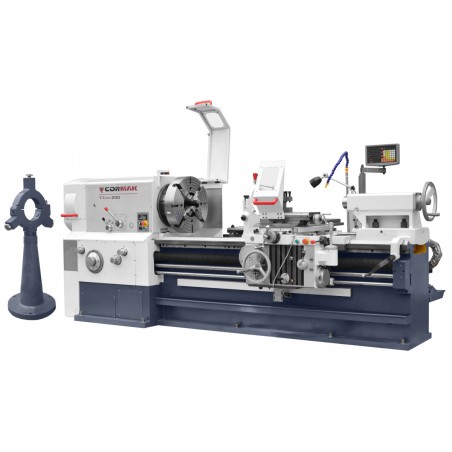

Universal Pipe Lathe CORMAK T-TURN 225 630x1300

CORMAK T-TURN 225 is an industrial universal lathe designed for precise machining of pipes and large metal workpieces. With an oversized spindle bore of Ø200 mm and a robust structure based on a massive cast-iron bed, this machine offers exceptional stability, precision, and reliability even under intensive operation. It is a solution dedicated to demanding users seeking an efficient and durable conventional lathe.

Main advantages of the machine

• High structural rigidity – thanks to the heavy cast-iron bed
• Spindle bore Ø200 mm – enables efficient machining of pipes and shafts
• Torque up to 2,050 Nm – provides machining power across the full speed range
• Hardened and ground guides – durability and precision of slide movement
• 7.5/9 kW motor – ensures reliable operation in S1 and S6 duty cycles
• Double-sided mounting system – lathe chucks on both sides of the headstock
• Efficient cooling system – maintains temperature stability during long-term processes

Design and technology

The structure of the CORMAK T-TURN 225 lathe is based on a solid, heavy-duty body that significantly reduces vibration and ensures repeatable cutting parameters. The headstock is mounted on precision bearings, guaranteeing high rotational stability, while the gearbox with hardened gears provides quiet and trouble-free operation. The design of the slides and guides allows for intensive use while maintaining precision even after many years of operation.

Precision and performance

The machine offers a spindle speed range of 24 to 300 rpm, which, combined with high torque and a Ø500 mm chuck, allows safe and efficient machining of large and heavy components. Rapid feeds on the X and Z axes (3,000 and 4,000 mm/min respectively) significantly shorten operation time, while the 4-position tool post facilitates work organisation and quick tool change.

Applications

The CORMAK T-TURN 225 metal lathe is designed for industrial plants and maintenance workshops handling large components. It is successfully used in industries such as:

• energy and petrochemical industry,
• production and regeneration of pipes, sleeves, flanges,
• maintenance departments in industrial plants,
• hydraulic and gas industry,
• technical service of large mechanical structures.

Standard equipment

• 3-axis position display
• 4-position tool post
• 3-jaw chuck Ø500 mm
• 4-jaw faceplate chuck Ø520 mm
• Taper turning attachment
• Cooling system
• User manual

Optional equipment

• Supports for long shafts and pipes
• Quick-change chucks
• Central lubrication system
• Specialised pipe clamping systems
• Additional covers and safety systems

Technical data

Order a proven metal lathe – choose CORMAK T-TURN 225

If your production requires machining of large-diameter pipes and components, the CORMAK T-TURN 225 conventional lathe meets these requirements with the highest precision. Contact us to learn more about pricing, stock availability and additional equipment options.
