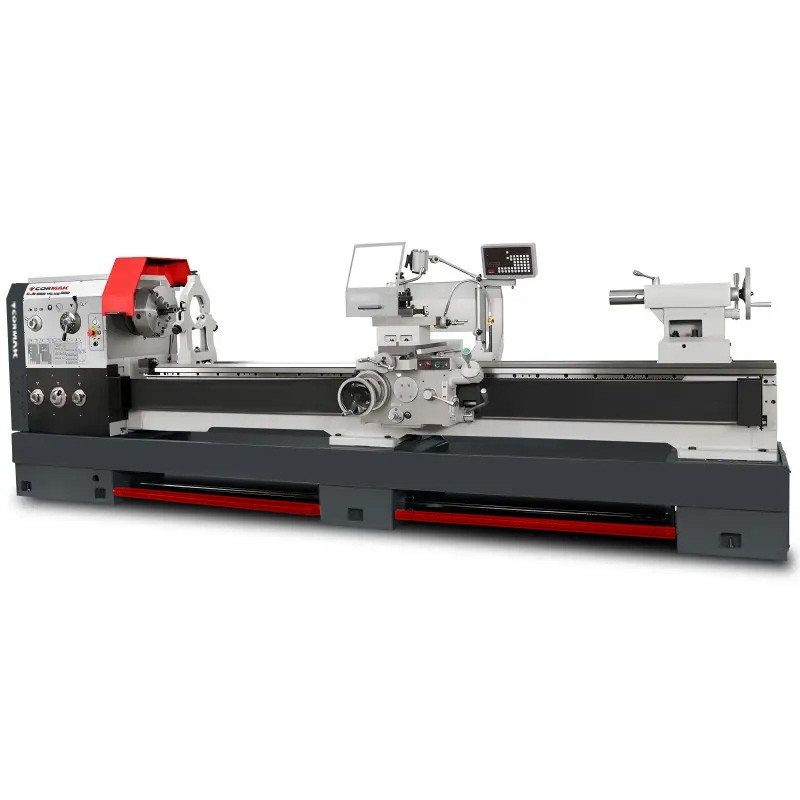

GOLIATH 660x3000 Universal Lathe
CORMAK GOLIATH 660 is intended specifically for industrial production of individual elements. The basic version comes with a multitude of additional elements, considerably increasing its area of application.
Variant
GOLIATH 660x4000 Universal Lathe
560x2000 Universal Lathe
GOLIATH 660x2000 Universal Lathe
CORMAK 660x2000 universal lathe FREE SPEED
Are you a member of the VIES group?
VAT included
€24,600.00
The lowest price of this product in the last 30 days before the discount was €22,112.50 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Equipment dependent on the version
- 3-jaw lathe chuck
- 4-jaw lathe chuck
- Face plate
- Steady rest
- Follow rest
- Digital readout for 3 axes
- Spindle reducing sleeve
- Dead centre
- Change gears for the swing-frame of the gear train
- Cooling system
- 24V halogen lighting
- Thread indicator
- Set of tools
- User manual
- EC declaration of conformity
- Cylindrical and internal grinding machine
- Taper ruler
- Quickly replacing tool post multifix
- Quickly replacing cutter holder
Technical data
|
Swing over bed |
ɸ660 mm |
|
Swing over cross slide |
ɸ420 mm |
|
Swing over gap |
ɸ870 mm |
|
Turning length over gap |
240 mm |
|
Maximum length of workpiece |
3000 mm |
|
Maximum turning length |
2950 mm |
|
Spindle bore |
ɸ105 mm |
|
Spindle mount |
ɸ113 mm 1:20 |
|
Spindle taper |
Cam-lock D1-8 |
|
Spindle speed |
12 steps, 36-1600 rpm |
|
Longitudinal feed range |
65 types; 0.063-2.52 mm/rev |
|
Transverse feed range |
65 types; 0.027-1.07 mm/rev |
|
Number and types of threads |
|
|
Metric thread |
1-14 mm, 22 types |
|
Inch thread |
28-2 turns/cal, 25 types |
|
Modular thread |
0.5–7 mm, 18 types |
|
D.P. thread |
56-4 DP, 24 types |
|
Rapid longitudinal feed |
4.5 m/min |
|
Rapid transverse feed |
1.9 m/min |
|
Lead screw thread stroke |
12 mm |
|
Spindle height for tool surface bearings |
28 mm |
|
Tool section |
25 mm x 25 mm |
|
Toolholder angle |
+/- 90° |
|
Maximum displacement of knife holder |
145 mm |
|
Transverse slide travel |
310 mm |
|
Tailstock spindle diameter |
75 mm |
|
Tailstock quill taper |
MK5 |
|
Maximum displacement of lathe live centre |
150 mm |
|
Tailstock transverse displacement |
+/- 15 mm |
|
Motor power and speed |
7.5 kW; 1450 rpm; 50 Hz |
|
Weight |
3790 kg |
|
Dimensions (LxWxH) |
4632 mm x 975 mm x 1450 mm |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
