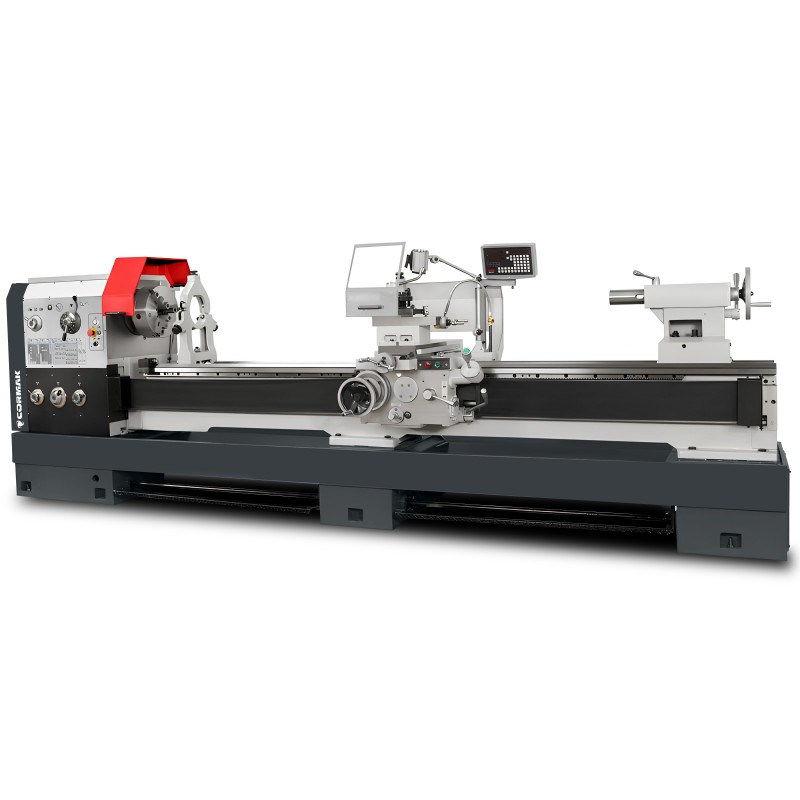

Goliath 660x1500 Universal Lathe
CORMAK GOLIATH 660 is intended specifically for industrial production of individual elements. The basic version comes with a multitude of additional elements, considerably increasing its area of application.
Are you a member of the VIES group?
VAT included
€21,525.00
The lowest price of this product in the last 30 days before the discount was €20,965.35 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Equipment dependent on the version
- 3-jaw lathe chuck
- 4-jaw lathe chuck
- Face plate
- Steady rest
- Follow rest
- Digital readout for 3 axes
- Spindle reducing sleeve
- Dead centre
- Change gears for the swing-frame of the gear train
- Cooling system
- 24V halogen lighting
- Thread indicator
- Set of tools
- User manual
- EC declaration of conformity
- Cylindrical and internal grinding machine
- Taper ruler
- Quickly replacing tool post multifix
- Quickly replacing cutter holder
Technical data
|
Swing over bed |
660 mm |
|
Swing over cross slide |
440 mm |
|
Swing over gap |
900 mm |
|
Turning length over gap |
250 mm |
|
Centre distance |
1500 / 2000 / 3000 mm |
|
Bed |
inductively hardened |
|
Bed width |
400 mm |
|
Lathe chuck diameter |
315 mm |
|
Spindle bore |
105 |
|
Spindle taper |
D1–8 mm |
|
Spindle mount |
113 (1:20) / MK5 mm |
|
Spindle speed |
26–1700 rpm |
|
Maximum tool dimensions |
25×25 mm |
|
Longitudinal feed range |
0.044–1.48 mm/turn |
|
Transverse feed range |
0.022–0.74 mm/turn |
|
Metric thread |
0.45–120 mm |
|
Inch thread |
7/16–80 T.P.I. |
|
Modular thread |
0.25–60 M.P. |
|
D.P. thread |
7/8–160 D.P. |
|
Rapid feed |
longitudinal 4.2, transverse 1.9 m/min |
|
Tailstock quill diameter |
90 mm |
|
Tailstock quill extension |
235 mm |
|
Tailstock quill taper |
MK5 |
|
Main motor power |
7.5 kW |
|
Flood coolant pump power |
0.1 kW |
|
Dimensions (L×W×H) |
3710×1135×1440 mm |
|
Net weight (kg) |
3600 |
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
