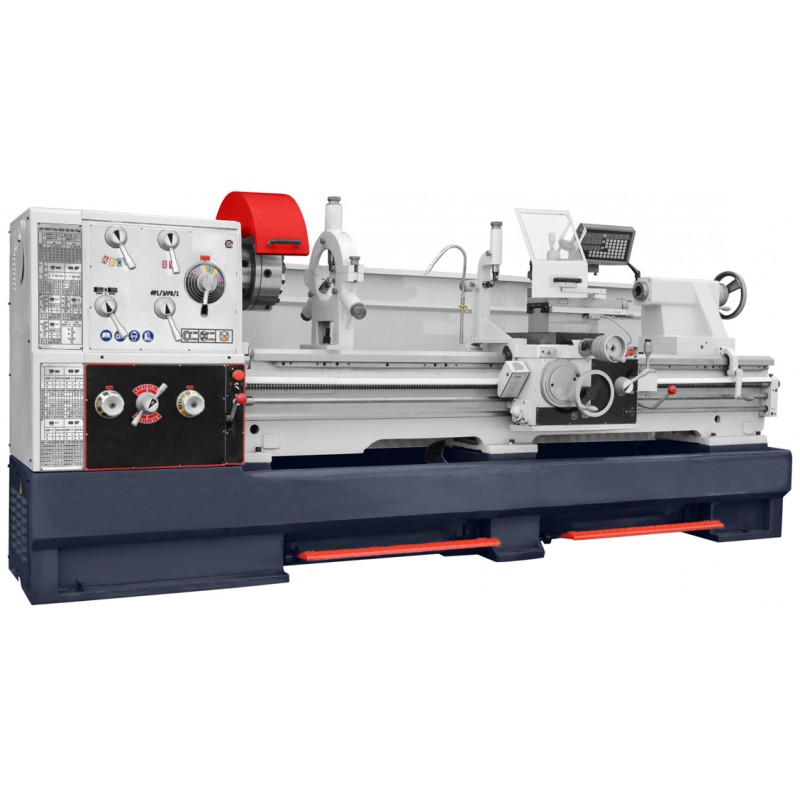

660x1500 Industrial Lathe
The 660 series lathes for turning metal are equipped with rapid feeds, a multi-plate clutch and digital readouts. Due to the newest solutions and its equipment, the lathe is suitable for professional and industrial work.
Are you a member of the VIES group?
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine features
The 660×1500/2000 series modern lathe is equipped with rapid feeds, a multi-plate clutch and digital readout, due to which the lathe is suitable for professional and industrial work.
- Inductively hardened and precisely ground bed
- Massive cast iron structure of the machine
- Lathe equipped with a quick longitudinal and transverse movement
- Main arbor with ball bearings
- 105 mm spindle bore
- Digital readouts for 3 axes
Technical data
|
Swing over bed |
660 mm with an LCD readout |
|
Swing over cross slide |
460 mm |
|
Swing over gap |
900 mm |
|
Centre distance |
1500/2000/3000 mm |
|
Bed |
inductively hardened |
|
Bed width |
400 mm |
|
Lathe chuck diameter |
315 mm |
|
Spindle bore diameter |
105 mm |
|
Spindle taper |
D1-8 DIN 55029 |
|
Spindle speed |
25–1700 rpm |
|
Maximum tool dimensions |
25×25 mm |
|
Longitudinal feed range |
0.044–1.480 mm/turn |
|
Transverse feed range |
0.022–0.740 mm/turn |
|
Metric thread |
0.35–120 mm |
|
Inch thread |
7/16–80 Gg/1" |
|
Tailstock quill extension |
235 mm |
|
Tailstock quill taper |
MK5 |
|
Digital readout |
for 3 axes |
|
Main motor power |
7.5 kW |
|
Dimensions |
3630×1200×1700 mm |
|
Net weight |
3800 kg |
Equipment dependent on the model
- PS3-315/D8 3-jaw chuck
- 400 mm face plate
- 450 mm clamping plate
- Digital readout for 3 axes
- 4-way tool post
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
