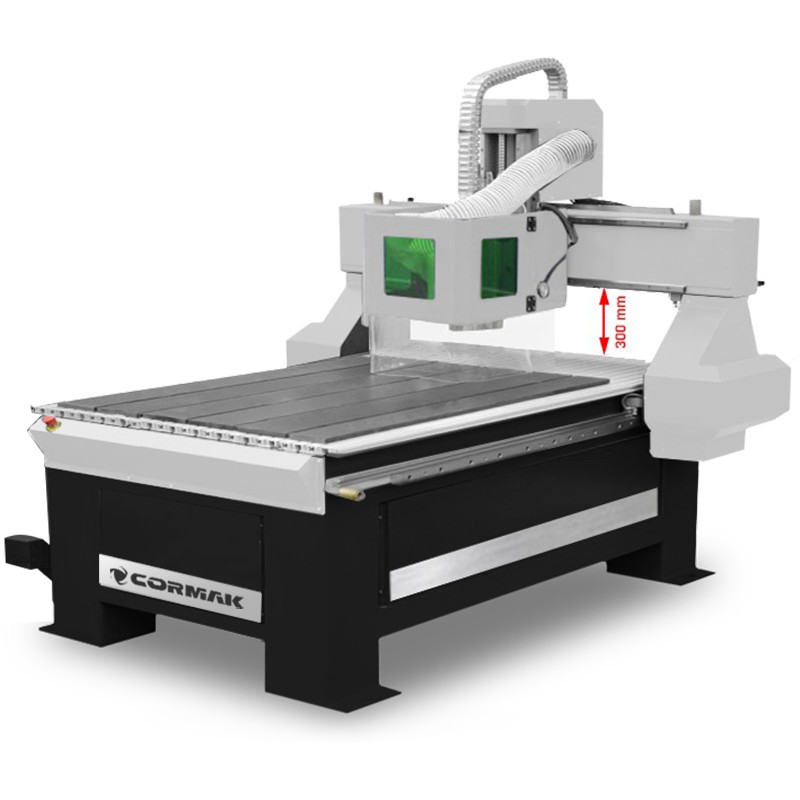

C6090 CNC Milling Machine (600x900)

Drive

• The engines used to drive high-power machine tools provide appropriate acceleration and speed in individual directions.
• The X and Y axes are equipped with high-quality toothed bars praised by users, which ensure high durability and precision,
• The Z axis is driven by a high quality ball screw.
• All axles move on rail guides.
• The machine is equipped with a drive height sensor

Spindle

• High-quality brushless spindle that is characterized by durability.
• Liquid cooling system
• The spindle design uses high-quality machine bearings, which are characterized by very quiet operation and guarantee increased durability.
• Tool height measurement sensor - included.
• The spindle speed range is 6000 to 24000 rpm.

Software

• OPTIONALLY The latest UCanCAM V12 software  in Polish language version (the software provides the ability to import files from Corel, Autocad, etc. File import/export, text editor and input and many other functions)
• The software enables quick and easy design of elements, which the program then converts to so-called G-code. It is also possible to import ready files from other programs.
• The machine is equipped with a function of remembering the last G-code path (In the event of a failure or power outage, it starts working from the last point without losing time or material.)

DSP control

• Digital Signal Processing Digital Signal Processing
• The machine's DSP controller has its own processor and RAM, which ensures failure-free operation and simple operation of the machine.
• The controller ensures smooth operation of the device and accuracy during processing.
• There is no need to reinitialize the program after a power loss.
• The memory built into the controller allows the machine to operate without having to load the program each time.



We offer machine tools with real CE EU DTR - certified by the best in the EU.

By choosing the CORMAK brand, you choose precision machining and long service life, peace and safety for yourself or your employees.

We do not look for external companies, we have our own service (warranty/post-warranty services/training/start-ups/machine presentations) at our CORMAK headquarters

Technical parameters

Equipment

• leveling feet,
• screws,
• keys,
• training cutter package,
• ER32 Collets - 1/8 inch, 1/2 inch, and 5-6 mm

Unloading and positioning of the machine on the customer's side.

Power plug on customer side due to different sockets 16A / 32A
