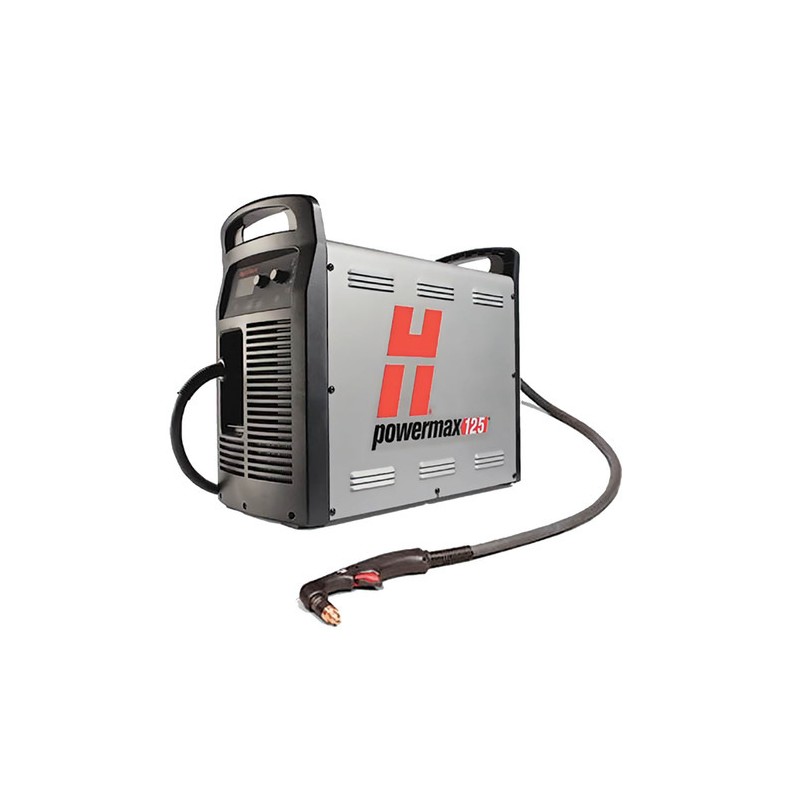

Plasma Source POWERMAX 125

Handheld or mechanised plasma system for metal cutting and gouging.

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

€13,475.00

Product available on request. Please contact our sales department.

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Maximum Productivity

• With cutting speeds up to five times faster, mild steel cutting tasks of 12 mm thickness are completed much quicker than with oxy-fuel systems.

• Outstanding cutting and gouging quality means less grinding and edge preparation time.

• Maximised cutting time thanks to a 100% duty cycle.

Low Operating Costs

• Reduce expenses by using consumables that last up to four times longer than those in other systems of similar power.

• Electrode wear detection technology protects both the torch and the workpiece by automatically shutting down power when the electrode is excessively worn.

Ease of Use in Cutting and Gouging

• No need to adjust air pressure manually — Smart Sense™ technology ensures the correct setting every time.

• Perform a wide range of tasks using multiple, easy-to-operate torch types.

Built and Tested to Withstand the Toughest Work Conditions

• Duramax™ Hyamp torches are designed for high power and heat resistance.

• SpringStart™ technology ensures consistent starting performance and extends torch life.

• Low maintenance requirements and maximum uptime.

Technical Specifications
Input voltages	400 V, 3 phases, 50/60 Hz
Input current at 21.9 kW	400 V, 3 phases, 36 A
Output current	30–125 A
Rated output voltage	175 V DC
Duty cycle at 40 °C	100% at 125 A, 400 V, 3 phases
Open-circuit voltage (OCV)	305 V DC
Dimensions with handles	592 x 274 x 508 mm (L x W x H)
Weight with 7.6 m torch	48.9 kg
Gas supply	Clean, dry, oil-free air or nitrogen
Recommended inlet gas flow / pressure	Cutting: 260 L/min at 5.9 bar Gouging: 212 L/min at 4.1 bar
Input power cable length	3 m
Power supply type	Inverter — IGBT (insulated-gate bipolar transistor)
Required rated drive power	40 kW at full current 125 A
Compliance	CE, C-Tick, CU/GOST, Ukr and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other approved countries.
