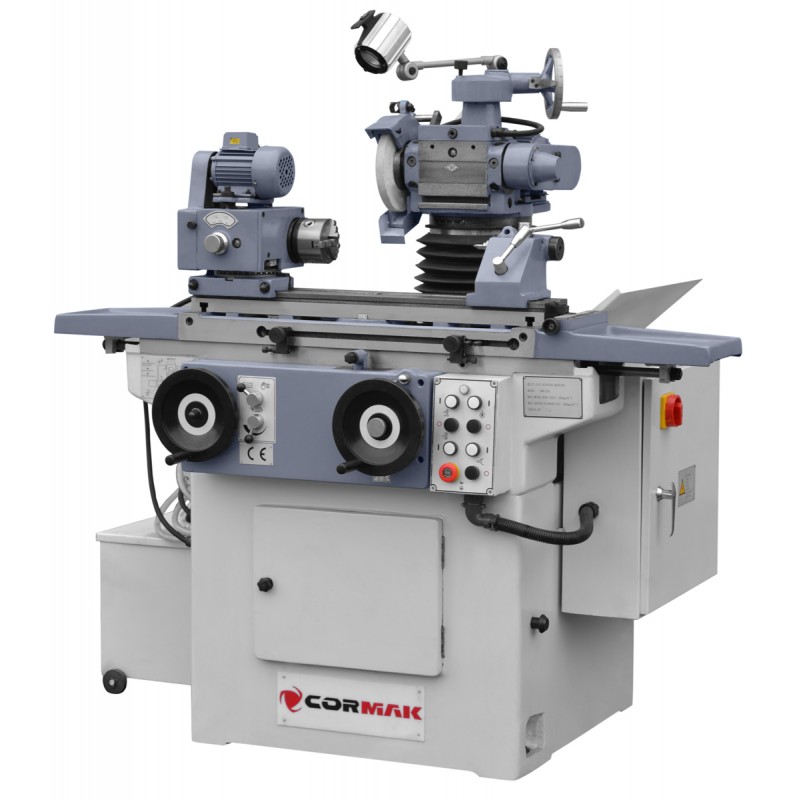

Universal Tool Grinding Machine CORMAK USM5000

Reduced price

The universal grinding machine offers a wide range of applications — from external and internal cylindrical grinding to taper, flat surface, and tool grinding (sharpening). Key advantages include a solid construction (1300 kg), a three-point spindle bearing system, automatic hydraulic feed, and rich standard equipment.

Have questions? Call us!

+48 25 631 00 27 ext.130

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

VAT included

~~€20,141.25~~

€19,034.25

The lowest price of this product in the last 30 days before the discount was €19,034.25 gross

There are not enough products in stock

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Technical parameters
Maximum workpiece diameter	Ø200 mm
Maximum workpiece length	500 mm
External grinding range	Ø5 – 50 x 400 mm
Internal grinding range	Ø10 – 50 x 75 mm
Tool grinding range	200 x 500 mm
Flat grinding range	100 x 50 mm
Workpiece weight	10 kg
Headstock taper	MK2
Headstock spindle speed	110 / 200 / 300 rpm
Headstock swivel range	±90°
Chuck diameter	100 mm
Vertical headstock travel (manual)	200 mm
Cross headstock travel (manual)	200 mm
Height adjustment scale division	0.01 mm
Height adjustment per handwheel revolution	1 mm
Fine/coarse cross-feed scale	0.0002 / 0.0005 mm
Cross-feed per handwheel revolution	1 / 4 mm
Grinding spindle horizontal swivel range	±90°
Grinding spindle speed	2950 rpm
Max. grinding wheel dimensions (diameter x width x bore)	Ø200 x 20 x Ø75 mm
Internal grinding spindle speed	16000 rpm
Grinding depth	Ø25 x 20 x Ø6 mm / Ø10 x 10 x Ø3 mm
Maximum table longitudinal travel	480 mm
Table longitudinal feed speed (hydraulic)	0.1–6 m/min
Table swivel range	+45° / –30°
Tailstock taper	MK2
Quill travel	14 mm
Total motor power	2.525 kW
Grinding wheel motor power	1.1 kW
Overall dimensions	1520 x 1142 x 1338 mm
Weight	1350 kg
