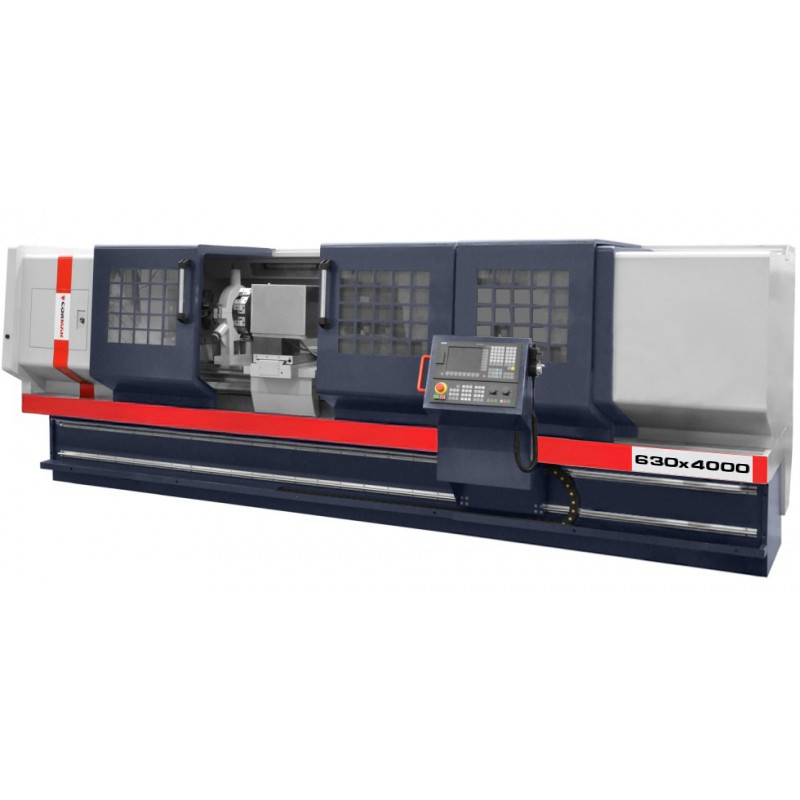

CNC LATHE CORMAK CKT630X6000 SIEMENS SINUMERIK

Our unique CKT630x6000 CNC Lathe is the perfect solution for both experienced specialists and those starting out in serial and individual production. The series of heavy lathes has been designed with maximum cutting efficiency in mind, ensuring optimal results even with intensive use.

Thanks to wide guides and an extremely solid construction, the machine guarantees stability, high precision and repeatability of processing. It is a reliable tool that will work well in any professional production plant.

Variant

CNC LATHE CORMAK CKT630X4000 SIEMENS SINUMERIK

CNC LATHE CORMAK CKT630X5000 SIEMENS SINUMERIK

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

Yes - show prices with VAT 0%

VAT included

€94,925.25

The lowest price of this product in the last 30 days before the discount was €9,492.53 gross

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

CKT630x6000 CNC Lathe – Professional Precision and Reliability in Metalworking

Why choose our lathe?

Solid construction: The machine has been designed with durability and resistance to intensive use in mind. Its stable construction guarantees reliable operation even with long-term use.
Precision machining: Advanced turning functions enable precise machining of parts of various shapes and sizes, ensuring the highest level of precision.
Intuitive operation: Simple and clear control makes it easier for both experienced operators and people who are just starting their adventure with CNC. Reduced programming time translates into greater efficiency and ease of use.

Technical data of the CKT630X6000 CNC lathe

Control	Sinumerik 808
Center spacing	6000 mm
Turning diameter over bed	630 mm
Turning diameter over support	450 mm
Bed width	600 mm
Lathe chuck	manual
Tailstock	manual
Spindle nose	A2-11
Spindle bore	130 mm
Tool post	4-position (OPTION 6,8)
Spindle speed	30–800 rpm
Maximum X-axis travel	330 mm
Accelerated feed X/Z axis	6/8 m/min
Tailstock quill diameter	75 mm
Maximum tailstock quill travel	250 mm
Tailstock quill taper	MK5
Motor power	15 kW
Weight	9100 kg

Available equipment

SIEMENS SINUMERIK 808 control in Polish
SIEMENS servo drives
Manual 3-jaw lathe chuck
4-position turret head
Soft jaw set
Manual tailstock
Steady rest
Cooling system
Automatic lubrication system for gears and guides
24V halogen lighting
Technical and operational documentation (DTR) in Polish

Optional equipment

Available controls: SINUMERIK 828, Fanuc, GSK
Moving steady rest
Hydraulic chuck
Hydraulic tailstock
Steady rest
Tool probe
Chip conveyor
Additional soft jaws
Hard jaws
Collet chucks
Machined parts gripper
Bar feeder
Tool holders
CAD/CAM software

CNC controls – Siemens Sinumerik 808D, SINUMERIK 828D and Fanuc Oi-TF

We offer professional CNC controls from renowned brands Siemens and Fanuc, which provide precision, efficiency and ease of use. Our solutions are ideal for both smaller workshops and demanding industrial applications.

Siemens Sinumerik 808D – compact CNC control for basic applications

Siemens Sinumerik 808D is a modern, economical CNC control dedicated to entry-level lathes and milling machines. The system was designed with small and medium-sized enterprises in mind, offering:

Intuitive operation – a simple interface based on a graphic screen that makes it easy to program and configure the machine.
High reliability – a durable design resistant to difficult working conditions in the workshop.
Wide compatibility – adapted to machines with basic technological requirements.
A perfect solution for beginner CNC users who want to start working on a modern control system.

Siemens Sinumerik 828D – advanced control for demanding applications

Sinumerik 828D is a professional CNC control designed to work with milling machines and lathes requiring greater precision and efficiency. Its key features include:

High computing power – fast data processing enables dynamic and accurate machining.
Extensive technological functions – advanced machining cycles, interpolation and tool path optimization functions.
Solid, compact design – designed to work in difficult industrial conditions.
Easy integration with automation – expandable with additional modules and production process control options.
Compatibility with CAD/CAM – seamless cooperation with design software and production management systems.

This is an excellent choice for companies looking for efficient and reliable CNC control for more complex machining operations.

Fanuc Oi-TF – stability and precision in machining lathe

Fanuc Oi-TF is one of the most popular CNC controls for lathes, known for its reliability and ease of use. This system is widely used in the metalworking industry thanks to:

Exceptional work stability – reliability and precision of operation even in long-term serial production.
Advanced turning functions – supports various turning cycles, including thread turning, grooving, drilling and other cutting operations.
Intuitive user interface – quick programming and easy operation thanks to a clear screen and optimized menu.
Wide compatibility – ability to work with many models of turning machines.
Effective process optimization – the Fanuc system allows for better control over machining parameters, which saves time and materials.

Thanks to Fanuc Oi-TF, users gain the certainty of stable and precise work, which translates into greater efficiency and quality of machining.

Choosing the right CNC control is crucial for the efficiency and precision of machining. Siemens Sinumerik 808D is the ideal solution for basic applications, Siemens Sinumerik 828D will work well in more demanding production processes, while Fanuc Oi-TF guarantees the highest stability and reliability in lathe machining.

Contact us - we will help you choose the CNC control best suited to your needs!

Manufacturer: Cormak
