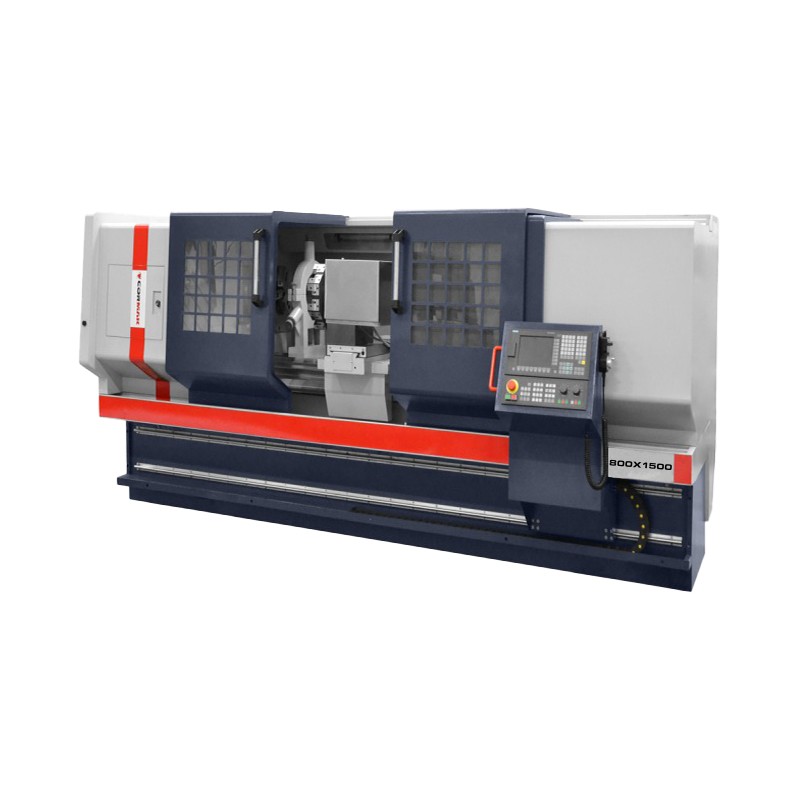

800x1500 CNC Lathe
This lathe saves the actions of its operator and automatically converts them into G-code. Afterwards, the operator can press the playback button in order to achieve an identical copy of the workpiece. This cuts in half the amount of time required to configure the CNC lathe, and increases efficiency by 62%. Standard CNC lathe functions extended by the capabilities of a conventional lathe. Manual feed of the X and Z axes via 2 electronic knobs with a semi-automatic transition by defining individual cycles.
Variant
800x2000 CNC Lathe
800x3000 CNC Lathe
copy of 800x3000 CNC Lathe
copy of 800x3000 CNC Lathe
copy of 800x3000 CNC Lathe
copy of 800x3000 CNC Lathe
copy of 800x3000 CNC Lathe
Are you a member of the VIES group?
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine characteristics
- Semi-automatic transition by defining individual cycles: taper turning, threading
- SINUMERIK 808D: entry-level for standard CNC machines
- Manual feed of the X and Z axes via 2 electronic knobs
- Cycles interface adapted to the user for easy programming of parts – broad programming possibilities from setting turning cycles to full programming of parts
- Guides tempered inductively
- Very dynamic main spindle drive thanks to actuators
- Serial clamping chuck 200 mm with regulated force
- The machine requires low maintenance thanks to central lubrication intelligent unit
- Longitudinal and cross feed with high quality feed screws
- 6-position turret gun – increases the automation degree and efficiency, saves time with complex elements.
Technical data
|
MAXIMUM TURNING LENGTH |
1500 mm |
|
MAXIMUM TURNING DIAMETER |
800 mm |
|
SWING OVER SLIDE |
520 mm |
|
BED WIDTH |
600 mm |
|
SPINDLE BORE |
104 mm (130 mm optional) |
|
SPINDLE SPEED |
22-108,60-300,240-1200 RPM |
|
X/Z AXES MAXIMUM TRAVELLING |
420/1350, 2850 mm |
|
X/Z AXES ACCELERATED rapid speed |
4/8 m/min |
|
POSITIONING ACCURACY |
0,03/0,04 mm |
|
X/Z AXES REPEATABILITY |
0,012/0,02; 0,025 mm |
|
TAILSTOCK SPINDLE DIAMETER |
100 mm |
|
MAXIMUM TAILSTOCK SPINDLE FEED |
250 mm |
|
TAILSTOCK SPINDLE TIP |
MT5 |
|
MAXIMAL LOAD CAPACITY |
1500 kg |
|
MOTOR POWER |
15 kW |
|
WEIGHT |
6100 kg |
|
DIMENSIONS |
4307 × 2040 × 1855 mm |
Equipment dependent on the revision
- Spindle pass 130 mm
- 6-position tool gripper
- Knobs
- 3-jaw chuck 650 mm
- Chuck + hydraulic tailstock
- FANUC, FAGOR, SIEMENS 828D control systems
- Steady rest + follow rest
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like
16 other products in the same category:
This lathe saves the actions of its operator and automatically converts them into G-code. Afterwards, the operator can press the playback button in order to achieve an identical copy of the workpiece. This cuts in half the amount of time required to configure the CNC lathe, and increases efficiency ...More
This lathe saves the actions of its operator and automatically converts them into G-code. Afterwards, the operator can press the playback button in order to achieve an identical copy of the workpiece. This cuts in half the amount of time required to configure the CNC lathe, and increases efficiency ...More
This lathe saves the actions of its operator and automatically converts them into G-code. Afterwards, the operator can press the playback button in order to achieve an identical copy of the workpiece. This cuts in half the amount of time required to configure the CNC lathe, and increases efficiency ...More
This lathe saves the actions of its operator and automatically converts them into G-code. Afterwards, the operator can press the playback button in order to achieve an identical copy of the workpiece. This cuts in half the amount of time required to configure the CNC lathe, and increases efficiency ...More

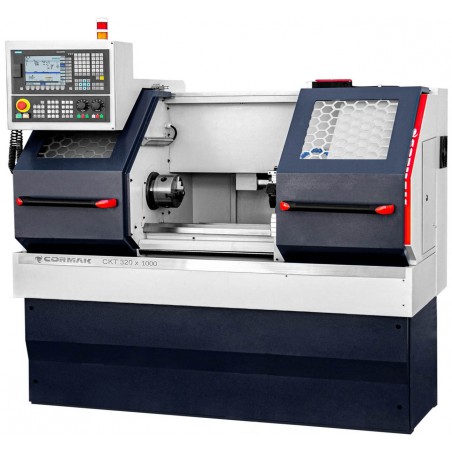

copy of 320x1000 CORMAK CNC lathe
