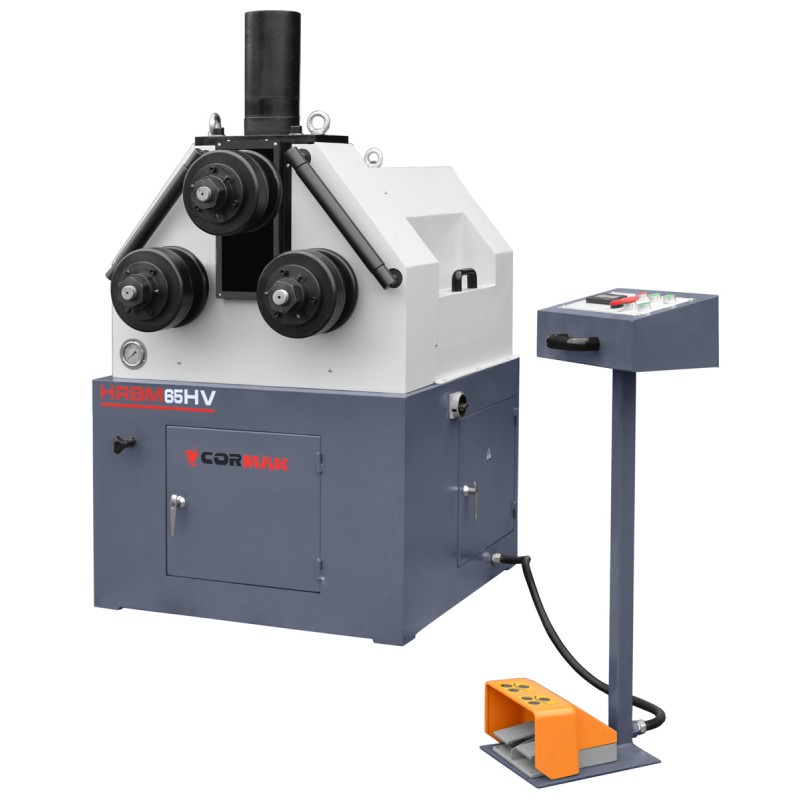

HRBM65 Hydraulic Bending Machine for Tubes and Profiles

HRBM65 Hydraulic Bending Machine for Tubes and Profiles -
  • HRBM65 Hydraulic Bending Machine for Tubes and Profiles -
  • HRBM65 Hydraulic Bending Machine for Tubes and Profiles -
  • HRBM65 Hydraulic Bending Machine for Tubes and Profiles - Hydraulic tube and profile bending machines CORMAK HRBM 65
  • HRBM65 Hydraulic Bending Machine for Tubes and Profiles - Hydraulic tube and profile bending machines CORMAK HRBM 65
  • HRBM65 Hydraulic Bending Machine for Tubes and Profiles - Hydraulic tube and profile bending machines CORMAK HRBM 65
  • HRBM65 Hydraulic Bending Machine for Tubes and Profiles - Hydraulic tube and profile bending machines CORMAK HRBM 65

Electric bending machine for bending tubes, profiles, rods and flat bars, dependent on the rollers equipped. This bending machine is also equipped with a mechanical upper roller clamping. Perfect for bending arches, rings, spirals, etc. Used in iron working shops and on construction sites. Maximum tubes bending range up to 100 mm. A foot pedal for left/right control included in the set

Have questions? Call us!

+48 25 631 00 27 ext.130

Are you a member of the VIES group?

VAT included
€9,199.75
The lowest price of this product in the last 30 days before the discount was €8,960.56 gross
There are not enough products in stock


  • CE
  • Instructions in Polish
  • Service
  • Warranty 12/24 months
  • Delivery
    Free

Machine features

  • The construction of the bending machine made of welded steel sheets
  • Hydraulic bending machine features higher power in comparison to conventional bending machines
  • Both axes of the bending machine are driven by a powerful hydraulic motor, with the upper wheel lifted by the axis of the hydraulic actuator
  • The panel has buttons that ensure reliability of the machine
  • Default bending rolls allow for bending materials of various shapes

Technical data

Rollers diameter 65 mm
Motor power 2.25 kW
Shafts speed 9.3 rpm
Dimensions 1250x1150x1800 mm
Weight 920 kg

Bending parameters

Material Dimension [mm]  Minimum diameter [mm]
"" 80x25
40x10		 600
500
"" 120x25
50x10		 600
400
"" 50
20		 600
400
"" 80x40x7
40x40x5		 500
400
"" 80x40x7
40x40x5		 400
360
"" 100x50x6
50x40x5		 600
500
"" 70x6
40x5		 500
400
"" 70x6
40x5		 600
500
"" ￠50
￠20		 600
400
"" 70x70x3
30x30x3		 900
500
"" 80x40x3
50x30x2		 800
500
"" 3-1/2"x2"
2-1/8"x2"
ø100x2mm
ø60x2mm		 900
500
1000
500

Manufacturer: Cormak

CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
