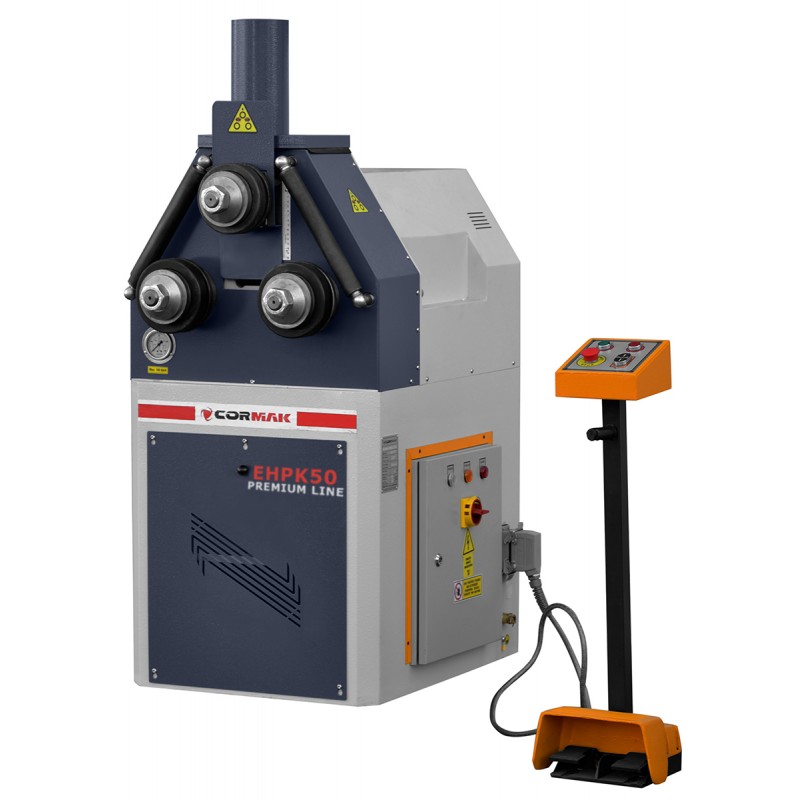

EHPK50 Hydraulic Bending Machine for Tubes and Profiles
Bender that allows vertical and horizontal bending. Rollers made of high-quality and durable steel. The precision of bending is ensured by the drive of three rollers.
Are you a member of the VIES group?
VAT included
€7,450.00
The lowest price of this product in the last 30 days before the discount was €7,256.30 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine features
-
Heavy and rigid design made of steel
-
Hydraulic upper roll clamp
- Bending accuracy ensured by three rolls
-
Digital display for the clamping roll
-
Steplessly adjustable lateral levelling rollers
-
Capable of horizontal and vertical operation
-
Position displayed digitally via a millimetre scale
-
Rolls made of durable and tempered steel
Technical data
|
Shafts diameter |
Ø 50 mm |
|
Rolls diameter |
Ø 162 mm |
|
Hydraulic clamping force |
8 tonnes |
|
Working speed |
4.5 rpm |
|
Motor power |
1.5 kW |
|
Weight |
510 kg |
|
Length |
810 mm |
| Width |
950 mm |
|
Height |
1500 mm |
| Shape | Size (mm) | Minimum diameter (mm) |
 |
60x10 20x10 |
600 300 |
 |
100x15 50x10 |
600 300 |
 |
35x35 15x15 |
600 300 |
 |
60x7 30x4 |
600 400 |
 |
60x7 30x4 |
700 400 |
 |
UPN80 UPN30 |
800 400 |
 |
UPN80 UPN30 |
1200 600 |
 |
50x50x6 30x30x3 |
600 400 |
 |
50x50x6 30x30x3 |
900 600 |
 |
￠35 ￠20 |
600 300 |
 |
70x30x3 30x15x2 |
1500 400 |
 |
50x3 20x2 |
1600 400 |
Default equipment
- Lateral levelling rollers
- Control panel
- User manual
- EC declaration of conformity
Optional equipment
- Component for bending rods (5000 PLN net)
- Component for spiral staircases (4000 PLN net)
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
