ERBM50 Bending Machine for Tubes and Profiles with Upper Roll Digital Readout
Heavy and stable three-roller-ring bender that enables horizontal and vertical work. Top roller digital readout. High-strength steel folding rollers.
Are you a member of the VIES group?
VAT included
€4,499.75
The lowest price of this product in the last 30 days before the discount was €4,382.76 gross
-
- Instructions in Polish
- Service
- Warranty 12/24 months
-
Delivery
Free
Machine features
- Heavy and rigid, solid construction made of steel
- Steplessly adjustable lateral levelling rolls
- Left/right rotation (adjustable with a foot controller)
- Bending rolls made of durable and tempered steel
- Digital readout of the upper roll
- Lower rolls with a direct motor drive
- Capability of horizontal and vertical operation
Technical data
|
Shafts diameter |
Ø 50 mm |
|
Rolls diameter |
Ø 155 mm |
|
Rolls speed |
4.5 rpm |
|
Motor power |
0,75 kW |
|
Weight |
400 kg |
|
Length |
1000 mm |
| Width |
750 mm |
|
Height |
1400 mm |
| Shape | Size (mm) | Minimum diameter (mm) |
 |
60x10 40x10 |
500 400 |
 |
100x15 60x10 |
450 350 |
 |
35x35 20x20 |
900 300 |
 |
60x7 50x6 |
700 500 |
 |
60x7 50x6 |
700 500 |
 |
UPN80 UPN60 |
800 500 |
 |
UPN80 UPN30 |
1000 700 |
 |
50x50x5 40x40x5 |
800 600 |
 |
50x50x6 30x30x3 |
1000 500 |
 |
￠35 ￠30 |
600 400 |
 |
70x30x2 50x40x3 |
1200 1200 |
 |
50x3 40x3 |
1700 600 |
Default equipment
- Lateral guiding rolls
- Control panel
- User manual
- EC declaration of conformity
Optional equipment
- Motor power 1,5 kW
- Component for bending rods (5000 PLN net)
- Component for spiral staircases (4000 PLN net)
Manufacturer: Cormak
CORMAK JERZY ZALEWSKI
street Brzeska 120, 08-110 Siedlce, Poland
Related categories
Are you interested in this product?
Contact with us
phone: +48 501 944 934
export@cormak.pl
phone: +48 609 939 400
export@cormak.pl
phone: +48 609 939 051
export@cormak.pl
phone: +48 609 939 741
export@cormak.pl
You might also like
CORMAK WL2000 3in1 Laser Welding Machine - Promotional Offer
Introducing the latest model of the CORMAK WL2000 industrial laser welder, which combines advanced FIBER technology with innovative design solutions, offering unparalleled precision and efficiency. This device is designed for welding various types of metals, which ensures the quality and ...More
- Reduced price
16 other products in the same category:
ETR50 Bending Machine for Tubes and Profiles
3 roll bending machine with replaceable rollers for bending tubes and profiles of various sizes. Perfect for iron working and artisanal workshops. Its body is made of hardened steel plates, with a wider base for an even easier assembly. The bending machine is additionally equipped with an electric ...More
RBM65HV Bending Machine for Tubes and Profiles
Electric bending machine for bending tubes, profiles, rods and flat bars, dependent on the rollers equipped. Perfect for bending arches, rings, spirals, etc. Used in iron working shops and on construction sites. Maximum tubes bending range up to 100 mm. A foot pedal for left/right rotation control ...More
RBM40HV Bending Machine for Ttubes and Profiles
Electric bending machine for bending tubes, profiles, rods and flat bars, dependent on the rollers equipped. This bending machine is also equipped with a mechanical upper roller clamping with a vernier scale. Perfect for bending arches, rings, spirals, etc. Its bulkiness provides optimal stability ...More
HRBM65 Hydraulic Bending Machine for Tubes and Profiles
Electric bending machine for bending tubes, profiles, rods and flat bars, dependent on the rollers equipped. This bending machine is also equipped with a mechanical upper roller clamping. Perfect for bending arches, rings, spirals, etc. Used in iron working shops and on construction sites. Maximum ...More

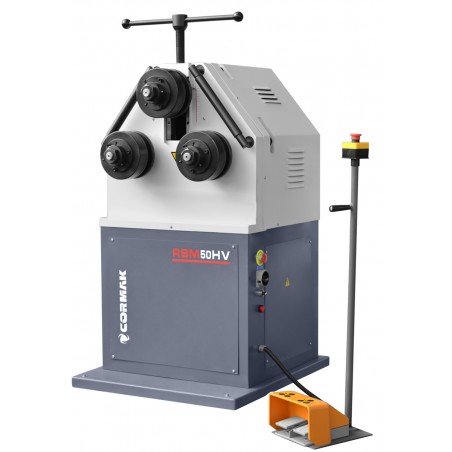

RBM50HV Bending Machine for Tubes and Profiles
