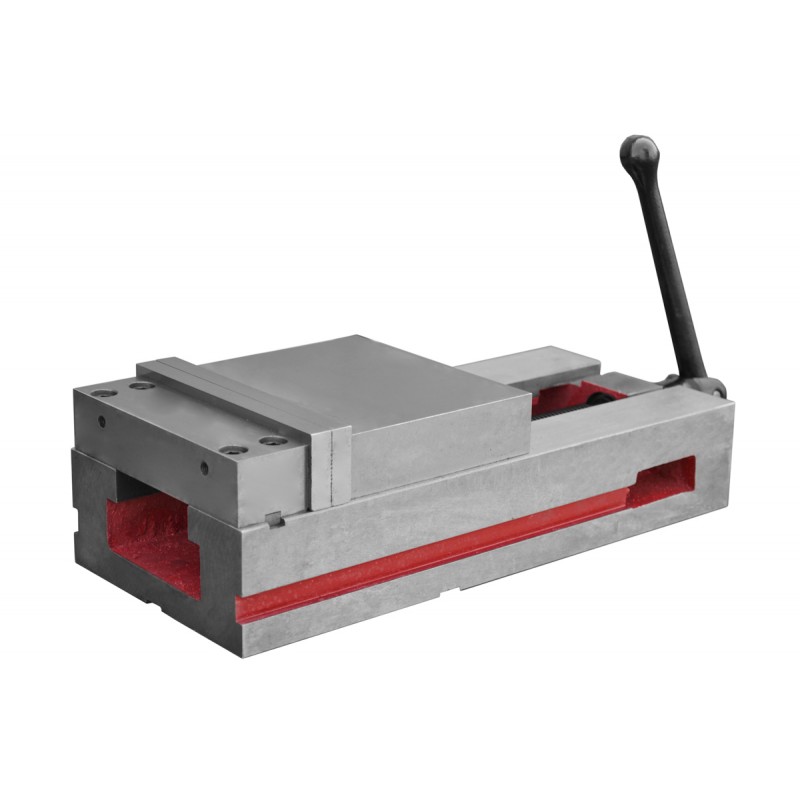

Precision Machine Vice 200 mm QM16200N

Precision Machine Vice QM16200N – reliable clamping in every application

Machine vices of the QM series are professional clamping tools designed for the highest demands in mechanical machining. The QM16200N model is a precision machine vice with a jaw width of 200 mm, which, thanks to its solid construction and manufacturing accuracy, is perfectly suited for work on milling machines, CNC machine tools and machining centres. A key advantage is the ability to work in a multi-vice system, significantly increasing production flexibility.

Main advantages of the QM16200N vice

• Stable and durable construction – the base made of cast iron with a hardness of approx. 40 HRC ensures high resistance to deformation and vibration.
• Precision steel jaws – hardness of 48–52 HRC enables secure clamping without risk of movement or deformation of the material.
• Reversible jaw inserts – can be mounted on both sides of the jaws to clamp larger workpieces.
• Minimal base height deviation (±0.015 mm) – allows synchronous use of multiple vices simultaneously.
• Additional pressure mechanism – special movable jaw design presses the workpiece against the base, increasing clamping stability.

Design and technology

The QM16200N model has been designed for intensive industrial use. Solid components and refined geometry guarantee operational repeatability and long-term stability. The cast-iron base eliminates vibrations, while hardened steel jaws ensure long-lasting durability. High manufacturing quality and adjustable jaw inserts allow work with workpieces of different sizes and shapes.

Precision and performance

The QM16200N vice provides very high clamping force while maintaining maximum positioning precision. The well-thought-out design and high-quality materials ensure stable and accurate machining, eliminating micro-movements that could affect dimensional accuracy.

Applications

The QM16200N machine vice is used in:

• conventional and CNC milling machines,
• numerically controlled machine tools,
• machining centres,
• bench drilling machines,
• operations requiring multi-point workpiece clamping.

Standard equipment

• Set of steel jaws with reversible inserts
• Drive screw with hexagonal head
• Mounting elements

Technical data
