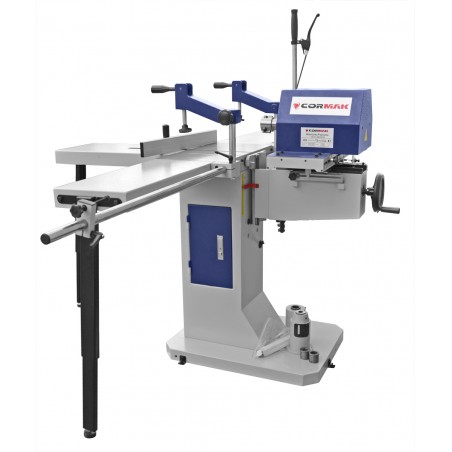

Horizontal Wood Boring Machine CORMAK LBM290 with Mortising Attachment Option

Horizontal Wood Boring Machine CORMAK LBM290 – precision drilling and work ergonomics

CORMAK LBM290 is an advanced horizontal boring machine for wood, designed for efficient hole drilling in furniture and wooden component production. It ensures high repeatability, accuracy and operator safety. Thanks to its solid construction and wide adjustment range, it is an indispensable solution for joinery workshops and production plants.

Main advantages of the machine

• Serial drilling capability – pitch adjustment of 16/20/22/32 mm using a special dowel drilling device.
• Intuitive operation – ergonomic worktable enables one-hand control.
• Precise height adjustment – fast and accurate table height setting with numeric indicator.
• Stable workpiece clamping – eccentric clamp ensures secure fixation of the workpiece.
• Versatile drilling angle – double angle stop adjustment up to 60° in both directions.
• Chip extraction system – Ø100 mm outlet ensures efficient removal of chips and dust from the workspace.

Design and technology

The CORMAK LBM290 horizontal boring machine is characterised by a compact and durable design. It is equipped with a 3.1 kW (S6) motor, 0–16 mm drill chuck, and a 500 x 207 mm worktable with adjustable height ranging from 760 to 900 mm. With a spindle speed of 2,850 rpm, the machine enables fast and accurate drilling in wooden materials. An integrated tool compartment and robust guide mechanism significantly improve work organisation.

Precision and performance

Thanks to bidirectional drilling (left/right) and precise depth and angle adjustment, the horizontal boring machine CORMAK LBM290 offers maximum flexibility. A drilling depth of up to 150 mm and a working width of 309 mm allow the machine to be used in a variety of workshop tasks. Its powerful drive and capability for serial drilling increase productivity even during prolonged use.

Applications

The Horizontal Wood Boring Machine CORMAK LBM290 is designed for:

• joinery and upholstery workshops,
• serial furniture production,
• prototype and custom work,
• assembly operations requiring precise joining of elements.

Standard equipment

• 0–16 mm drill chuck,
• eccentric clamp,
• angle fence,
• travel limiter,
• Ø100 mm chip outlet cover,
• integrated tool storage compartment.

Optional equipment

• dowel drilling device for serial production,
• additional spindle module,
• brush-type chip collector.

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Technical data

Choose professionalism and precision in woodworking. Select the CORMAK LBM290 Horizontal Wood Boring Machine and optimise your drilling operations. Contact our technical advisor for a detailed quotation.
