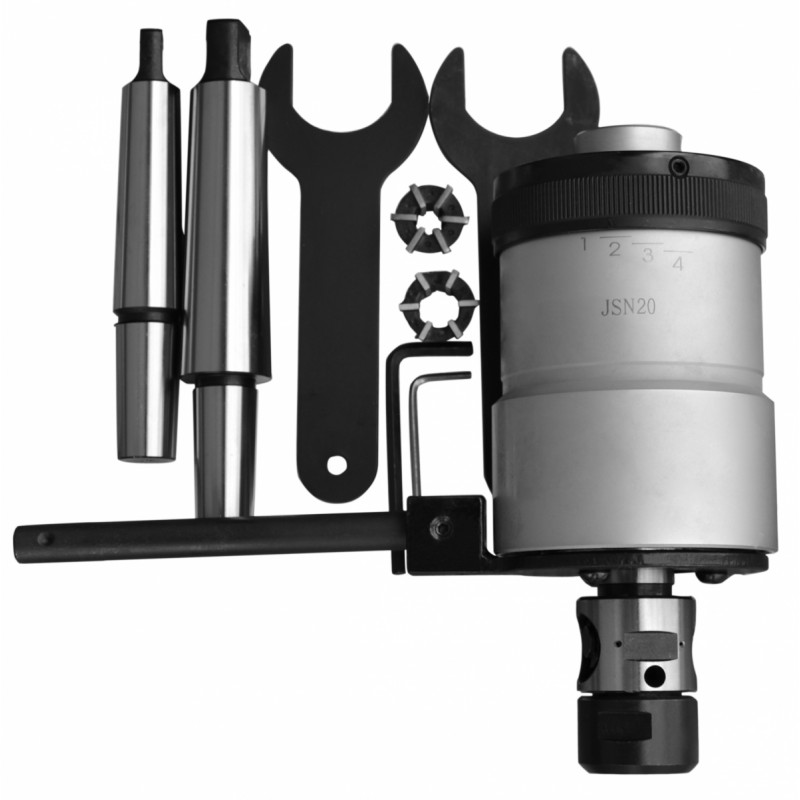

Auto-Reversing Tapping Head CORMAK JSN 20 is designed for use on both conventional and CNC machines. It automatically reverses rotation upon reaching the preset thread depth, enabling efficient threading of both through and blind holes. The standard equipment includes Morse taper shanks No. 3 and No. 4, two Rubberflex collets, a depth stop, and service spanners.
SPECIFICATION |
|
| Overall length | 205mm |
| Outer diameter | 90mm |
| Shank | MK3 and MK4 |
| Speed range | 50–200rpm |
| Gear ratio (FWD–REV) | 1:1.75 |
| Threading range | M8–M20 |
| Mount | B22 |
| Weight | 7kg |
Manufacturer: Cormak
