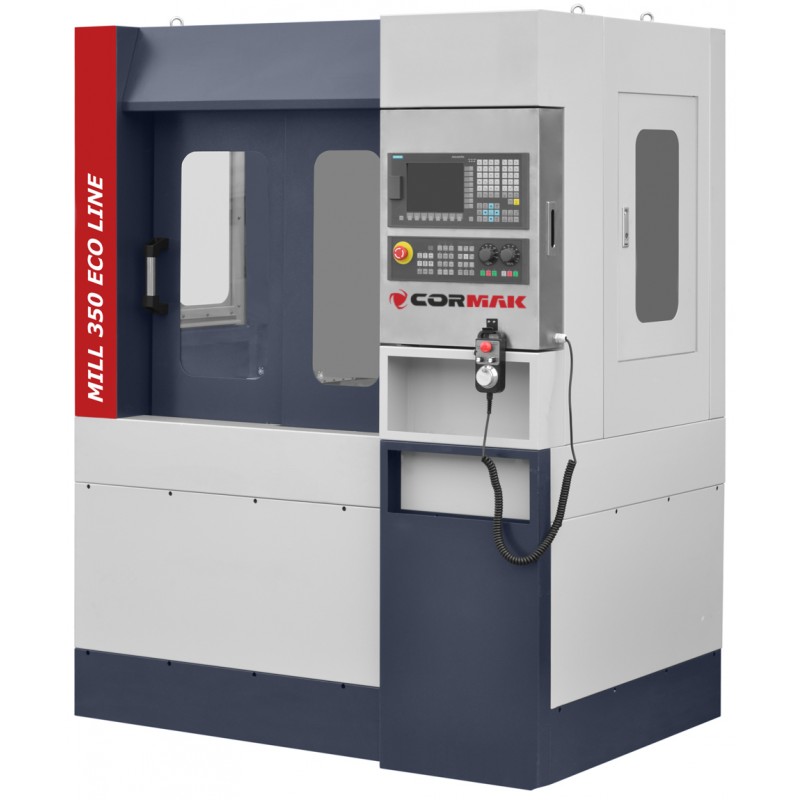

CNC Milling Machine CORMAK MILL 350

Reduced price

The CORMAK MILL 350 CNC Milling Machine operates in three axes, offering linear and circular interpolation, fixed machining cycles, tool compensation, subprogram functions and self-diagnosis. With a spindle speed range of 0–6000 rpm, it enables precise machining of flat and curved surfaces as well as threading and drilling operations. Ideal for training centres, workshops and precision part manufacturing.

Variant

CNC Milling Machine CORMAK MILL 300 Ecoline

Have questions? Call us!

+48 25 631 00 27 ext.105

export@cormak.pl

Are you a member of the VIES group?

To use the VIES group, you must have a VAT number.

Yes - show prices with VAT 0%

Are you interested in this product?

Ask for price

I agree to the terms and conditions and the privacy policy

Instructions in Polish
Service
Warranty 12/24 months
Delivery
Free

Technical data

Table size	600 × 200 mm
Table travel (X-axis)	350 mm
Table travel (Y-axis)	240 mm
Vertical spindle travel (Z-axis)	310 mm
T-slots (width/length/number)	12 / 45 / 4
Maximum workpiece weight	50 kg
Spindle taper	R8
Distance between spindle and column	268 mm
Distance from spindle to table surface	38–348 mm
Main motor power	1 kW
Feed motor torque (X/Y/Z)	6 Nm / 6 Nm / 6 Nm
Rapid feed (X/Y/Z)	4000 mm/min
Feed rate (X/Y/Z)	0–3000 mm/min
Positioning accuracy	0.001 mm
Spindle speed	0–6000 rpm
Machine dimensions	1480 × 1300 × 1850 mm
Machine weight	580 kg

Available equipment

SIEMENS 808D control system
SIEMENS servo drives
Spindle speed up to 8000 rpm
Three-colour alarm lamp
Work area lighting
Fully enclosed housing
Automatic lubrication system
Pneumatic system

Optional equipment*

Siemens 828 / Heidenhain / Fanuc control systems
Spindle speeds 10,000 / 12,000 rpm
Through-spindle cooling 20 bar / 40 bar
4th axis
Chip conveyor with container
Oil separator
Automatic doors
Automatic tool measurement probe Renishaw TS-27
Automatic workpiece measurement probe OMP60

*The quoted price refers to the machine only and excludes optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Manufacturer: Cormak
