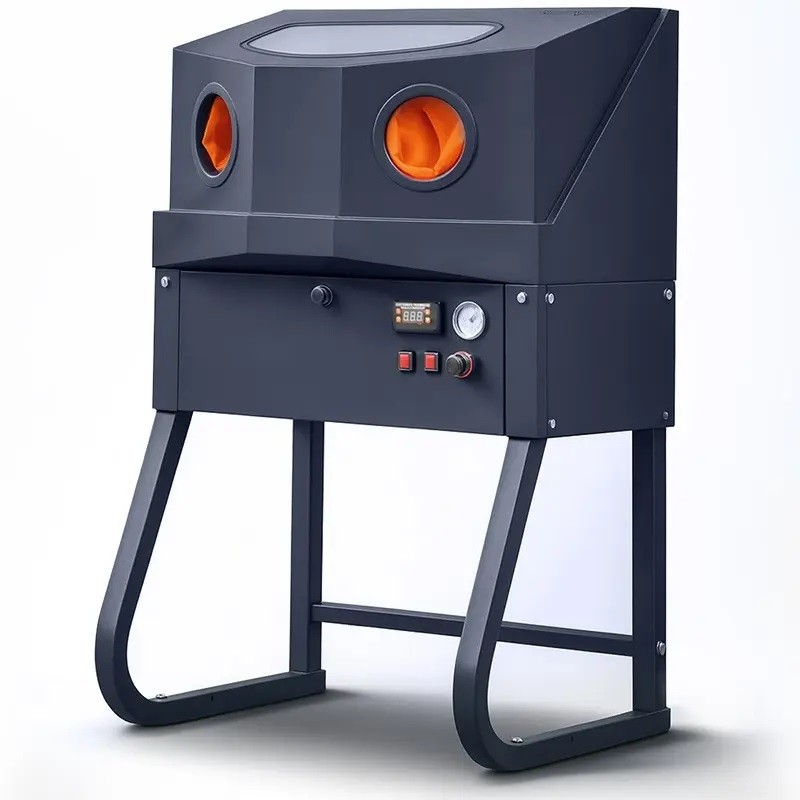

MP160 pressure cabinet parts washer – precise cleaning in a closed-loop system
MP160 pressure cabinet parts washer is a modern machine designed for intensive cleaning of industrial and automotive parts in a closed-loop system using high temperature and pressure. With a working pressure range of 5–8bar and the ability to heat the cleaning fluid up to 70°C, the machine effectively removes carbon deposits, oils, grease and other difficult contaminants, including from hard-to-reach surfaces and components with complex geometries.
Main advantages of the MP160 parts washer
- Working pressure 5–8bar – enables effective removal of stubborn contaminants from components with complex geometries.
- Cleaning fluid heating up to 70°C – increases the effectiveness of the cleaning agent and helps reduce cleaning time.
- Dual-function gun – enables operation with air or a mixture of air and cleaning fluid, as well as drying components.
- Intuitive control panel – ensures convenient operation of the machine and independent control of the power supply and heating system.
- Working pressure gauge – enables continuous monitoring of operating parameters.
- Compact steel construction – designed for regular use in workshops, service facilities and industrial plants.
Pressure cabinet parts washer construction
The machine construction is designed for intensive use in workshop and industrial environments. Compact dimensions of 770 × 600 × 1330mm make it easier to position the washer next to a workstation and to clean small and medium-sized components. The working fluid tank with a capacity of 8–14L enables economical use of the cleaning agent. Adjustable feet ensure stable positioning of the machine, while the built-in pressure gauge allows the working pressure to be monitored.
Cleaning precision and efficiency
The MP160 parts washer enables thorough cleaning of components with complex shapes, such as turbochargers, valves, covers, housings and hydraulic components. The pressure spray system enables the cleaning agent to be directed straight into gaps, channels, recesses and other hard-to-reach areas. Once the cleaning process is complete, the component can be blown dry with compressed air. This helps remove residual fluid and prepare the part for further assembly, inspection, reconditioning or other servicing operations.
Applications of the MP160 pressure cabinet parts washer
The MP160 pressure cabinet parts washer is suitable for mechanical workshops, parts reconditioning facilities, service companies, toolrooms, maintenance departments and manufacturing plants. The machine can be used, among other applications, for cleaning:
- turbochargers,
- valves and valve bodies,
- covers and housings,
- engine and transmission parts,
- hydraulic components,
- industrial machine components,
- tools and workshop equipment,
- parts made of steel, cast iron and other materials resistant to the cleaning agent used.
Standard equipment
- dual-function gun for spraying fluid and blowing with air,
- working fluid heating system,
- control panel,
- working pressure gauge,
- adjustable stabilising feet.
Technical specifications
| |
|---|
| Cabinet capacity |
160L |
| Maximum detergent temperature |
70°C |
| Fluid tank capacity |
8–14L |
| Working pressure |
5–8bar |
| Dimensions |
770 × 600 × 1330mm |
| Weight |
47kg |
Professional pressure cabinet parts washer for workshops and industry
CORMAK MP160 combines high working pressure, fluid heating and the ability to wash and dry parts using a single gun. The enclosed cabinet helps limit the spread of contaminants and working fluid beyond the workstation.
Choose the MP160 pressure cabinet parts washer to streamline the parts cleaning process, reduce component preparation time and improve the repeatability of servicing work.
