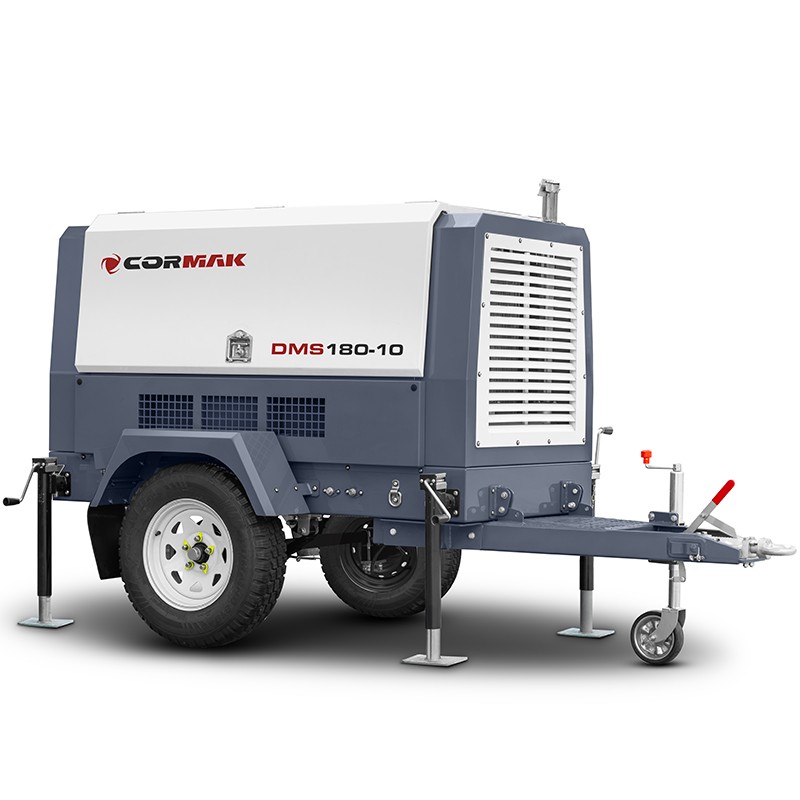

copy of CORMAK 15BAR combustion compressor

Characteristics of the combustion compressor

The combustion screw compressor is an innovative tool, perfect for those who are looking for a compact and effective solution. It is a reliable, fully automatic device that ensures stability of parameters and continuous operation for many hours without interruption.

One of the key aspects of this compressor is its full automation. The device works in automated mode, which means it does not require constant supervision or manual adjustment of parameters. Thanks to this, it ensures constant, reliable operation for dozens of hours without interruption. This is an ideal solution for those who need a continuous and stable supply of compressed air.

The second most important element of this compressor is its innovative air cooling and drying system. The integrated cooling system is responsible for maintaining the optimal operating temperature of the device, which is important for its efficiency and durability. Air drying, on the other hand, ensures that the supplied air is clean and free of moisture, which is crucial in applications where moisture could cause damage.

The standard equipment of the compressor includes an electric starter, a soundproof compressor housing, a pneumatic control system, an integrated operating hours counter and a pressure gauge that facilitates the control of the device's operation. Additionally, the compressor has a thermostat with a safety switch in the event of high temperatures and a silencer under the housing, which reduces noise and minimizes the risk of burns or other accidents during use.

The specially designed compressor structure facilitates maintenance work and provides easy access to all filters, which translates into quick and intuitive maintenance.

An effective pneumatic control system ensures automatic regulation of engine speed depending on the volume of supplied air, resulting in high efficiency and low fuel consumption. This makes the Cormak combustion compressor an excellent choice for those who require the best quality and efficiency of the device.
Technical parameters:
Max working pressure 15 bar
Air supply 1000 l/min
Minimum working pressure 5.5 bar
XPZ belt power system
Air/oil compressor cooling system
Oil capacity 5 L
Air outlet valve 1 x 3/4"
Noise level EECno 2000/14 ≤ 97 LWA
12V cc battery - 330A-45Ah (EN)
Fuel tank capacity 15 L
Consumption (average) 6.7 L/h
PETROL ENGINE
HONDA engine, GX690
4-stroke system
Displacement 690 cc
Number of cylinders 2
Suction Natural
Max power at 3600 RPM 16.5 kW - 22.5 HP
Max engine speed 3400 rpm
Min engine speed 2000 rpm
Air cooling system
Lubrication system Oil
Lubrication system capacity 1.9 L
