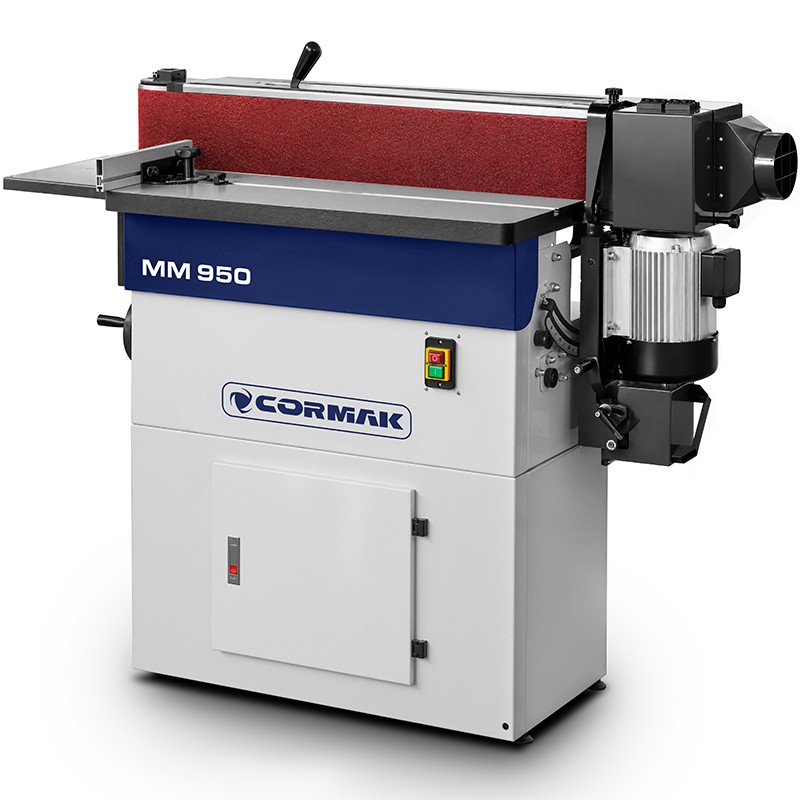

Edge Belt Sander CORMAK MM950

Edge Belt Sander CORMAK MM950 – solid construction and large working area

The CORMAK MM950 edge belt sander is an efficient machine designed for precise sanding of the edges and surfaces of workpieces of various sizes. The large main table, sanding angle adjustment up to 90° and additional worktable allow the workstation to be conveniently adapted to the task being performed.

The rigid steel construction and weight of 172 kg provide a stable base during operation. The maximum power of 3kW enables demanding sanding operations to be completed efficiently, while the 120 mm diameter extraction port allows the machine to be connected to an external extraction unit or central dust extraction system.

Main machine advantages

• Large 850 × 300 mm main table provides convenient support for workpieces.
• Sanding angle adjustment up to 90° allows the working position to be adapted to the type of operation being performed.
• Additional 340 × 340 mm worktable facilitates the sanding of smaller workpieces.
• Rigid steel construction supports stable material guidance and repeatable results.
• Maximum power of 3kW enables efficient operation under heavier loads.
• 150 × 2515 mm sanding belt provides a large working surface during machining.
• 110 mm diameter roller extends the machine’s range of applications.
• Ø120 mm extraction port enables connection to an extraction system.
• Stable 800 × 400 mm base limits unwanted movement of the machine.
• 400V power supply provides suitable operating conditions for the machine in workshops and production facilities.
• 16A five-pin power socket provides convenient machine connection.

Construction and functionality

The CORMAK MM950 is equipped with a main worktable measuring 850 mm in length and 300 mm in width. The large table surface facilitates stable support of workpieces and convenient guidance of the material along the sanding belt.

Sanding angle adjustment up to 90° allows the working position to be adapted to the shape of the workpiece and the required edge finish. The additional 340 × 340 mm table extends the machine’s capabilities when machining smaller workpieces.

The steel body construction and weight of 172 kg reduce vibration and unwanted movement of the machine. The overall dimensions of the sander are 1600 × 460 mm, allowing the machine to provide a large working area while occupying a base area of 800 × 400 mm.

Operating precision and efficiency

The wide 150 × 2515 mm sanding belt allows both edges and larger workpiece surfaces to be machined efficiently. The maximum power of 3kW provides suitable operating parameters for demanding workshop and production operations.

The large table surface and stable construction facilitate controlled material guidance, helping to achieve even and repeatable sanding results.

Dust extraction

The sander is equipped with a 120 mm diameter extraction port, enabling connection to a suitably selected extraction unit or central dust extraction system. Effective removal of dust generated during sanding helps keep the workstation tidy and improves visibility of the workpiece.

Applications

The CORMAK MM950 edge belt sander is suitable for:

• sanding straight edges,
• levelling surfaces,
• machining workpieces at a set angle,
• smoothing surfaces and edges,
• preparing workpieces for further machining stages,
• workshop and production tasks requiring a large working area.

The machine is a suitable solution for joinery workshops, production workshops, craft workshops and companies processing workpieces of various sizes.

Standard equipment

• Main worktable 850 × 300 mm
• Additional worktable 340 × 340 mm
• Sanding belt 150 × 2515 mm
• Roller with a diameter of 110 mm
• Ø120 mm extraction port
• Stable steel base
• 16A five-pin power socket

Optional equipment*

• Dust and chip extractor
• Sanding belts with grit selected for the operation being performed

Technical specifications

Choose stability, a large working area and versatile machining capabilities – select the CORMAK MM950 edge belt sander and improve the sanding process in your workshop or production facility.

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
