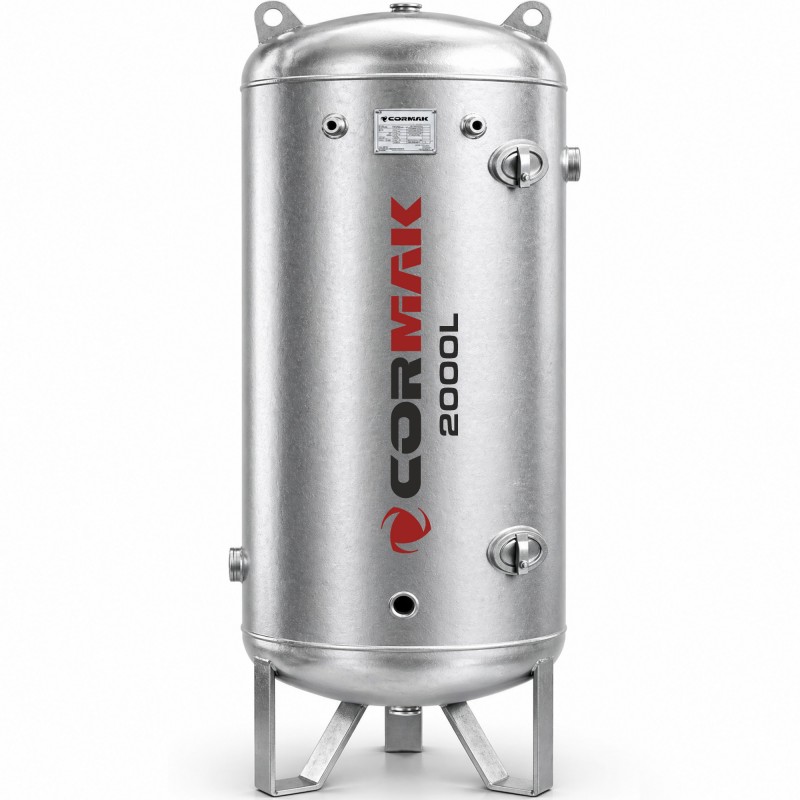

GALVANISED 2000L COMPRESSED AIR RECEIVER – HIGH-CLASS PRESSURE VESSEL FOR COMPRESSED AIR INSTALLATIONS

The CORMAK pressure vessel with a capacity of 2,000 litres and working pressure of 11bar is designed for operation under a maximum pressure of 11bar. The receiver is made from galvanised sheet metal, which provides an excellent protective barrier against external factors and corrosion, significantly extending the service life of the device compared with standard painted receivers. It is a reliable solution intended for storing compressed air in industrial plants, workshops, and pneumatic installations. A solid steel structure, compliance with European Union directives, and UDT certification make this receiver an indispensable component of any compressed air system. Thanks to its optimised design and high pressure resistance, this receiver can serve both as a storage buffer and as an element stabilising the compressor operating parameters.

Main advantages of the galvanised 2000L pressure vessel

• Professional pressure construction – made from high-grade steel with a thickness of 4mm, resistant to pressure and corrosion.
• Galvanised finish: The surface of the receiver is galvanised, ensuring an attractive appearance and high resistance to the demanding conditions found in workshops or production halls.
• UDT certification and CE marking – compliance with European safety and quality standards.
• 11bar working pressure – enables operation with most pneumatic systems, including those with increased requirements.
• High capacity – 2,000 litres – allows stable supply to the pneumatic installation and reduces the frequency of compressor start-ups.
• Multi-connection port system – as many as 6 ports with diameters of 1/2", 1", 2" allow flexible connection of the receiver to various installations.
• High quality of workmanship – durable lacquer layer on the outside of the receiver.
• Universal mounting position – the vertical structure saves space in the plant.
• Compliance with Standards: The receiver meets the safety requirements for pressure equipment and is suitable for registration with the Technical Inspection Office (UDT).

Design and technology – solid construction for demanding applications

This compressed air receiver has been designed for intensive use in industrial environments. The body, made from structural steel with a wall thickness of 4mm, guarantees resistance to pressure up to 11bar and ensures long-term operation. All welds are subject to rigorous quality control, and the surface of the receiver is protected with galvanising resistant to external factors and corrosion.

The receiver is equipped with a rating plate with the CE symbol and the number of the UDT notified body, confirming its approval for operation on the European market. The set includes complete technical documentation, a passport, and material certificates.

Precision and working efficiency – stable pressure and optimum compressor operation

Thanks to its large 2,000-litre capacity, the receiver acts as an air buffer, stabilising pressure throughout the pneumatic system. This allows equipment powered by compressed air to operate evenly and significantly extends the service life of the compressor by reducing the number of its start-up and shut-down cycles. The vertical design enables compact installation, which is particularly important in plants with limited space.

A properly selected receiver for a compressor minimises pressure drops and prevents overloads in the pneumatic system, resulting in greater efficiency and safety of the entire installation.

Application – versatility in industrial and workshop applications

CORMAK pressure vessels galvanised are widely used in various industrial sectors, as well as in automotive workshops, production plants, construction companies, and central compressed air installations. Thanks to their capacity and pressure resistance, they are suitable as:

• compressor tank – storing compressed air in pneumatic supply systems,
• receiver for a compressor – a pressure buffer reducing the frequency of compressor operation,
• compressed air receiver – supplying pneumatic machinery and equipment in continuous mode,
• an installation component in industrial automation and paint shop systems,
• a basic component of pneumatic control systems.

Standard equipment

• Connection openings: 6 pcs – diameters 1/2", 1", 2"
• Rating plate with CE symbol
• UDT notified body number
• Full technical documentation and pressure passport
• External anti-corrosion coating

Why choose CORMAK compressed air receivers?

• Proven quality – production compliant with European directives PED 2014/68/EU
• Safety – compliance with UDT, resistance to overloads and overpressure
• Durability – resistance to corrosion and mechanical damage
• Functionality – can be used with most piston and screw compressors
• Availability – different capacity and configuration variants: horizontal, vertical

Technical parameters:

Choose quality and safety – choose a receiver for your compressor from CORMAK

If you are looking for an air receiver that will guarantee reliability, compliance with UDT standards, and high operating efficiency of your pneumatic installation, the CORMAK 2000L model is the ideal choice. We offer not only a product, but also full technical support, parts availability, and expert advice on selecting a receiver for your compressor.

Order your CORMAK pressure vessel now and increase the efficiency and safety of work in your plant. Contact our technical department or place your order online!
