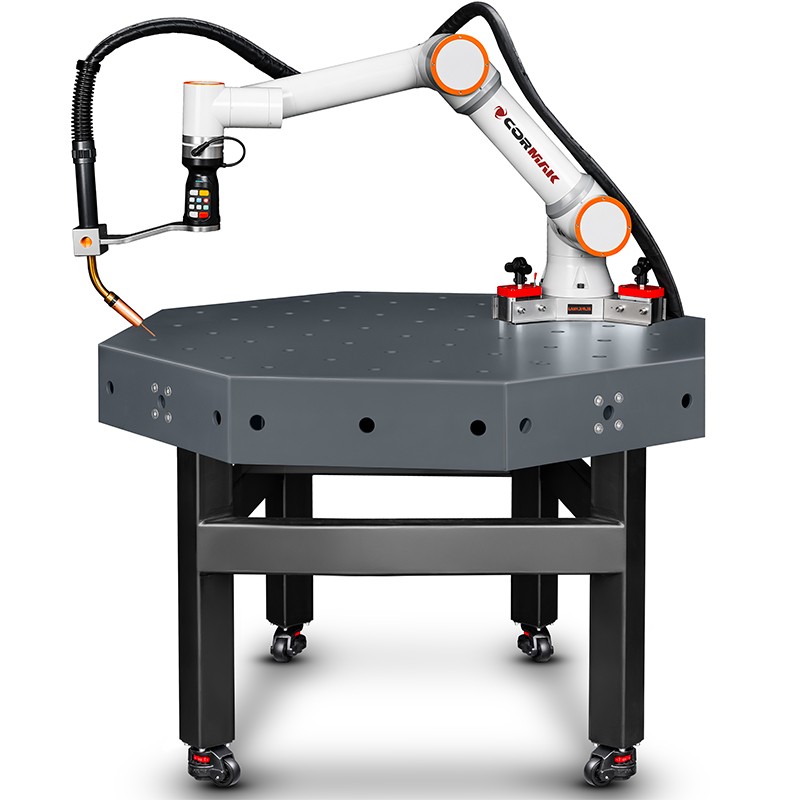

Welding Cobot CORMAK R950 6-Axis Cobot for Automation 5kg 922mm

CORMAK R950 ROBOT – 6-axis cobot for production automation

CORMAK R950 ROBOT is a modern 6-axis cobot designed for automating processes in production, assembly, packaging, machine tending and pick & place applications. Its compact design, high repeatability and easy integration make the device well suited to both new workstations and the modernisation of existing production lines. The robot offers a 5kg payload, 922mm working reach and ±0.02mm repeatability.

Main advantages of the robot

• 6 axes of movement enable flexible operation in many types of industrial applications.
• 5kg payload allows the handling of workpieces, tools and light production components.
• 922mm working reach provides a wide working area while maintaining compact dimensions.
• ±0.02mm repeatability guarantees high accuracy of performed operations.
• Typical TCP speed of 1m/s enables efficient execution of repetitive tasks.
• Mounting in any position makes it easier to integrate the robot with existing workstations.
• Wide communication options: Modbus, Profinet, Ethernet and IO allow easy connection to automation systems.
• Programming in C#, C++, Python, Java and ROS increases implementation and integration capabilities.
• Compact design and 22kg weight make installation easier even in limited space.
• IP54 protection rating ensures resistance to conditions typical of an industrial environment.

Construction and technology

The R950 ROBOT has been designed for work in modern production plants, where repeatability, safety, space saving and the possibility of quick start-up are important. The structure, made of aluminium and steel, ensures appropriate rigidity, durability and stability during repetitive movements.

The robot can be used as a standalone workstation or as part of a larger automation system. Thanks to its 6-axis design, it performs well both in simple handling tasks and in more demanding technological processes requiring high movement accuracy.

Precision and work efficiency

High repeatability at ±0.02mm allows stable process quality to be maintained, regardless of the number of cycles performed. The robot performs well in tasks requiring accurate positioning, such as transferring workpieces, sorting, packaging, glue application, assembly, screwdriving or CNC machine tending.

Thanks to its compact design and the ability to mount it in any position, the CORMAK R950 ROBOT can be easily adapted to various workstations, both new and existing. This solution helps reduce manual work, increase process repeatability and improve production organisation.

Application

The CORMAK R950 ROBOT is designed for the automation of warehouse, industrial and production processes. It performs well in tasks requiring repetitive movements, precise handling and stable operation over a long period.

• Pick and place
• Loading and unloading workpieces
• CNC machine tending
• Packaging and sorting
• Glue application
• Assembly and screwdriving
• Light production and laboratory processes
• Transferring workpieces
• Production workstation handling

Standard equipment

• Robot arm
• Control station
• Complete cabling set
• Safety button

Ready-to-start set

The set includes all basic components required to start work. This means the robot is ready for start-up and programming directly after being removed from the packaging. This solution allows the robot to be put into operation quickly and reduces the time needed to prepare the workstation.

Technical specification

Axis working range

Why choose the CORMAK R950 ROBOT?

CORMAK R950 ROBOT is a universal solution for companies that want to increase repeatability, reduce manual work and easily automate a workstation. Thanks to its compact design, low weight, high accuracy and wide communication options, the robot can be implemented in many branches of industry.

Accessories, implementation and service

Our offer also includes additional accessories for cobots, including grippers, bases, communication modules and solutions for integration with specific production processes.

Choose automation, precision and flexible operation – choose the CORMAK R950 ROBOT and increase the efficiency of production processes in your plant.

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
