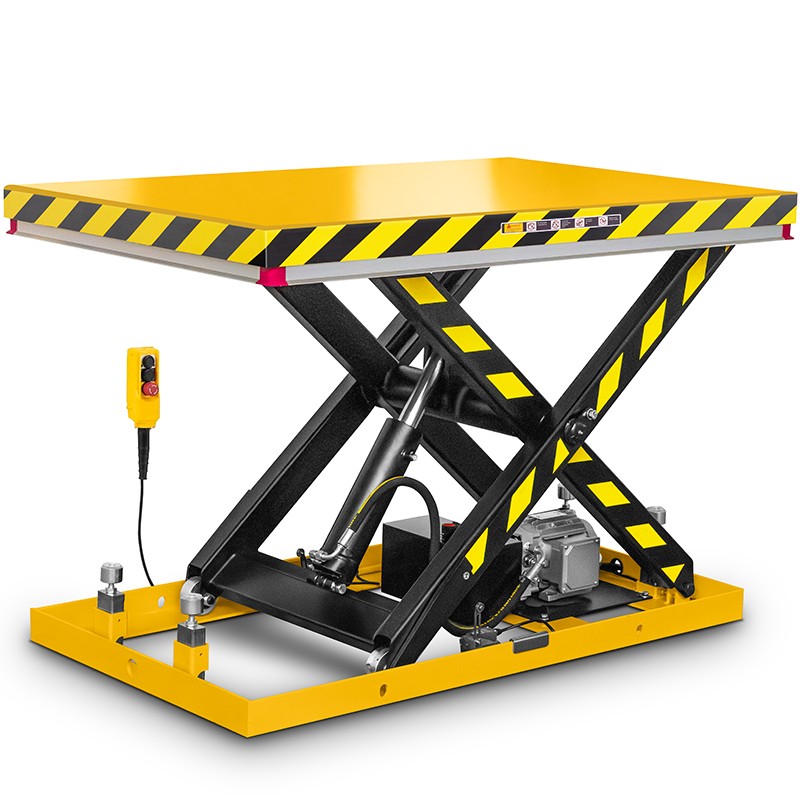

Stationary Scissor Lift Table TA1000/1380 – 1000kg 400V lifting platform for heavy loads

The stationary TA1000/1380 scissor lift table is a robust hydraulic scissor lift designed for handling heavy loads in warehouses, production, workshops and internal transport. The 1000kg load capacity allows the device to be used for lifting pallets, containers, crates, moulds, steel parts, machine components and materials that require stable positioning at working height.

The TA1000/1380 model performs well as a lift table for production, working platform, workstation lift or as an element supporting work at a process line. Thanks to height adjustment from 200mm to 995mm, it enables quick adjustment of the tabletop level to the operator, machine, rack, conveyor or assembly station.

The large 1300 × 820mm working tabletop provides a stable support surface for larger loads. This is important when working with heavy elements, industrial containers, structural parts and goods requiring safe lifting without manual handling.

1000kg scissor lift for demanding workstations

The TA1000/1380 scissor lift table has been designed for companies that need a stable device for working with heavy materials. The high load capacity allows loads to be handled that are too heavy for manual lifting, moving or positioning at the correct height.

The device helps improve workstation ergonomics and reduce operator strain. The load can be set at a convenient working level, which facilitates assembly, packing, quality control, collection of parts from a machine, picking, and transferring material to the next stage of the process.

Electric control and hydraulic lifting

The electro-hydraulic lifting system allows the table to be operated without manual pumping. The operator controls the movement of the platform using a remote control, which makes it easier to raise and lower the load quickly during everyday warehouse and production work.

The 400V power supply means that the TA1000/1380 model is intended for operation in an industrial environment, where reliability, repeatability and convenient handling of heavy loads are important. Precise height adjustment allows the tabletop to be set exactly where a given operation requires it.

Stable construction for working with heavy materials

The scissor construction ensures even guidance of the platform during lifting and lowering. The net weight of the device is 180kg, which increases stability during operation under load and helps ensure secure positioning of the load.

The stationary design means that the table is well suited to fixed workstations, loading points, assembly lines, production cells and places where components are repeatedly lifted to a specified height.

Safety features increasing operational control

The TA1000/1380 model is equipped with safety limit switches that automatically stop lifting when the maximum working height is reached. This solution protects the lifting mechanism and helps ensure safe use of the device.

Under the edge of the tabletop there is a safety protective strip. Its task is to stop the downward movement of the platform if an obstacle is encountered. This is particularly important when working in production, warehouse and picking areas, where operators, containers, tools or workstation equipment elements may be near the table.

Main advantages of the TA1000/1380 scissor lift table

• 1000kg load capacity – for heavy loads, pallets, crates, moulds, components and production elements.
• Lifting range 200–995mm – convenient setting of the working height for the operator, machine or production line.
• 1300 × 820mm tabletop – large working surface for stable support of the load.
• 400V power supply – a solution for industrial applications and operation in production plants.
• Remote control – quick operation of platform lifting and lowering.
• Scissor construction – stable guidance of the tabletop during operation under load.
• Safety limit switches – automatic stop when the maximum height is reached.
• Protective strip under the tabletop – protection of the platform lowering zone.
• Net weight 180kg – greater stability when handling heavy loads.
• Stationary lifting platform – ideal for fixed workstations, assembly and production.

Where is the TA1000/1380 lift table suitable?

The stationary 1000kg scissor lift table is used in processes where stable lifting, precise positioning and limiting manual handling of heavy loads are important. It can support both a single workstation and an entire process line.

• Industrial production – feeding components to machines, presses, machine tools and workstations.
• Warehouses – lifting containers, crates, pallets and goods to the appropriate height.
• Assembly lines – positioning heavy parts during assembly, inspection or processing.
• Technical workshops – handling machine parts, tools, subassemblies and steel structures.
• Packing and repacking – positioning the product at a convenient level for securing and preparing shipment.
• Quality control – convenient lifting of an element for inspection, measurement or further processing.
• Loading and unloading areas – support when moving heavy elements between different working levels.
• Internal transport – vertical movement of the load in the production hall or warehouse.

Ergonomics and process organisation

TA1000/1380 allows a heavy load to be positioned at a height suited to the current task. The operator does not need to lift elements manually or work in a forced position. This reduces fatigue, improves the pace of operations and improves workstation organisation.

The table can be used for repetitive tasks such as collecting parts from a machine, preparing material for assembly, placing components aside, packing products or feeding production stations. Thanks to this, the device supports workflow continuity and reduces downtime resulting from manual handling of heavy elements.

Practical use with pallets and components

The TA1000/1380 scissor platform performs well when working with heavy loads and regular dimensions. The 1300 × 820mm tabletop allows stable positioning of crates, containers, production parts and elements prepared for further transport.

In a warehouse, the table can support picking, sorting, setting down and preparing goods. In production, it helps position components at the working level of machines or operators. In a workshop, it makes access to heavy parts easier during repair, assembly or inspection.

Technical data

Why choose the TA1000/1380 scissor lift table?

The TA1000/1380 scissor lift table is a good choice for companies that need a robust, stationary platform for lifting loads up to 1000kg. The device combines high load capacity, a stable tabletop, electro-hydraulic lifting and practical safety features.

The model performs well as a scissor lift for warehouses, a lift table for production, a workstation platform or a device supporting work at assembly lines. It helps improve ergonomics, shorten the handling time of heavy loads and increase the safety of everyday operations.

Choose TA1000/1380 if you need a solid 1000kg scissor lift table for working with heavy components, pallets, containers and industrial materials.
