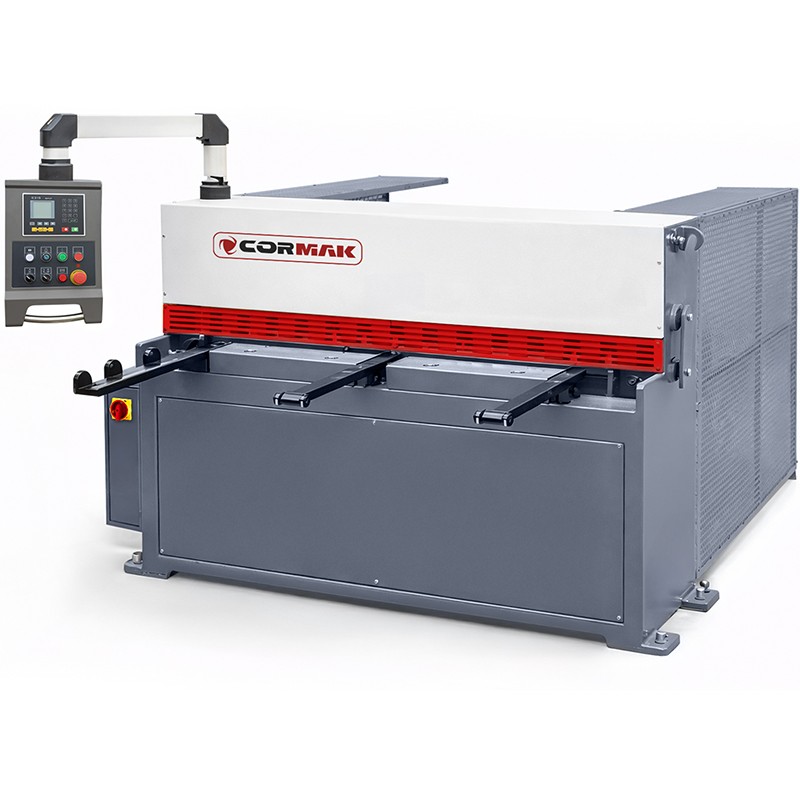

Mechanical Guillotine Shears 1300x4 NC

Mechanical Guillotine Shears 1300x4 NC is an efficient and precise guillotine designed for cutting steel sheets up to 4 mm thick and 1,300 mm long. The machine has been designed for production environments where repeatability, safety and high cut-edge quality are crucial. The use of NC control enables accurate positioning and increases the efficiency of batch processing.

Main advantages of the machine – stability, repeatability and full control of the cutting process

• NC-controlled guillotine shears with the ESTUN31S control unit – precise adjustment of operating parameters and backgauge control.
• Motorised backgauge (0–750 mm) – fast and accurate setting of the cut length.
• Cutting gap adjustment 0–0.6 mm – can be matched to material thickness and type.
• Double-sided tool steel blades – clean, burr-free cutting and longer tool life.
• Rigid steel construction – operation without torsional deformation even at maximum load.
• Cut line lighting – precise positioning of the sheet relative to the blade.
• Central lubrication system – reduced wear of moving parts and simplified maintenance.

Design and technology – industrial construction for intensive use

The machine body is made as a welded steel structure with high rigidity. The appropriate deadweight (approx. 1,530 kg) and an optimised drive system with 4.0 kW power ensure stable operation at 23 strokes per minute. The mechanical guillotine shears 1300x4 NC are equipped with an automatic sheet hold-down, which prevents the material from shifting during cutting.

The safety system includes a guard with a light curtain, photoelectric sensors and a foot pedal with an emergency stop. A side gauge with millimetre scale and front support arms with rollers facilitate processing of larger sheet sizes.

Precision and working efficiency

A 2.0° cutting angle and the ability to adjust the gap between the blades provide an optimal ratio of cutting force to edge quality. The guillotine delivers repeatable parameters in batch production of components made from structural sheet with strength up to 400 N/mm². The motorised backgauge increases productivity when producing short and medium production runs.

Applications

• metalworking and structural fabrication shops,
• production of housings and steel components,
• companies involved in sheet metal processing,
• maintenance departments and industrial workshops.

Standard equipment

• NC controller 89,
• motorised backgauge,
• central lubrication system,
• cut line lighting,
• support arms with rollers,
• side gauge with mm scale,
• guard with light curtain,
• foot pedal with emergency stop,
• tool steel blades.

Technical data

* for material with strength of 400 N/mm²

Choose proven NC-controlled guillotine shears and increase control over the cutting process in your facility. Contact a CORMAK technical advisor to select a configuration matched to your production profile.
