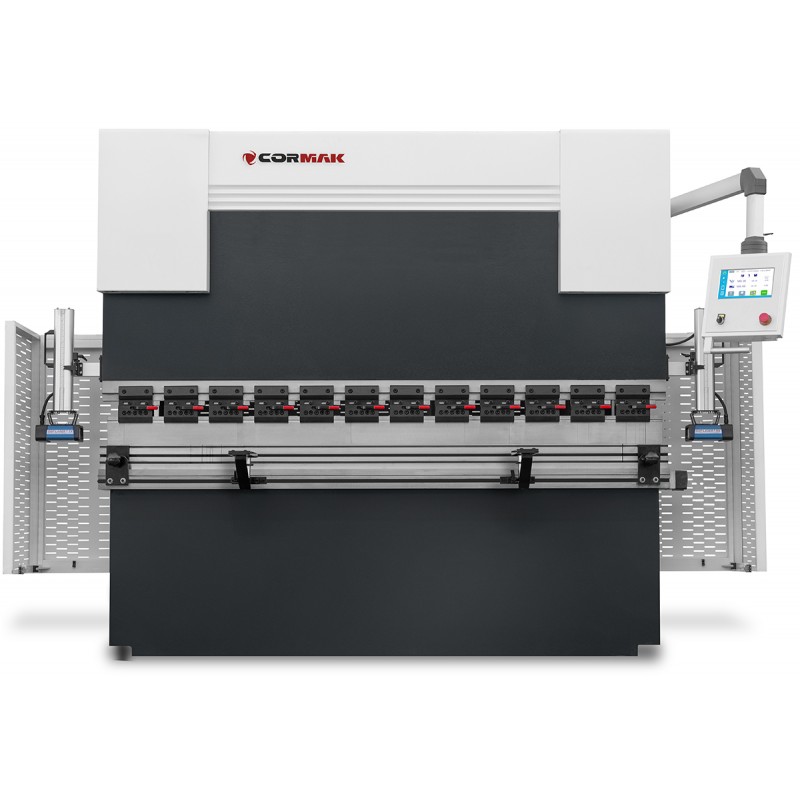

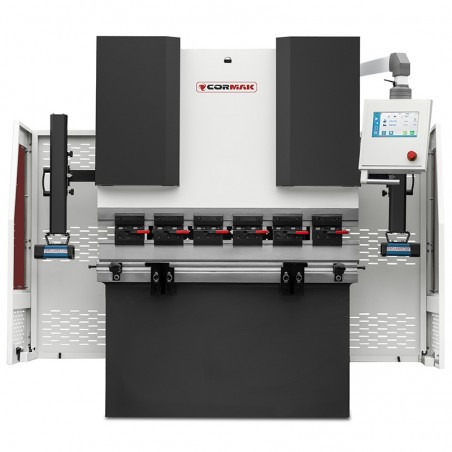

CORMAK EUROBEND series press brakes are advanced machines designed for forming and bending sheet metal that adjusts during the ram cycle to the required geometric profile. They are used in electromechanical, light, agricultural, shipbuilding, automotive and aerospace industries. With properly selected punches and dies and modern CORMAK CR-41 controllers, these machines handle even the most demanding bending applications.
To use the VIES group, you must have a VAT number.
VAT included
€20,602.50
Instructions in Polish
Service
Warranty 12/24 months
Delivery Free
Main Features:
CE-compliant laser safety system
Front supports: 2 pcs providing stability during bending operations
Back gauge adjustment (X axis): automatic
Beam adjustment (Y axis): automatic
Finger height adjustment (R axis): manual
Punch holder: quick AMADA-type system for fast tool change
Segmented punches
Four-sided die for bending various sheet thicknesses
Bosch Rexroth hydraulics
High-quality electric motor
Technical Parameters
Max. thickness of bent sheet (S235)
up to 3.0 mm
Nominal pressing force
400 kN
Maximum bending length
1600 mm
Throat depth
200 mm
Maximum stroke of moving beam
100 mm
Maximum open height
300 mm
Distance between frames
1200 mm
Back gauge travel
600 mm
Motor power
4.0 kW
Length
1800 mm
Width
1200 mm
Height
1850 mm
Weight
2750 kg
Control and Functionality:
CR-41 CNC
Equipped with a 10-inch touchscreen mounted on a movable arm, allowing easy operation throughout the machine’s working area
Programmability: ability to store up to 2,000 programs with 30 steps each for flexible adaptation to various tasks
Ergonomic operation: intuitive menu with English abbreviations for quick user adaptation
The machine combines advanced technology with simplicity of use, making it an ideal choice for both precise manual operations and efficient serial production. High-quality components and advanced safety systems ensure reliability and operator safety.
Safety
Laser safety system
Standard equipment includes a high-class laser safety system that protects the operator and more than doubles the bending speed.
Manufacturer: Cormak
