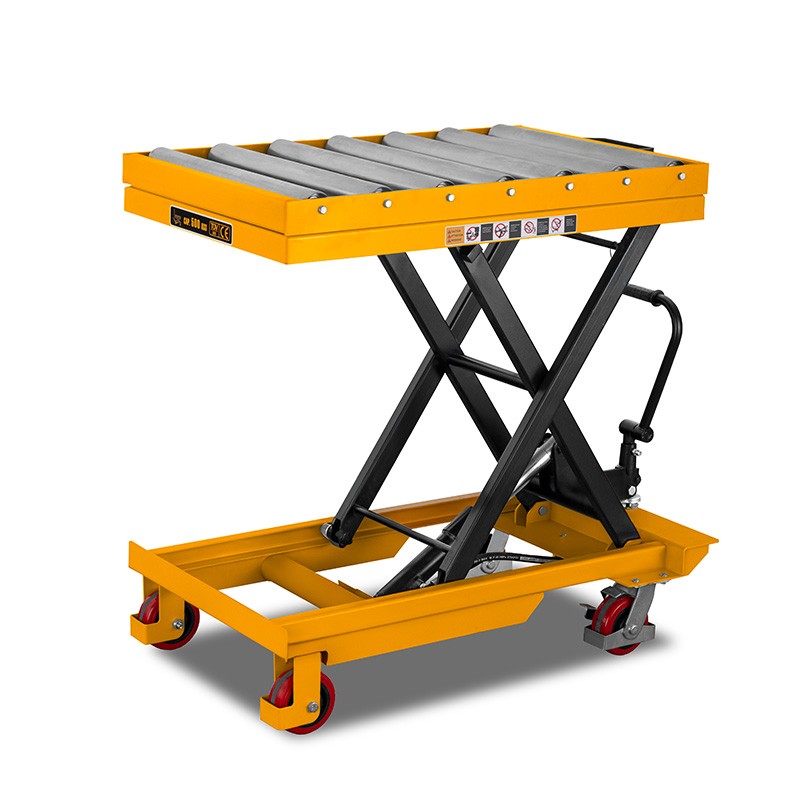

Platform Scissor Lift Trolley CORMAK – Load Capacity 500 kg
The platform scissor lift trolley with rollers on the platform is a compact and functional device that provides convenience when transporting and lifting loads up to 500 kg to a height of 1000 mm. Thanks to its robust construction and efficient scissor mechanism, the trolley is an ideal solution for use in warehouses, workshops and other locations where loads need to be lifted and transported at various heights.
One of the key advantages of the platform scissor lift trolley is its spacious platform with dimensions of 950 x 500 mm, which provides a large working surface and allows loads to be placed safely. This trolley performs excellently during loading, unloading and handling of goods in warehouses, industrial workshops and production plants, where frequent movement and lifting of goods at different heights is required.
The trolley platform is equipped with rollers that enable easy movement of loads across flat surfaces, significantly increasing mobility. Thanks to the rollers, loads can be moved smoothly from one place to another without the need for lifting, reducing operator physical effort and speeding up work processes.
The platform scissor lift trolley ensures ease of operation and a high level of safety. The scissor mechanism allows precise lifting and lowering of the platform to a maximum height of 1000 mm, enabling the working height to be adjusted to operator requirements. Thanks to its durable construction and the use of appropriate safety mechanisms, the trolley guarantees stability and safety during operation while minimising the risk of accidents associated with handling heavy loads.
This is a manual device, meaning it does not require an electrical power supply. Operation is based on manually lifting the platform using a lever. It is an ideal solution for environments where access to power is limited or where the operating costs of electric equipment are too high. The platform scissor lift trolley with rollers on the platform provides easy transport and comfortable operation with minimal physical effort.
Applications of the scissor lift trolley include warehousing, goods handling, machine servicing, work in industrial workshops, as well as product positioning in production halls. Thanks to its stability and large working surface, the trolley can be used both outdoors and in enclosed working environments.
The platform scissor lift trolley is an excellent tool that increases work efficiency, ensures operator safety and enables fast and easy transport of loads weighing up to 500 kg. It is ideally suited for situations where goods need to be lifted quickly to a medium working height and where precise handling of heavy objects is required in a safe and user-friendly manner.
Technical parameters
| Load capacity |
500 kg |
| Max. lifting height |
1000 mm |
| Min. table height |
360 mm |
| Table dimensions |
950x600 mm |
| Handle height |
988 mm |
| Wheel diameter |
125 mm |
| Rollers |
7-Ø60x575 mm |
| Weight |
90 kg |
Summary
The CORMAK platform scissor lift trolley with a load capacity of 500 kg is a professional device that combines precision, ergonomics and reliability. Its robust construction, high mobility and ability to precisely lift loads make it an ideal tool for a wide range of warehouse, production and logistics applications. Invest in quality and efficiency – choose a CORMAK scissor lift trolley and streamline processes in your company.
