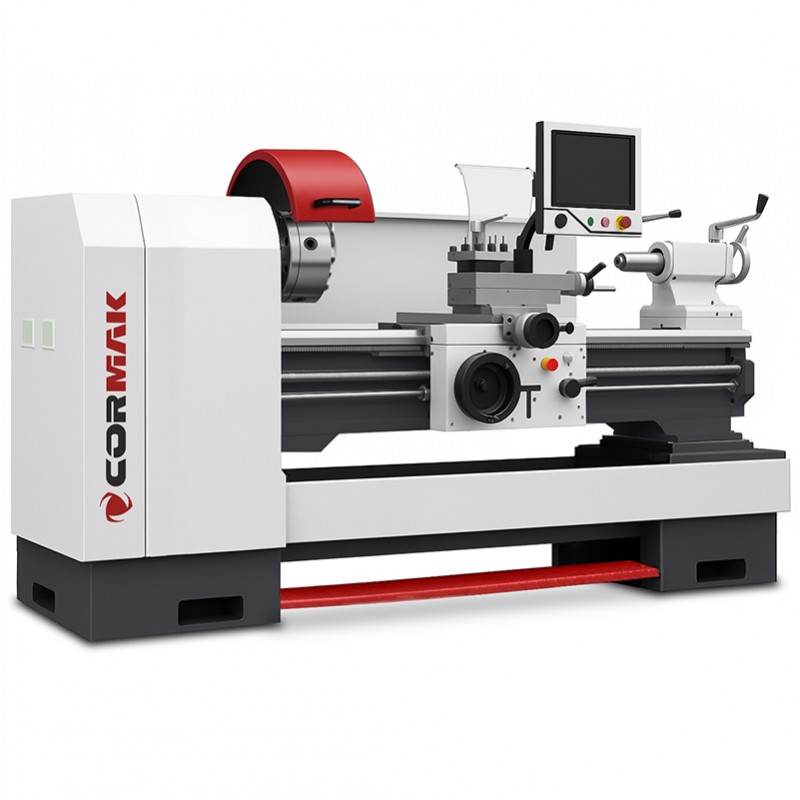

Conventional Lathe with NC Control CORMAK EASY NC-500 500x2000

Main advantages of the machine

• 12.1” touchscreen with a clear menu and interactive instruction system – intuitive operation even for beginner operators.
• Automated machining cycles allow fast preparation of threads, tapers and simple shapes by entering machining parameters.
• NC and manual operating modes – flexibility in adapting the machine to production or training purposes.
• Constant cutting speed – ensures consistent surface quality regardless of the workpiece diameter.
• Rigid bed structure and precise guides guarantee high stability even during machining of large components.
• Modern X and Z axis servo drives provide smooth and fast carriage movement, minimising cycle time.
• Efficient chip removal system – collection drawer simplifies maintaining cleanliness at the workstation.

Design and technology

The EASY NC-500 lathe was designed for maximum performance and durability. The wide 400 mm bed reduces vibration and improves machining quality. The spindle headstock with a through-hole diameter of 80/104 mm (depending on version) allows machining of long and thick workpieces. The 7.5 kW spindle motor generates up to 1,085 Nm torque, enabling efficient turning of hard materials. Servo-driven operation ensures high dimensional repeatability and shorter setup times.

Precision and efficiency

Thanks to automation of key machining cycles and simultaneous two-axis turning, the EASY NC-500 guarantees high accuracy and shorter production time. Functions such as metric, inch, module and D.P. threading have been simplified to parameter input – the machine executes the process automatically.

Applications

The conventional lathe with NC control CORMAK EASY NC-500 is used in:

• small and medium-sized manufacturing plants producing single and small-batch components,
• maintenance and repair workshops where flexibility and quick retooling are required,
• technical schools and training centres – thanks to simplified operation and the possibility of learning machining and NC control fundamentals.

Standard equipment

• NC control system with 12.1” touchscreen
• Digital position readout (DRO)
• 4-position tool post
• Tool cooling system
• LED work area lighting
• Chip removal system with drawer
• 3-jaw lathe chuck
• Tailstock centre MT5

Optional equipment

• 4-jaw self-centring or independent chuck
• Fixed and travelling steady rest
• Quick-change tool post
• Collet chuck

Technical data

*Depending on version.

Choose precision and reliability – choose CORMAK EASY NC-500

If you are looking for a reliable lathe with NC control that combines intuitive operation with turning precision and production flexibility, the CORMAK EASY NC-500 is the perfect choice. Contact our technical advisor to learn more about available configurations!
